Huawei FusionServer Pro 1288H V5 User Manual

Silkscreen Indicator/
Button
Description
LOM port
connection
status
indicator
Each indicator shows the connection status of
an Ethernet LOM port.
● O: The network port is not in use or has
failed.
● Steady green: The network port is properly
connected.
NOTE
● The indicators correspond to two 10GE and two
GE network ports on the mainboard.
● The LOM has a standby power supply and will
not be powered o even if the service system is
powered
o. As long as the LOM ports are
properly connected to other working network
devices, the network ports will remain connected
and the indicators are on.

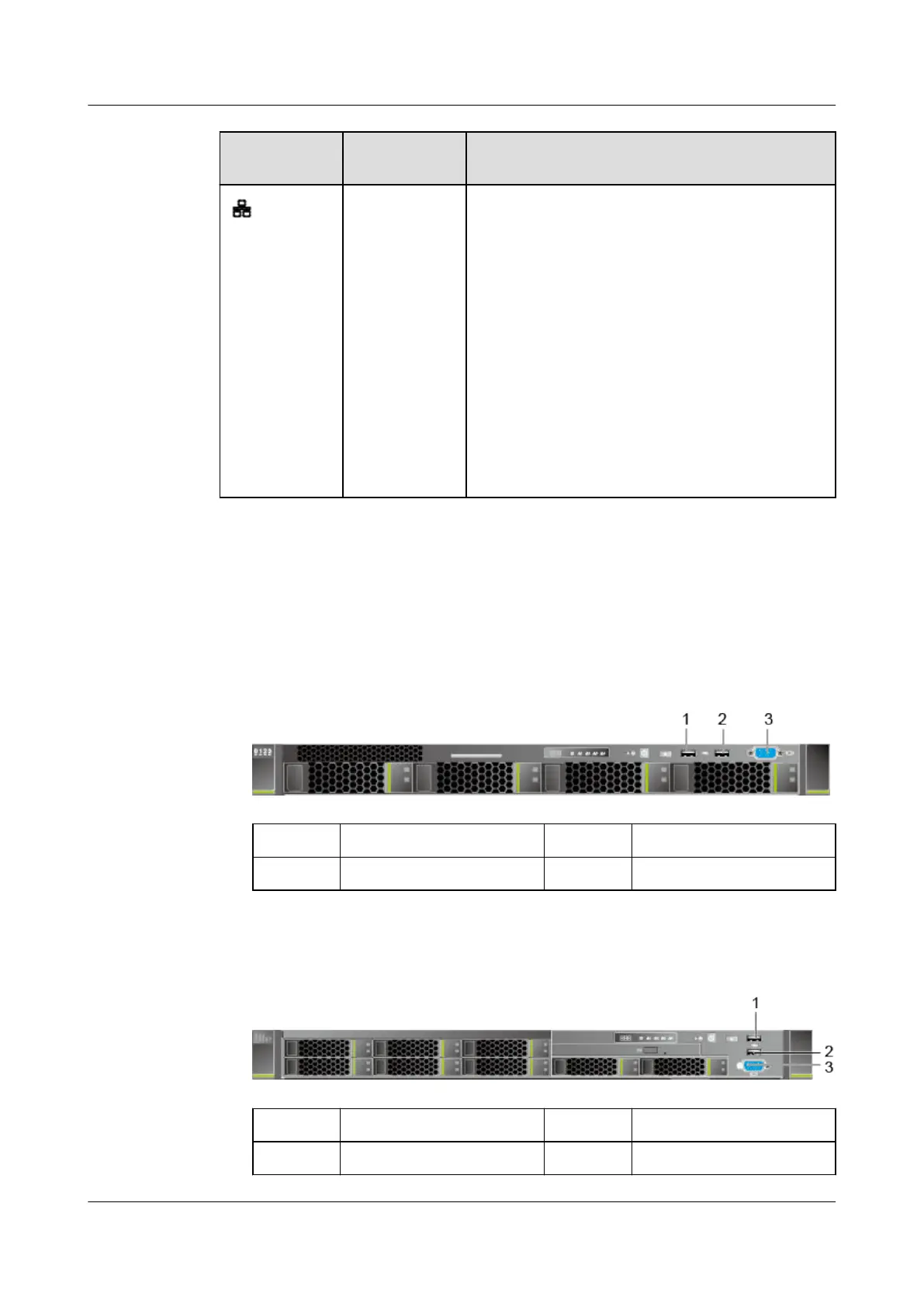

2.1.3 Ports
Port Positions
● 4 x 3.5" drive conguration
Figure 2-7 Ports on the front panel
1
USB 2.0 port 2 USB 3.0 port
3 VGA port - -
● 8 x 2.5" drive conguration
Figure 2-8 Ports on the front panel
1
USB 2.0 port 2 USB 3.0 port
3 VGA port - -
FusionServer Pro 1288H V5 Server
User Guide 2 Hardware Description
Issue 13 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 10

Huawei FusionServer Pro 1288H V5 Specifications

General

Processor	Intel Xeon Scalable processors
Memory	Up to 3 TB
Memory Slots	24 DDR4 DIMM slots
Storage	Supports up to 10 x 2.5-inch SAS/SATA/SSD drives or 4 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 10, 5, 50, 6, 60
Network	2 x GE + 2 x 10GE ports
Power Supply	1+1 redundant, hot-swappable PSUs
Form Factor	1U rack
