2. Connect the new SFP+ cable.
Remove the dust-proof cap on the port, and insert the cable connector into
the port. When you hear a "click" and the cable cannot be pulled out, the
connector is secured.

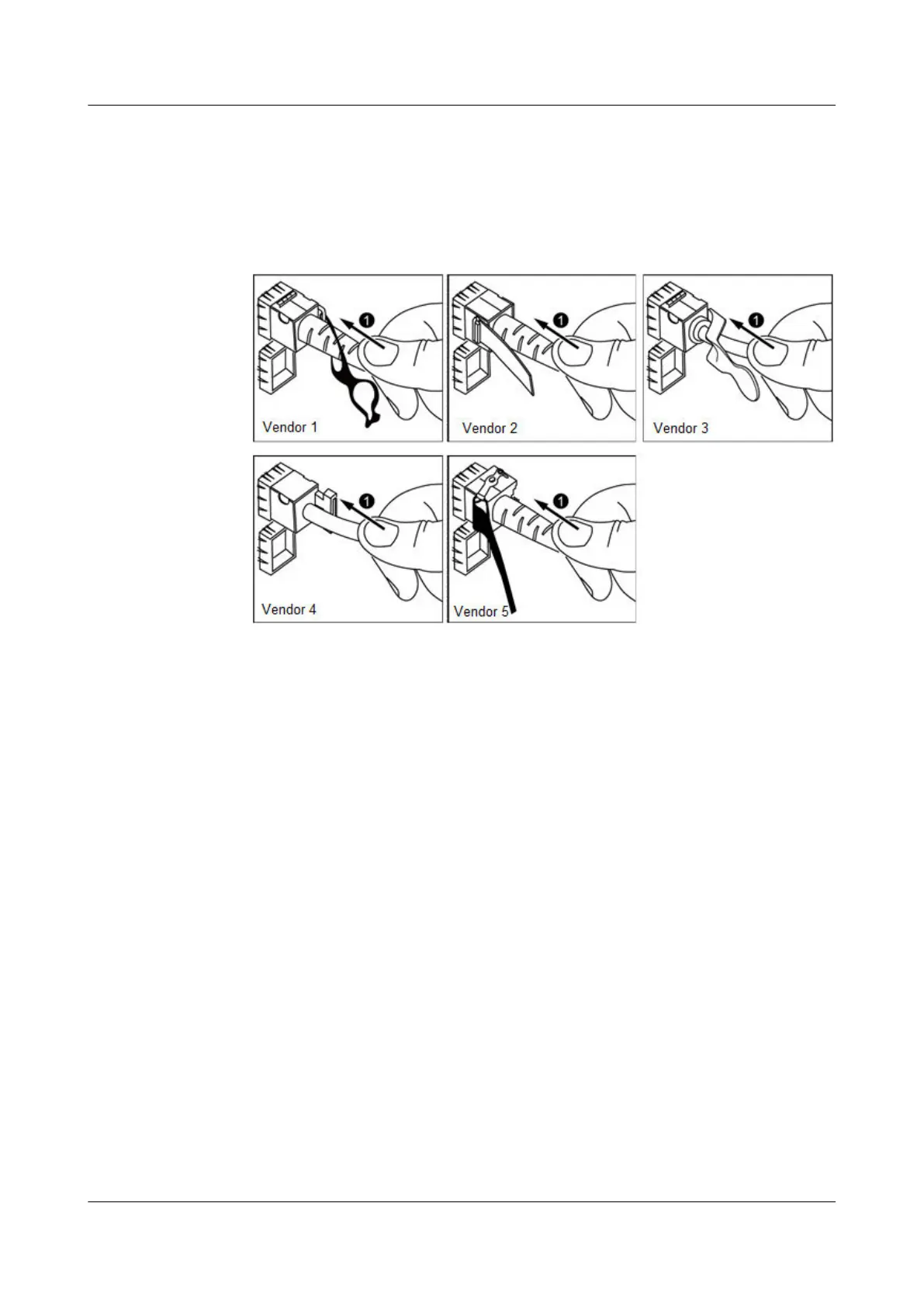

Figure 7-18 Connecting an SFP+ cable
Step 5 Check whether the new cable is properly connected.
Power on the device. Check whether the communication with the peer device is
normal by running the ping command.
● If yes, go to Step 7.
● If no, go to Step 6.
Step 6 If the peer device cannot be pinged, check whether the cable is intact or the
connector is securely connected.
● If yes, contact Huawei technical support.
● If no, replace the cable or insert the connector securely, and go to Step 5.
Step 7 Bind the new optical cable.
Bind the new optical cable in the same way as the existing optical cables. You can
also remove all existing cable ties and bind all optical cables again if necessary.
----End
7.2.6.5 Connecting an IB Cable
Procedure
Step 1 Determine the model of the new cable.
You can use an optical cable or a QSFP+ cable.
FusionServer Pro 1288H V5 Server
User Guide 7 Installation and Conguration
Issue 13 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 75

Huawei FusionServer Pro 1288H V5 Specifications

General

Processor	Intel Xeon Scalable processors
Memory	Up to 3 TB
Memory Slots	24 DDR4 DIMM slots
Storage	Supports up to 10 x 2.5-inch SAS/SATA/SSD drives or 4 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 10, 5, 50, 6, 60
Network	2 x GE + 2 x 10GE ports
Power Supply	1+1 redundant, hot-swappable PSUs
Form Factor	1U rack
