Huawei FusionServer Pro 1288H V5 User Manual

● 10 x 2.5" drive conguration

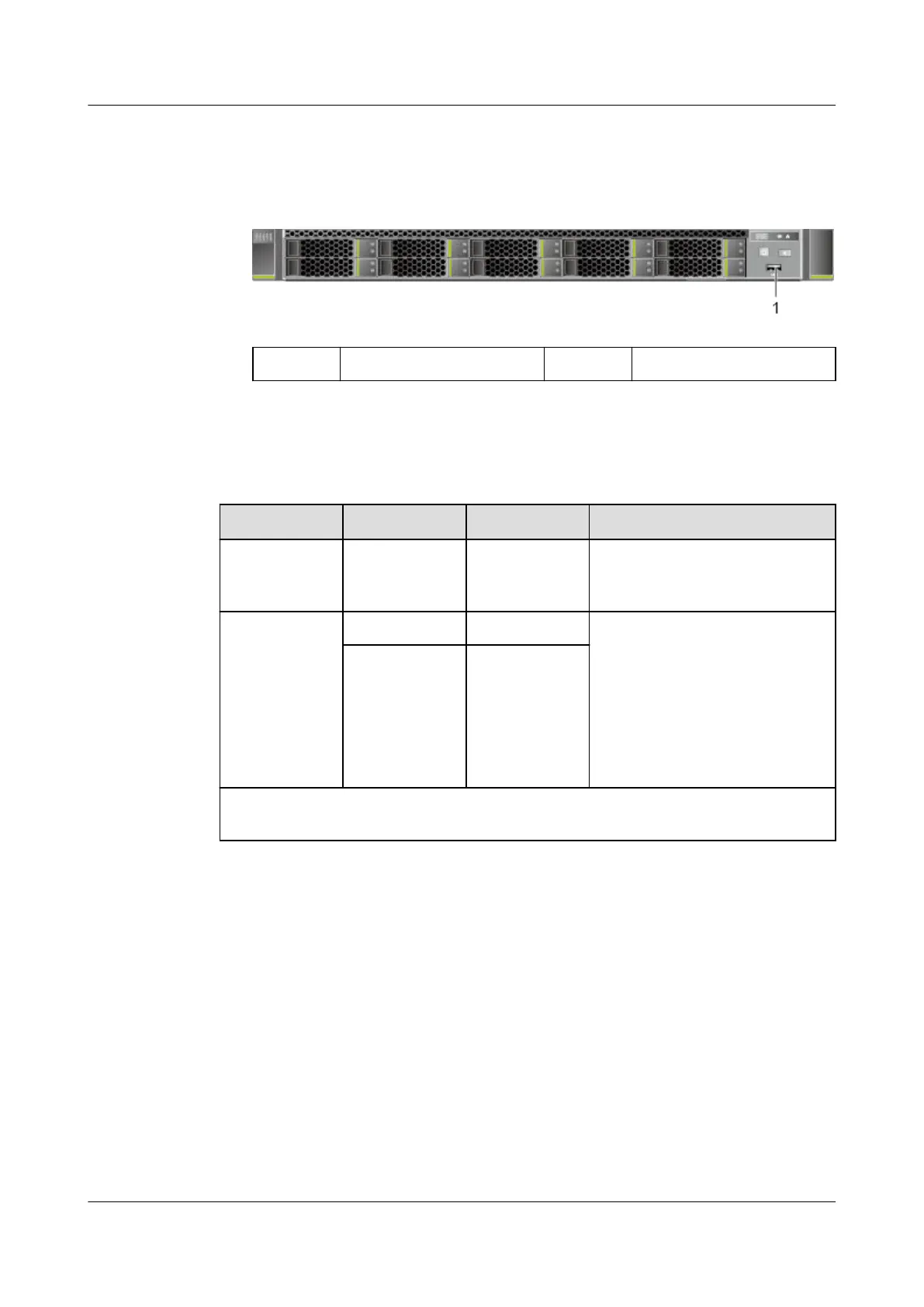

Figure 2-9 Ports on the front panel
1 USB 3.0 port - -
Port Description
Table 2-2 Ports on the front panel
Port Type
Quantity
Note
Description
VGA port DB15 1 Used to connect a display
terminal, such as a monitor or
KVM.
USB port USB 2.0 1 Used to connect to a USB
device.
NOTICE
Before connecting an external
USB device, check that the USB
device functions properly. The
server may operate abnormally if
an abnormal USB device is
connected.
USB 3.0 1
Note: The number of ports varies depending on server conguration. This table
lists the maximum number of ports in dierent congurations.
2.2 Rear Panel
FusionServer Pro 1288H V5 Server
User Guide 2 Hardware Description
Issue 13 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 11

Huawei FusionServer Pro 1288H V5 Specifications

General

Processor	Intel Xeon Scalable processors
Memory	Up to 3 TB
Memory Slots	24 DDR4 DIMM slots
Storage	Supports up to 10 x 2.5-inch SAS/SATA/SSD drives or 4 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 10, 5, 50, 6, 60
Network	2 x GE + 2 x 10GE ports
Power Supply	1+1 redundant, hot-swappable PSUs
Form Factor	1U rack
