Huawei FusionServer Pro 1288H V5 User Manual

7.2.5.2 Installing the Server on the Ball Bearing Rail Kit
Before installing the server, ensure that the ball bearing rail kit is properly
installed. For details, see 7.2.4.3 Installing the Ball Bearing Rail Kit.
Procedure
Step 1 Install the server.
NO TICE
At least two people are required to move the device. Otherwise, personal injury or
device damage may occur.
1. Pull out the inner rails as far as they will go.

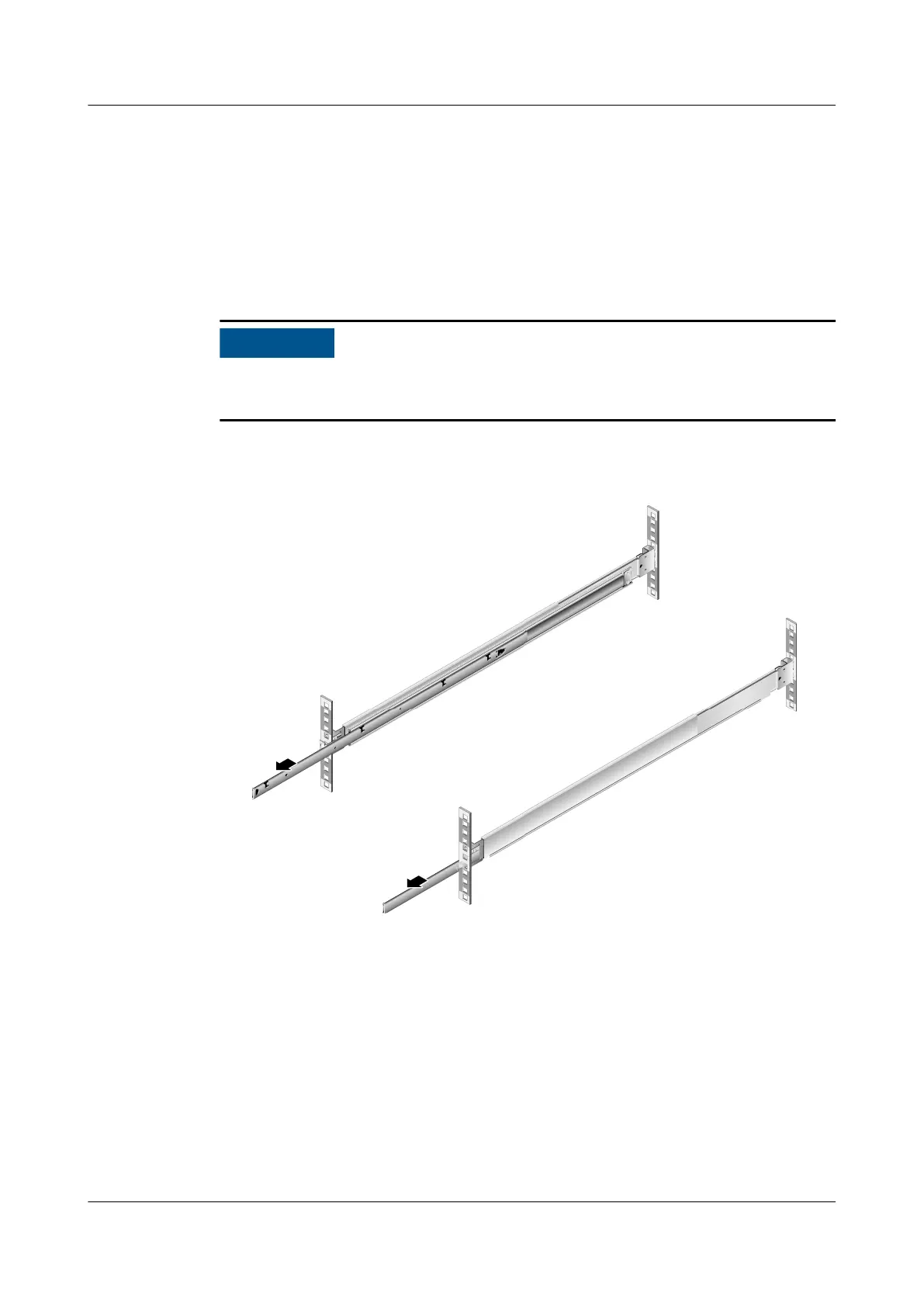

Figure 7-9 Pulling out inner rails
2. Lift the server (at least two people are required), align the positioning pins on
the server with the holes on the inner guide rails, and push the server in the
arrow direction until the locking pins engage. See (1) and (2) in Figure 7-10.
FusionServer Pro 1288H V5 Server
User Guide 7 Installation and Conguration
Issue 13 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 65

Huawei FusionServer Pro 1288H V5 Specifications

General

Processor	Intel Xeon Scalable processors
Memory	Up to 3 TB
Memory Slots	24 DDR4 DIMM slots
Storage	Supports up to 10 x 2.5-inch SAS/SATA/SSD drives or 4 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 10, 5, 50, 6, 60
Network	2 x GE + 2 x 10GE ports
Power Supply	1+1 redundant, hot-swappable PSUs
Form Factor	1U rack
