Conguration Maximum Front Drives Drive Management
Mode
● a: A RAID controller card or PCH can be used to manage common drives. The
PCH supports only SATA drives.
● b: The drives can be managed only by the SP460C-M (Broadcom SAS3516)
RAID controller card.
● Contact your local Huawei sales representative or use the Intelligent
Computing Compatibility Checker to determine the components to be
used.

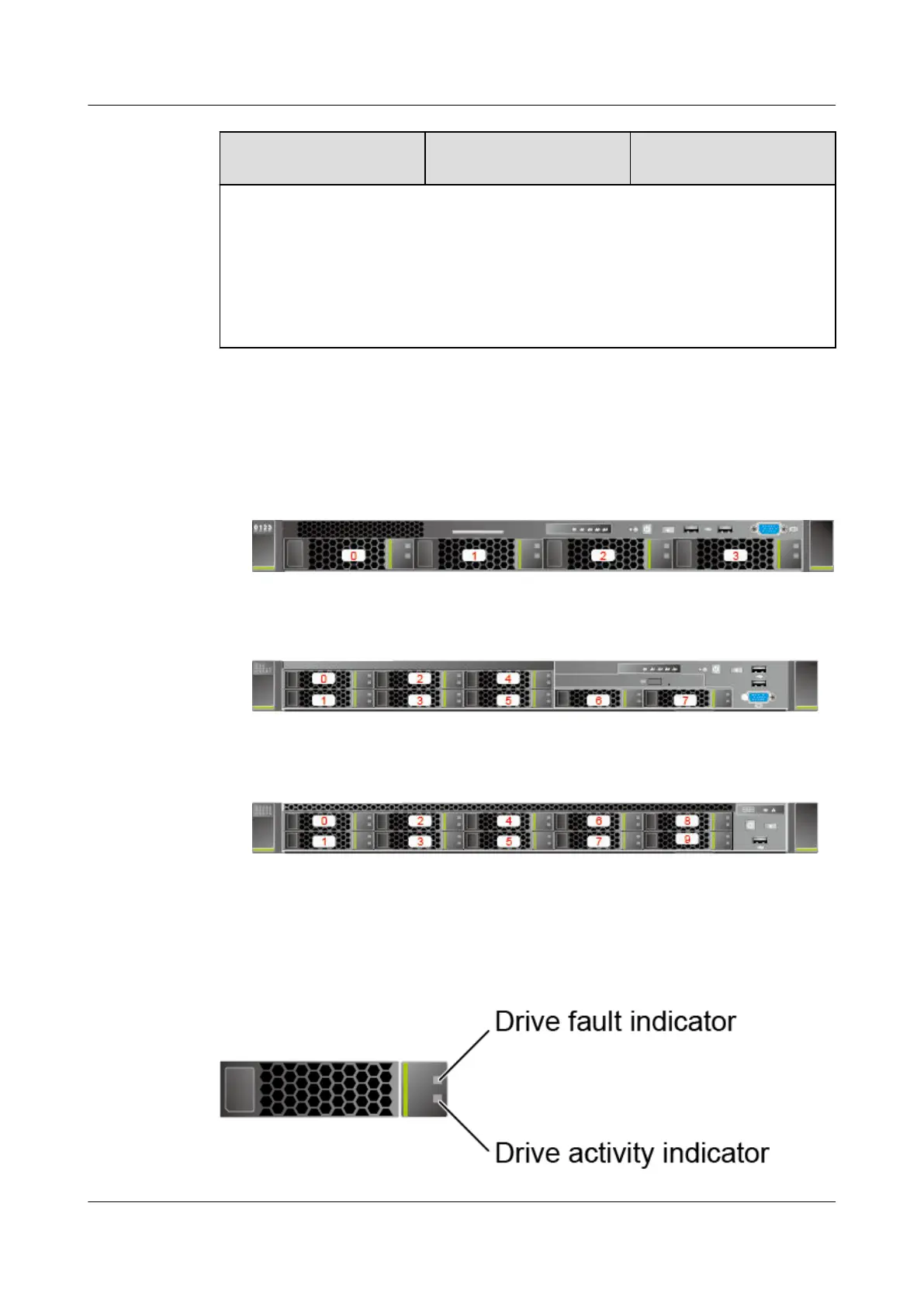

2.5.2 Drive Numbering
● 4 x 3.5" drive conguration
Figure 2-18 Drive numbering
● 8 x 2.5" drive conguration
Figure 2-19 Drive numbering
● 10 x 2.5" drive conguration
Figure 2-20 Drive numbering
2.5.3 Drive Indicators
SAS/SATA Drive Indicators
Figure 2-21 SAS/SATA drive indicators
FusionServer Pro 1288H V5 Server
User Guide 2 Hardware Description
Issue 13 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 26

Huawei FusionServer Pro 1288H V5 Specifications

General

Processor	Intel Xeon Scalable processors
Memory	Up to 3 TB
Memory Slots	24 DDR4 DIMM slots
Storage	Supports up to 10 x 2.5-inch SAS/SATA/SSD drives or 4 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 10, 5, 50, 6, 60
Network	2 x GE + 2 x 10GE ports
Power Supply	1+1 redundant, hot-swappable PSUs
Form Factor	1U rack
