4.1 CX7E1FANA Fan Module
Product Support
Table 4-1 lists the switch chassis matching a CX7E1FANA fan module.
Table 4-1 Switch chassis matching a CX7E1FANA fan module
Fan Module Name Product Support
CX7E1FANA fan
module
Supported only in the S6700-24-EI and S6700-48-EI
Appearance

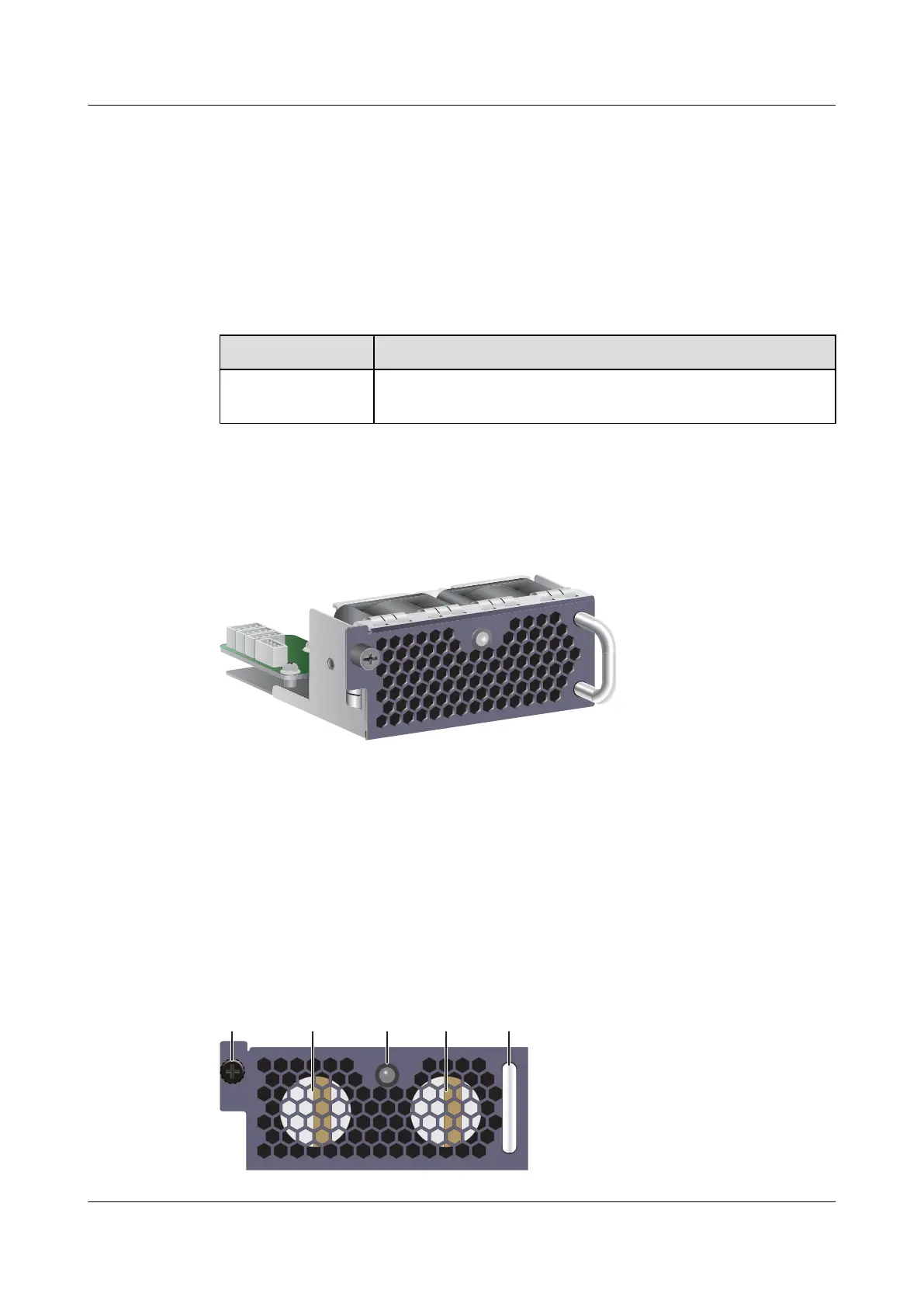

Figure 4-1 shows the appearance of a CX7E1FANA fan module.
Figure 4-1 Appearance of a CX7E1FANA fan module
Function
A CX7E1FANA fan module has two fans to cool the chassis. A CX7E1FANA fan module is
hot swappable.
Panel Description
Figure 4-2 shows the panel of a CX7E1FANA fan module.
Figure 4-2 Panel of a CX7E1FANA fan module
S6700 Series Ethernet Switches
Hardware Description
4 Fan Modules
