6.1 Ground Cable
Appearance and Structure

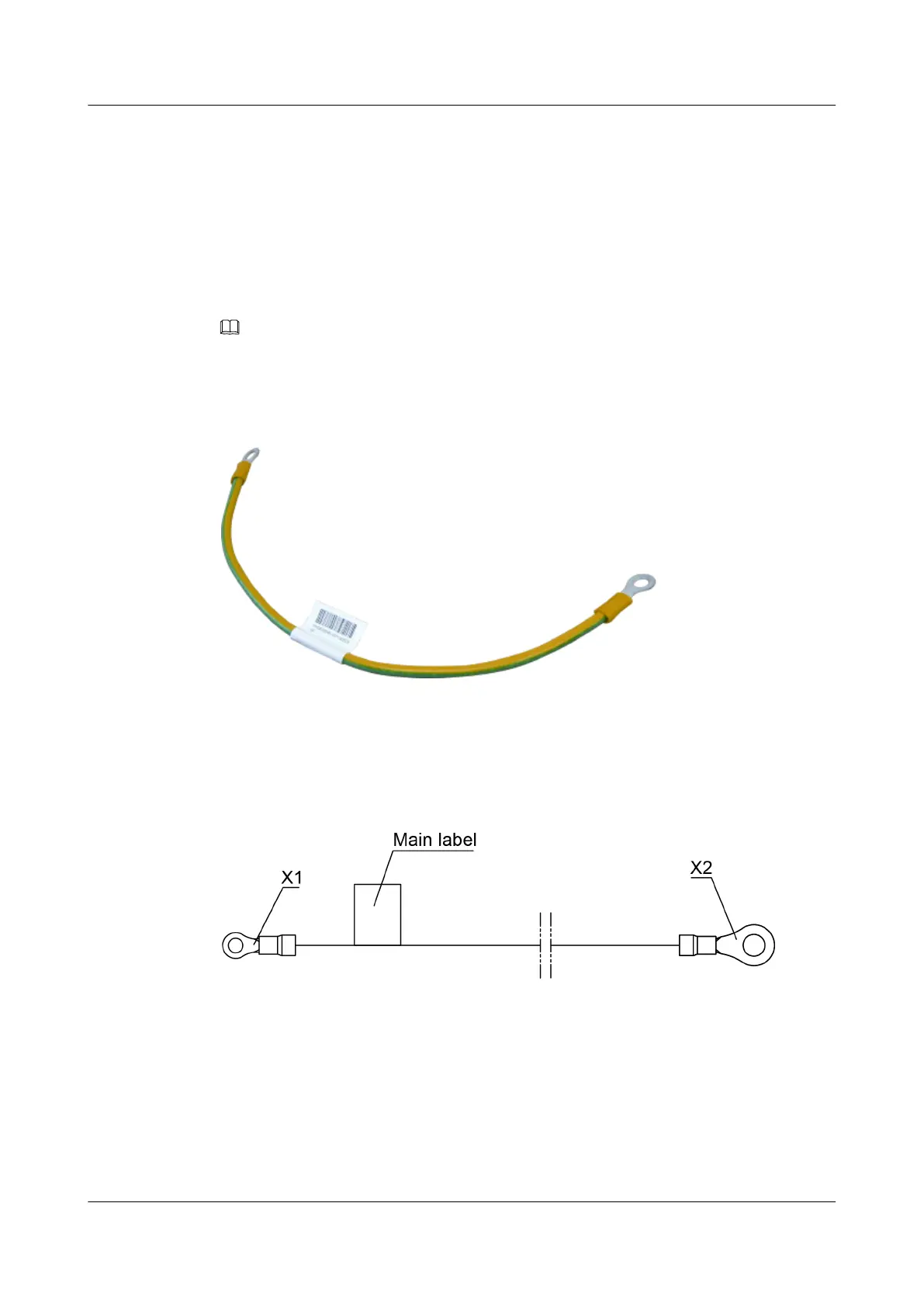

Figure 6-1 shows the appearance of a typical ground cable.
NOTE
Other types of ground cables are similar to the example shown in the figure, except for their cross-sectional
area, size of the cable lugs, and cable length.
Figure 6-1 Appearance of a ground cable
Figure 6-2 shows the structure of a ground cable.
Figure 6-2 Structure of a ground cable
Pin Assignments
Table 6-1 lists the pin assignments of a ground cable.
S6700 Series Ethernet Switches
Hardware Description
6 Cables
Issue 12 (2015-07-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
65
