5.1 Introduction
5.1.1 Card Classification
Table 5-1 lists the card supported by the S6720-EI series switches.
Table 5-1 Card supported by the S6720-EI series switches
Card Type Card Name Card Description Hot Swap
Rear card ES5D21Q04Q01 4-port 40 Gig QSFP+ interface card
(used in S6720-EI)
Supported
5.2 ES5D21Q04Q01 (4-Port 40 Gig QSFP+ Rear Interface
Card, Used in S6720-EI Series)
5.2.1 Introduction
The ES5D21Q04Q01 provides four 40GE QSFP+ optical ports to implement data access and
line-speed switching.
The ES5D21Q04Q01 can be installed in the rear card slot on the S6720-EI chassis.

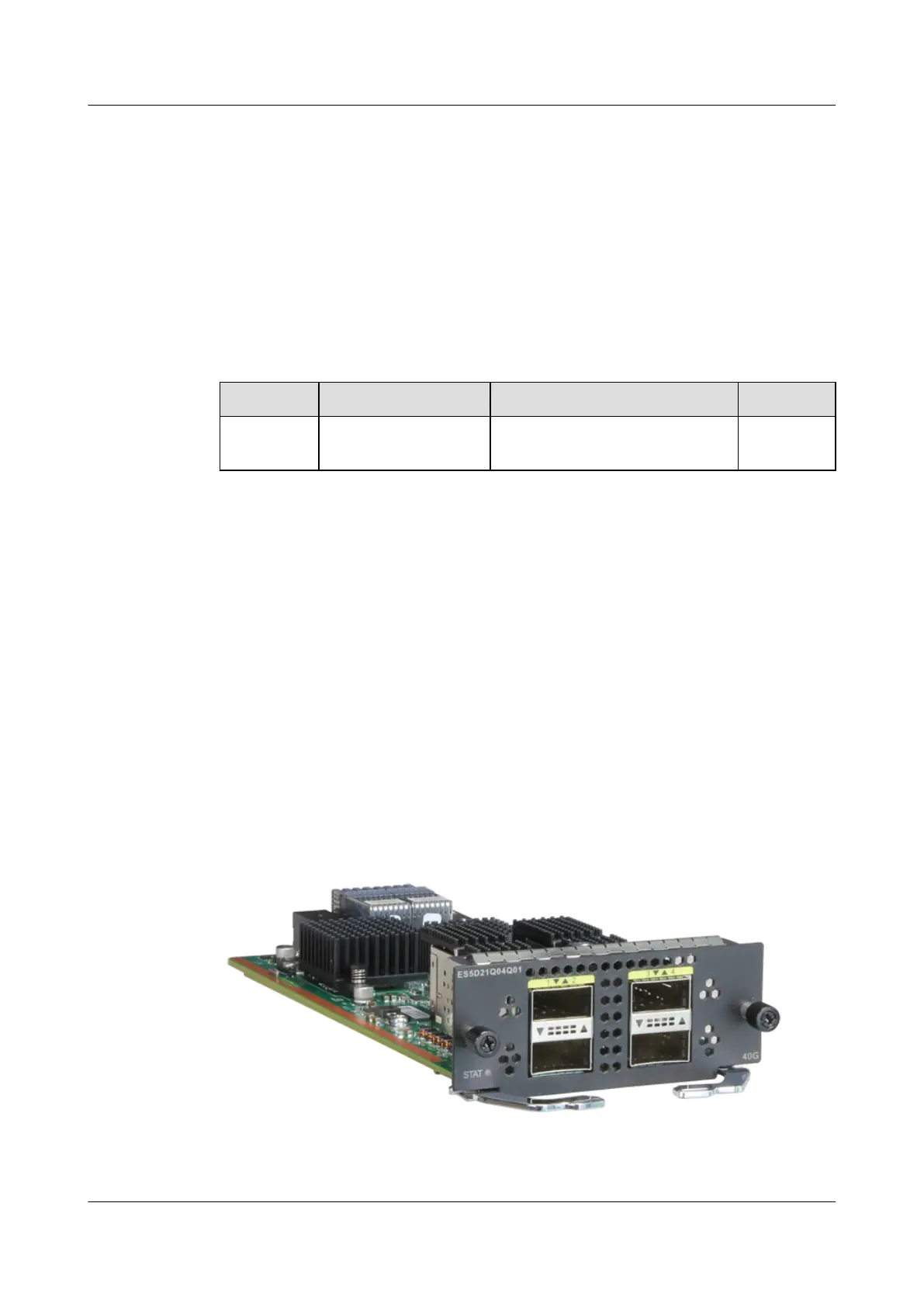

Figure 5-1 shows the appearance of the ES5D21Q04Q01.
Figure 5-1 Appearance of the ES5D21Q04Q01
