2.3 Appearance
Appearance and Ports

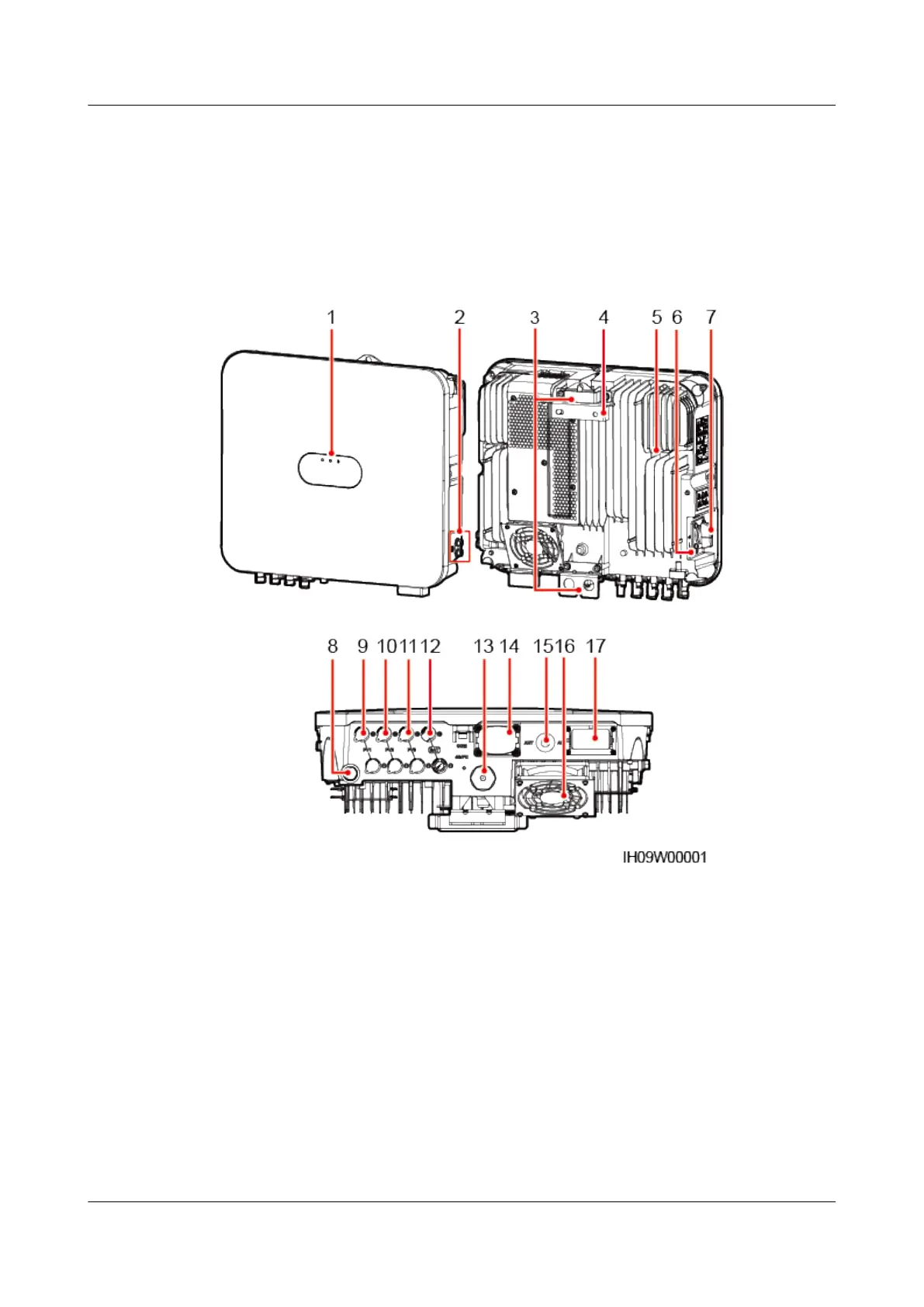

Figure 2-6 Appearance
(1) LED indicators (2) Ground screws
(3) Hanging kits (4) Mounting bracket
(5) Heat sink
(6) DC switch locking screw hole
[1]
(7) DC switch (DC SWITCH) (8) Ventilation valve
(9) DC input terminal (PV1+/PV1–) (10) DC input terminal (PV2+/PV2–)
(11) DC input terminal (PV3+/PV3–) (12) Battery terminal (BAT+/BAT–)
(13) Smart Dongle port (4G/FE) (14) Communications port (COM)
(15) Antenna port (ANT)
(16) Fan
[2]
