Table 5-5 Cable connections
Cable Pin Denition To
1 3 485B2 Power
meter
485B
4 485A2 485A
2 3 485B2 Batter
y
485B
4 485A2 485A
5 GND Enable-
6 EN+ Enable+
Step 2 Connect the signal cable connector to the COM port.

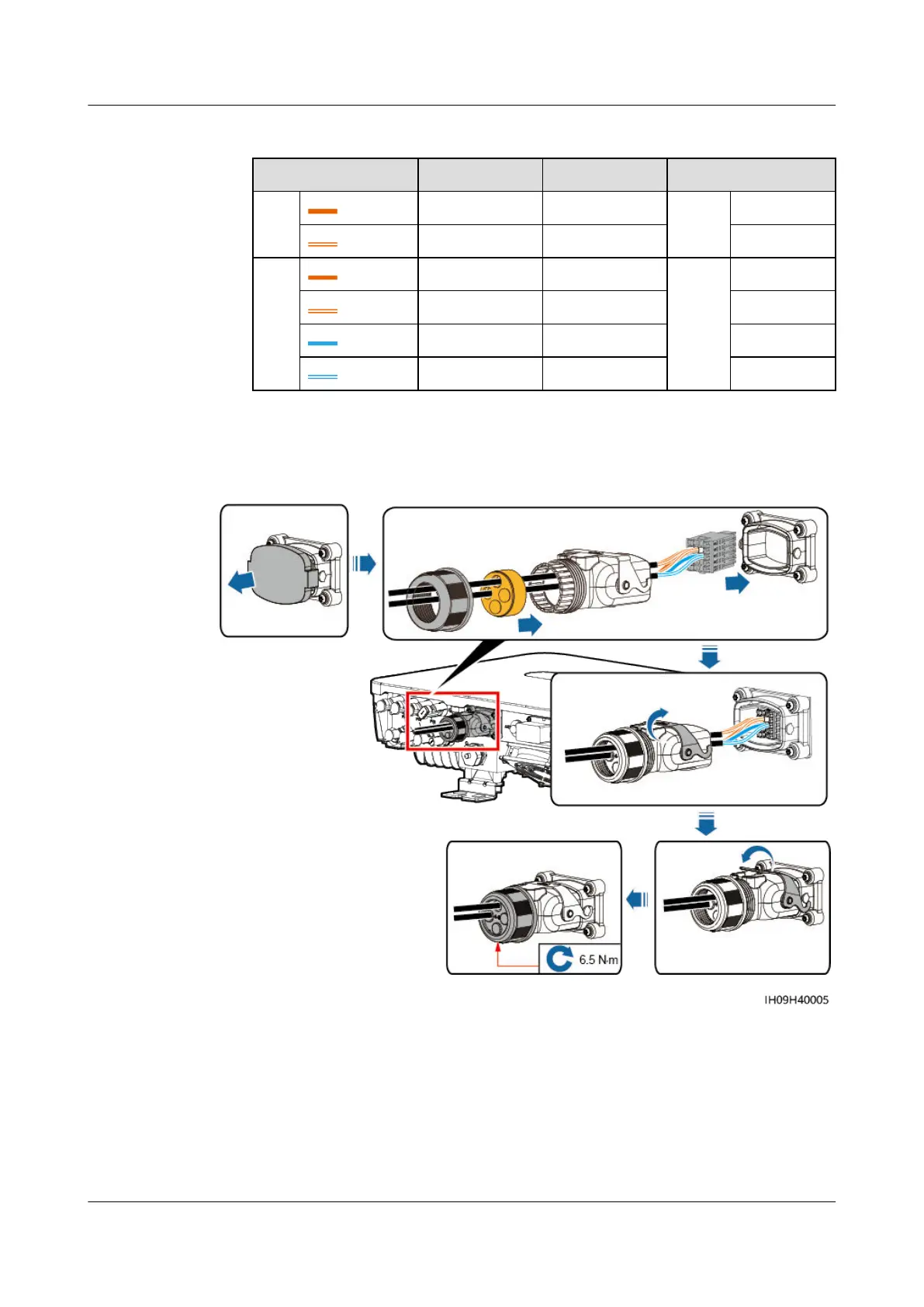

Figure 5-31 Securing the signal cable connector
----End
5.7.5 Connecting Rapid Shutdown Signal Cables
Procedure
Step 1 Connect the signal cable to the signal cable connector block.
SUN2000-(8K, 10K)-LC0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-09-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 68
