Requirements for Installing the Signal Cable Connector Block
When you install a connector block in the inverter, align the top of the connector
block with the outer edge of the COM port, as shown in the following gure.

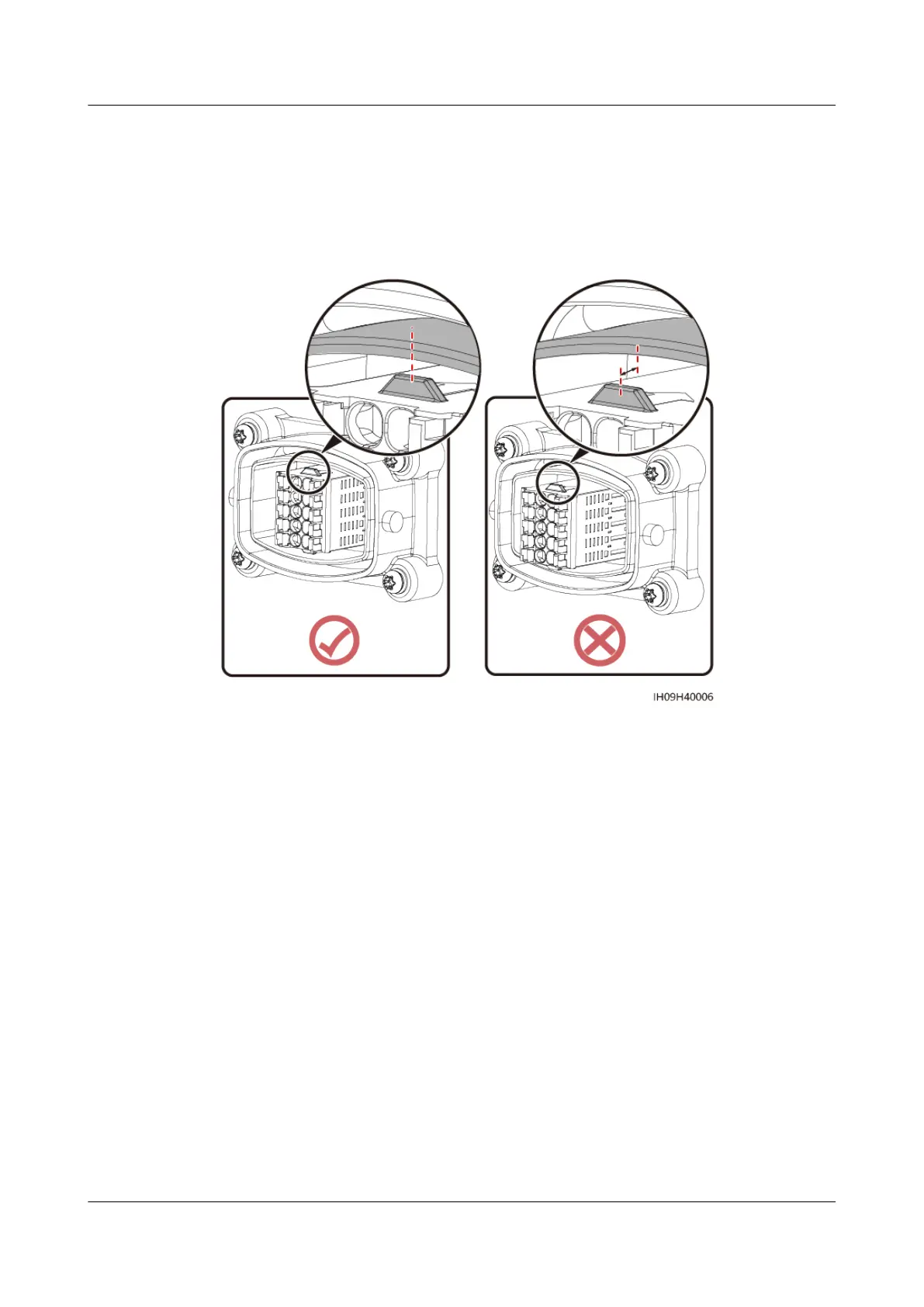

Figure 5-17 Installing the connector block
5.7.1 Connecting RS485 Communications Cables (Inverter
Cascading)
Procedure
Step 1 Connect the signal cable to the signal cable connector block.
