● Stay away from the equipment when preparing cables to prevent cable scraps
from entering the equipment. Cable scraps may cause sparks and result in
personal injury and equipment damage.
● When routing PV cables, it is recommended that the positive and negative PV
string cables be routed in dierent pipes to prevent cable damage and short
circuits caused by improper operations during construction.
The cable colors shown in the electrical connection diagrams provided in this section are for
reference only. Select cables in accordance with local cable specications (green-and-yellow
cables are only used for protective earthing).
5.2 Preparing Cables

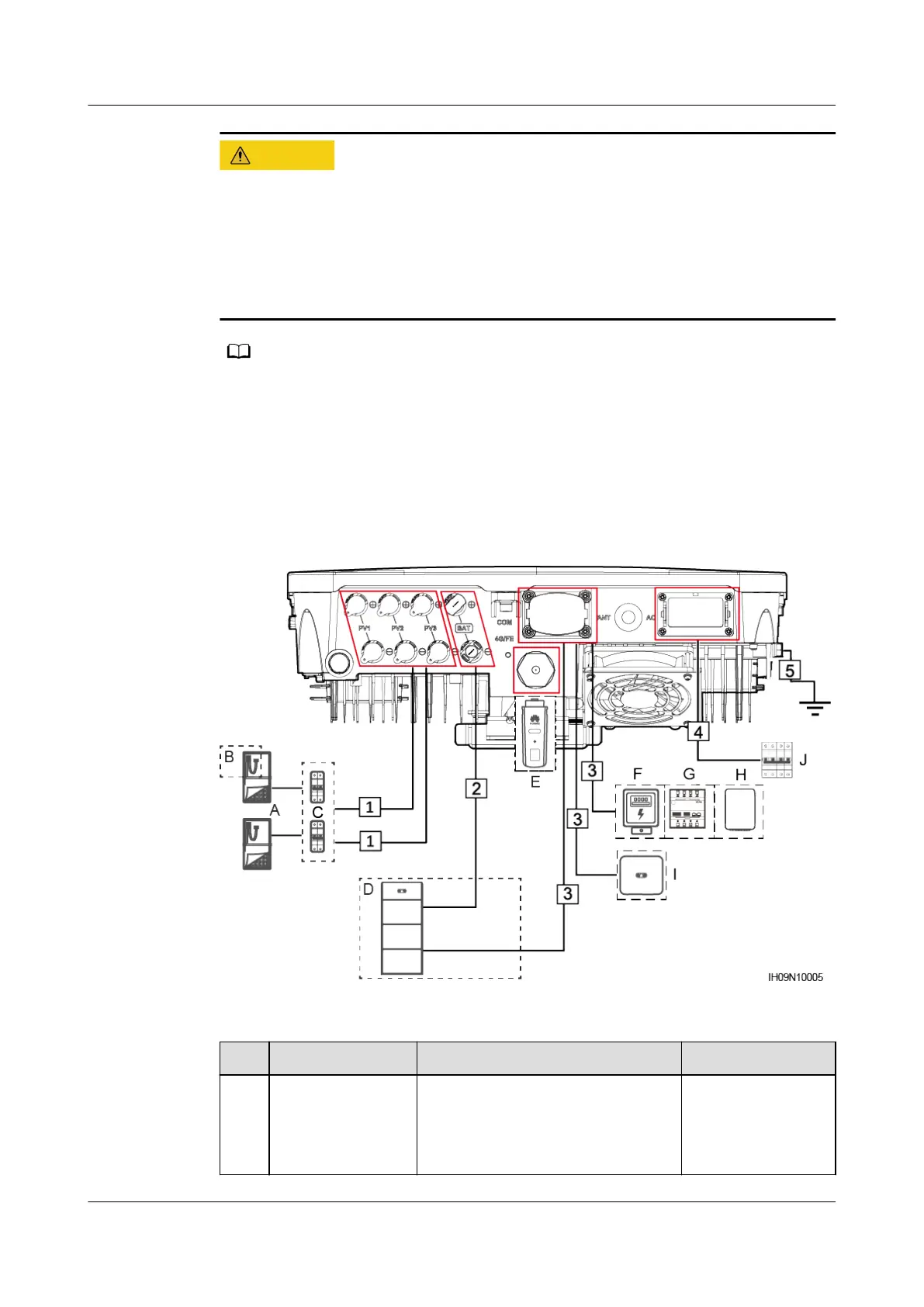

Figure 5-1 SUN2000 cable connections (the components in dashed boxes are
optional)
Table 5-1 Component description
No.
Component Description Source
A PV module ● A PV string consists of PV
modules connected in series.
● The inverter supports three PV
string inputs.
[1]
Prepared by the
customer
SUN2000-(8K, 10K)-LC0 Series
User Manual 5 Electrical Connections
Issue 01 (2023-09-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 38
