Huawei WIFI AX2 User Manual

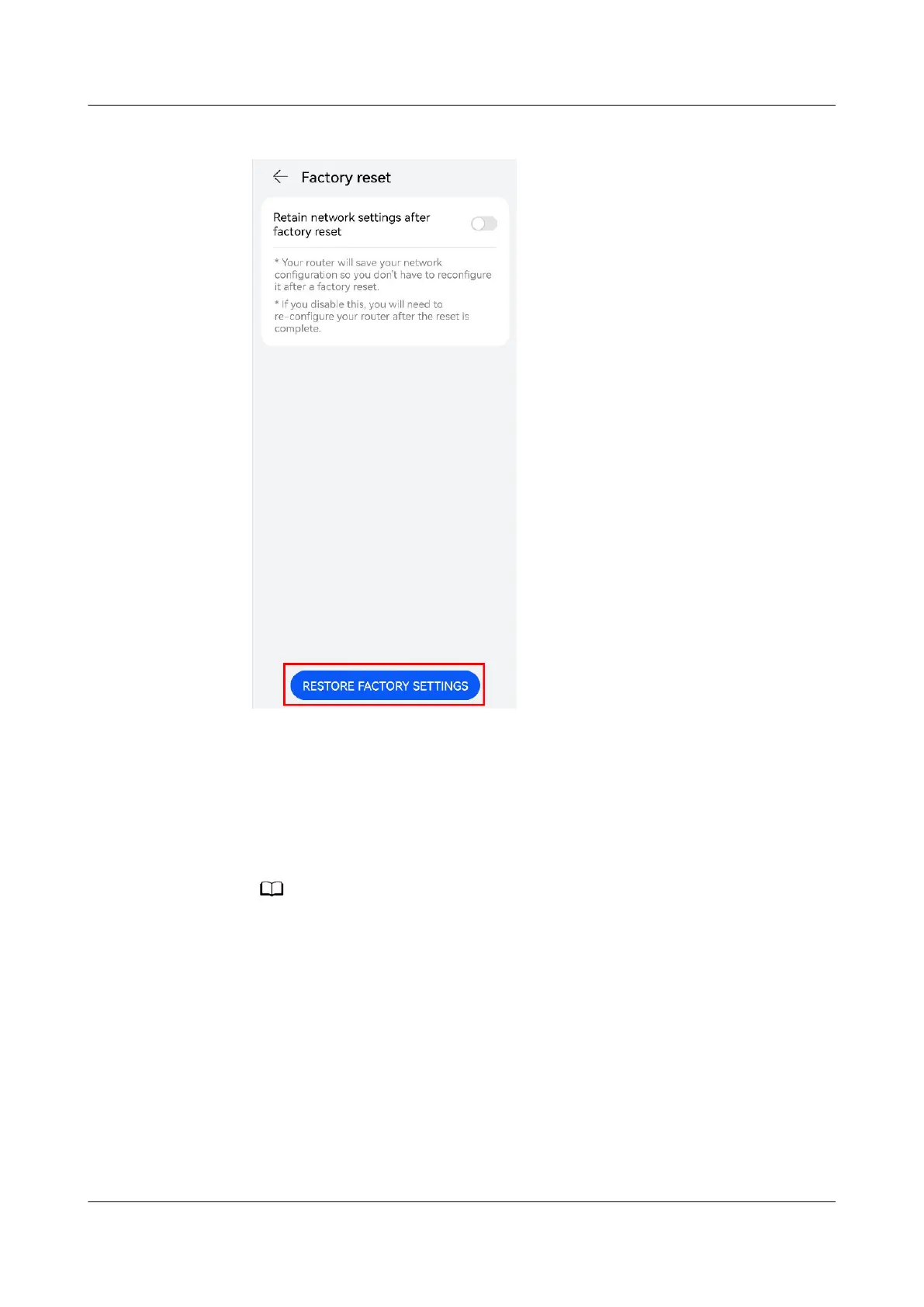

3. Then click RESTORE FACTORY SETTING.
Method 3: through the web-based management page
1. Connect your computer to the router's Wi-Fi (or to the router's gray network
port (LAN port) using an Ethernet cable). In the browser address bar, enter
the default IP address to log in to the router's web-based management
page(check the nameplate at the bottom of the router for the default IP
address).
NO TE
For routers that feature self-adaptive ports, you do not need to distinguish between
WAN and LAN ports.
2. Go to More Functions > System Settings > Backup & Restore, and click
Factory Reset.
HUAWEI_WIFI_AX2
HUAWEI_WIFI_AX2
21 How do I restore my HUAWEI router to its
factory settings
Issue 01 (2022-02-18) Copyright © Huawei Technologies Co., Ltd. 73

Huawei WIFI AX2 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Antennas quantity	4
Internal memory	128 MB
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	1 A
Power source type	AC, DC
Power consumption (typical)	12 W
Security algorithms	SSID, WPA3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product type	Tabletop router
Product color	White
Ethernet LAN (RJ-45) ports	3
Mobile network generation	-

Weight and Dimensions

Depth	163.5 mm
Width	257.6 mm
Height	29 mm
Weight	216 g
