ASSEMBLY
12 – English

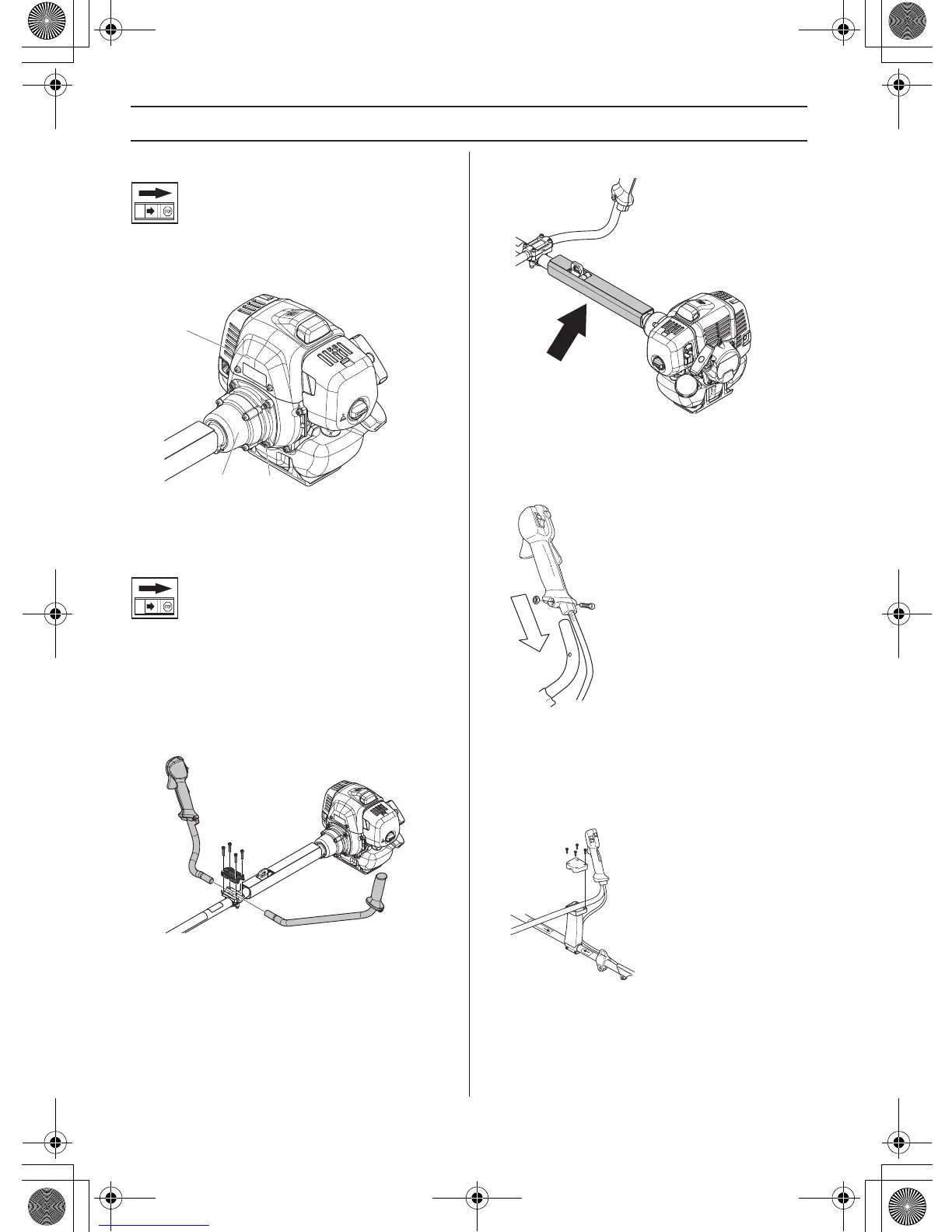

Fitting the main body
Connect the engine (A) to the tube (B) with four screws
(C).
Assembling the handlebar and
throttle
531RS 541RS
• Fit the handlebar in the handlebar clamp on the shaft
using four screws.
• Fit the protective sleeve as shown in the diagram.
541RST
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diag
ram).
• Align the screw hole in the throttle handle with the hole
in the handlebar.
•
Refit the screw in the hole in the rear of the throttle
handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Fit the mounting components as shown.
• Loosely tighten the four screws.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that
the machine is in a comfortable working position when
it hangs from the harness.
B
A
C
H1159210-30, GBESPT Page 12 Friday, October 6, 2017 1:00 PM
