Husqvarna 236R User Manual

English –
5
WHA T IS WHA
T?

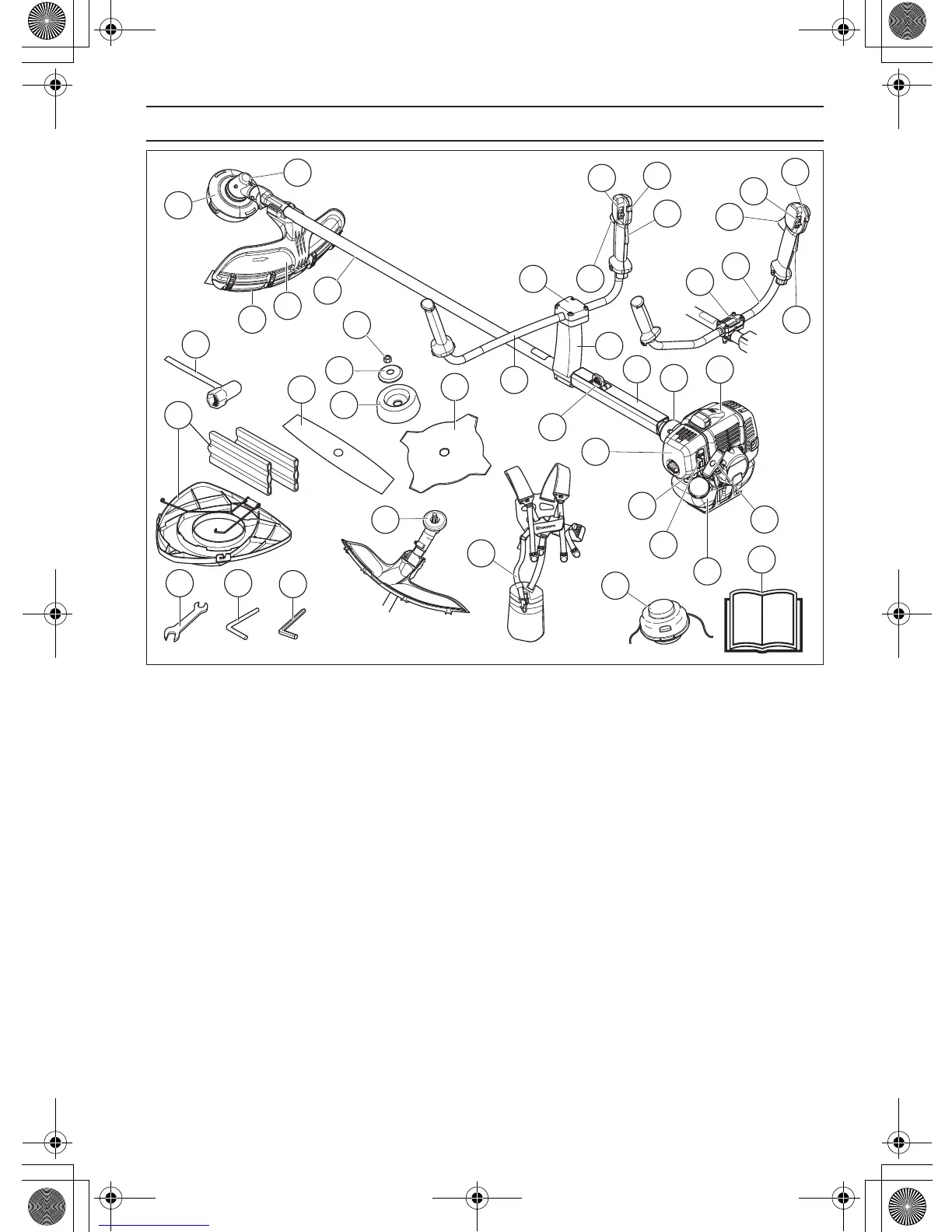

What is what on the brush cutter?
28
18
19
20
21
23
24
25
31
32
27
26
1
33
4
30
2
5
9
8
7
6
16
22
9
6
7
8
3
11
10
12
13
14
15
29
17
34
36
35
37
1 Blade (Not all markets)
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Start throttle button
7 Stop switch
8 Throttle trigger
9 Throttle trigger lockout
10 Suspension ring
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air filter cover
16 Handlebar
17 Clutch cover
18 Locking nut
19 Support flange
20 Support cup
21 Drive disc
22 Handlebar clamp
23 Operator’s manual
24 Transport guard (Not all markets)
25 Socket spanner
26 Spanner
27 Locking pin
28 Harness
29 Air purge
30 Guard extension
31 Trimmer head (Not all markets)
32 Allen key
33 2-teeth blade (Not all markets)
34 Handlebar bracket (RST)
35 Bracket (RST)
36 Handlebar (RST)
37 Protective sleeve
H1159210-30, GBESPT Page 5 Friday, October 6, 2017 1:00 PM

Husqvarna 236R Specifications

General

Weight	7.2 kg
Fuel Tank Volume	0.5 l
Sound Power Level, Guaranteed (LWA)	107 dB(A)
Power output	0.8 kW
Engine Type	2-stroke
Fuel Tank Capacity	0.5 l
Shaft Type	Straight
Sound Power Level	107 dB(A)
