ASSEMBLY
English – 15
opposite direction to the direction of rotation (Caution!
left-hand thread).

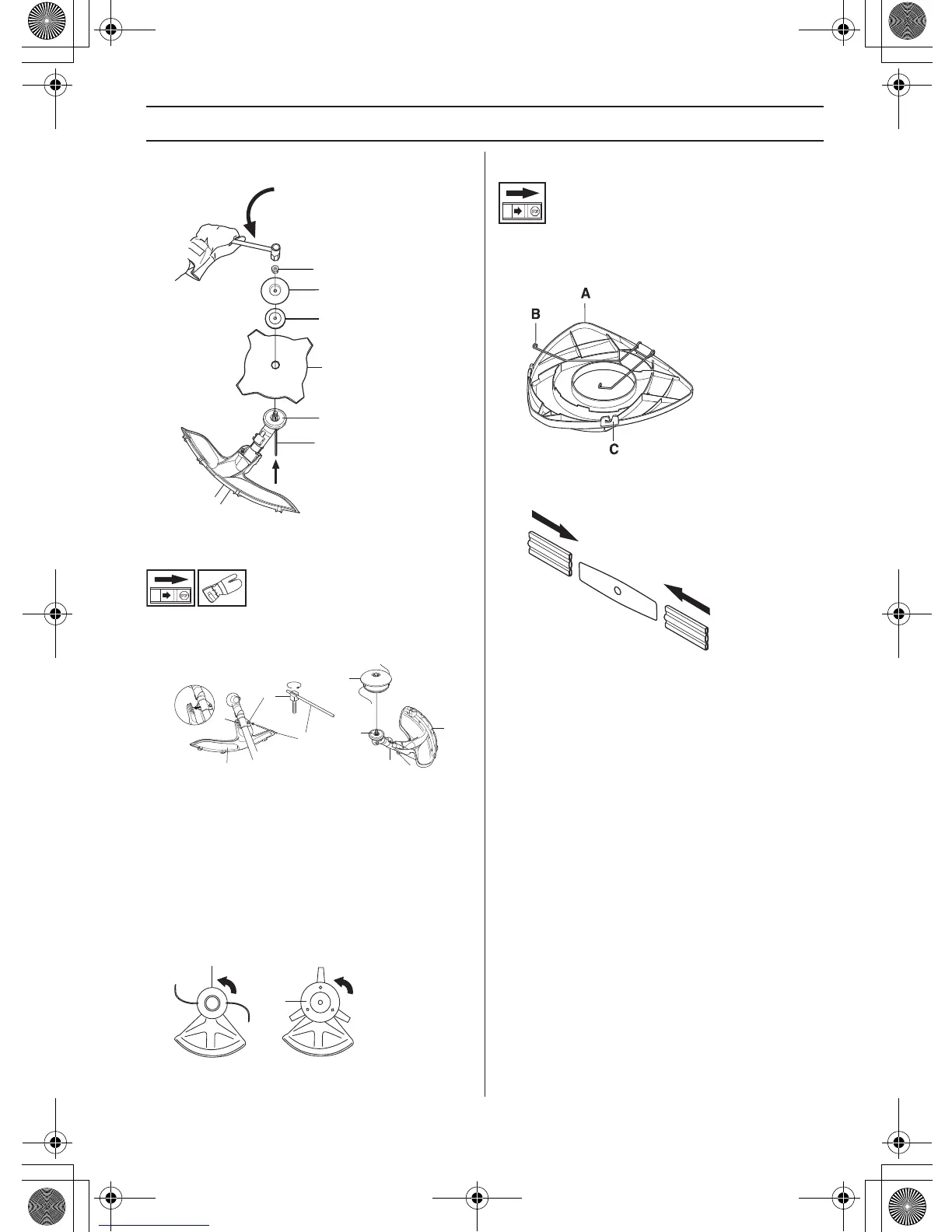

Fitting the trimmer guard and trimmer
head
• Fit the correct trimmer guard (A) for use with the
trimmer head. CAUTION! Ensure that the guard
extension is fitted.
• Hook the trimmer guard/combination guard onto the
fitting on the shaft and secure with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the output shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) counter
cloc
kwise
.
• To dismantle, follow the instructions in the reverse
order
.
Fitting the transport guard
• Insert the blade in the transport guard (A).
• Snap the two fasteners (B) into the slots (C) to secure
the transpor
t guard.
2-teeth blade
• Insert the blade in the transport guard.
G
E
D
F
B
C
B
A
M
L
H
A
L
C
M
H
H
H1159210-30, GBESPT Page 15 Friday, October 6, 2017 1:00 PM

Husqvarna 236R Specifications

General

Weight	7.2 kg
Fuel Tank Volume	0.5 l
Sound Power Level, Guaranteed (LWA)	107 dB(A)
Power output	0.8 kW
Engine Type	2-stroke
Fuel Tank Capacity	0.5 l
Shaft Type	Straight
Sound Power Level	107 dB(A)
