ASSEMBLY
English – 13
• Tighten the screws.

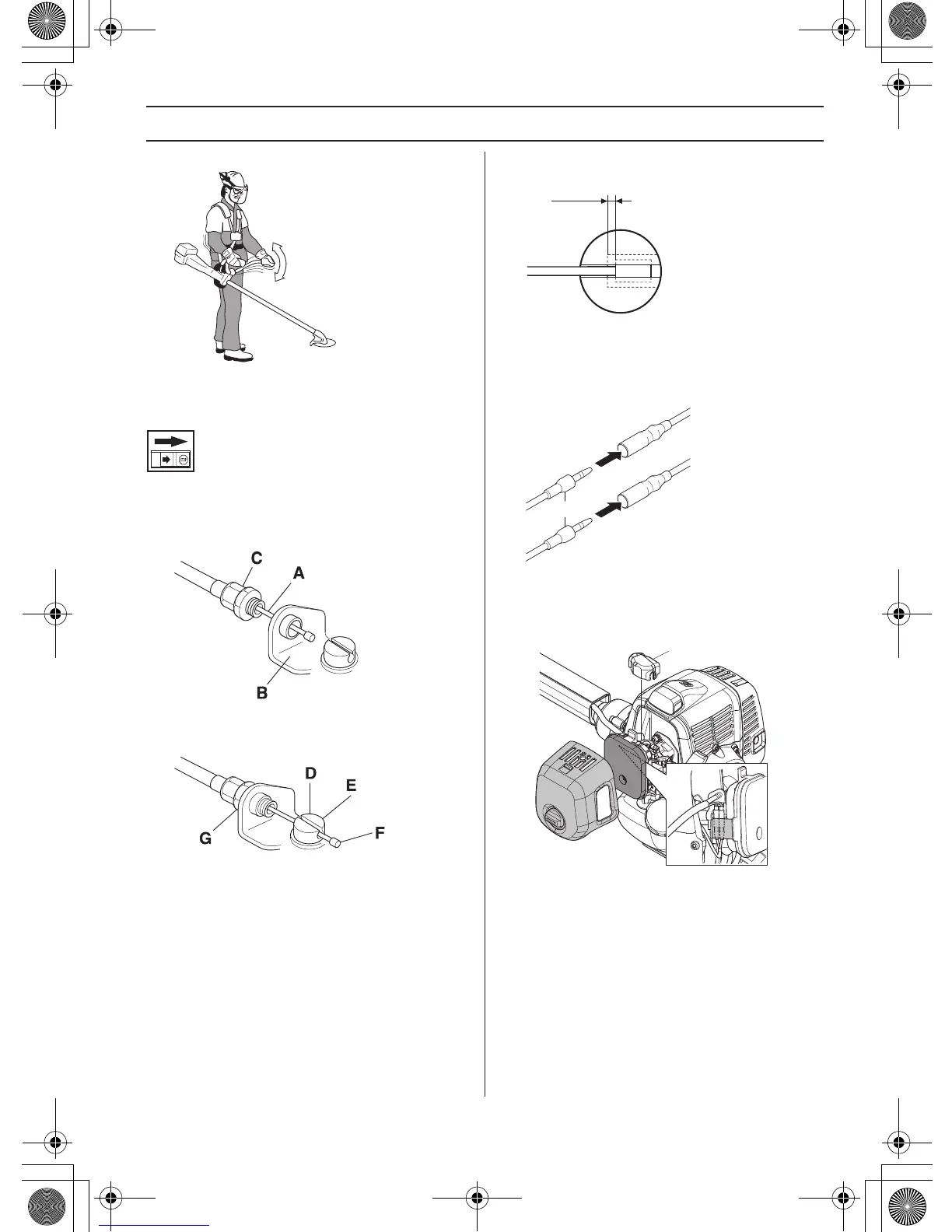

Connecting throttle cable and
stop switch wires
1 Remove the air filter cover.
2 Insert the throttle cable (A) through the carburettor
brac
ket (B), then screw the cable adjuster sleeve (C)
into the carburettor bracket fully.
3 Position the slotted fitting (D) on the carburettor so the
recessed hole (E) for the cab
le lug (F) is away from the
cable adjuster sleeve.
4 Rotate the carburettor throttle cam and slip the throttle
cab
le through the slot in the slotted fitting, making
sure the cable lug drops into the recessed hole.
5 Operate the throttle trigger a few times to make sure
that it wor
ks correctly.
6 Adjust the cable adjuster sleeve so the stop on the
carburettor throttle cam just contacts the throttle stop
and the cable position keep 1-2 mm play between the
cable lug and the slotted fitting when the throttle
trigger is fully depressed.
7 When the throttle cable is adjusted correctly, tighten
the loc
king n
ut (G).
8 Plug the stop switch wires (H) into the matching
connectors from the engine. Note that wire polarity is
not important.
9 Insert the short circuit cable into the groove on the
filter holder
.
10
Fit the dust cover (J).
11 Refit the air filter cover.
