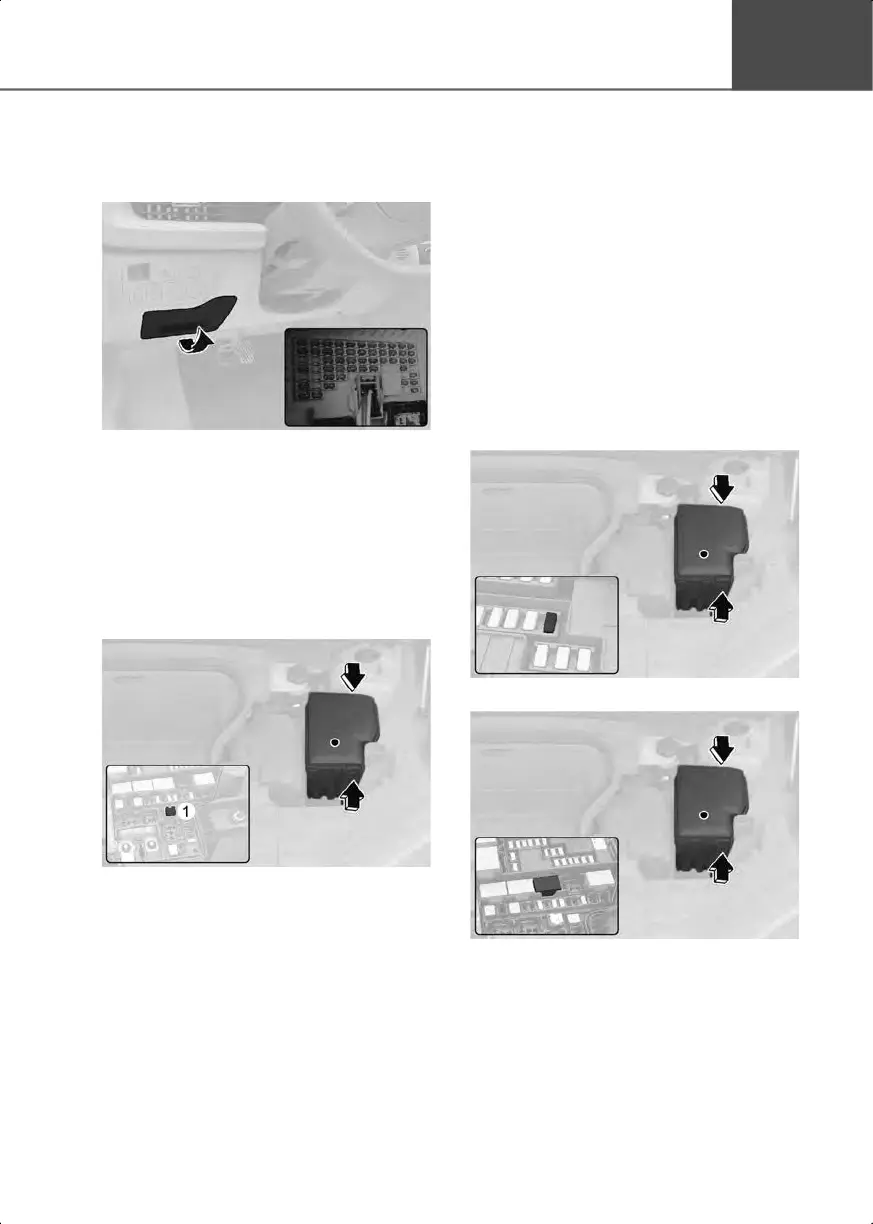

Instrument Panel Fuse
Replacement
Driver’s side
B9005701
1. Turn off the vehicle.
2. Turn off all other switches.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the
fuse panel cover to locate the
suspected fuse location.
Motor compartment
B9005702
5. Pull the suspected fuse straight out.
Use the removal tool (1) provided in the
motor compartment fuses panel.
6.Check the removed fuse and replace it
if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the motor compartment fuse panel).
7. Push in a new fuse of the same rating,
and make sure it fits tightly in the clips.
If it is not tight, contact consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the headlights or other electrical
components do not work and the fuses
are undamaged, check the fuse panel in
the motor compartment.
Motor Compartment Panel
Fuse Replacement
Blade fuse/Cartridge fuse
Blade type fuse
B9005901
Cartridge type fuse
B9005902
1. Turn off the vehicle.
2. Turn off all other switches.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse and replace it
if it is blown. To remove or insert the
fuse, use the fuse puller in the motor
compartment fuse panel.
