IBM BladeCenter HS22 User Manual

Chapter 2. Power, controls, and indicators
Use this information to view power features, turn on and turn off the blade server,
and view the functions of the controls and indicators.
Blade server controls and LEDs
Use this information for details about the controls and LEDs on the blade server.

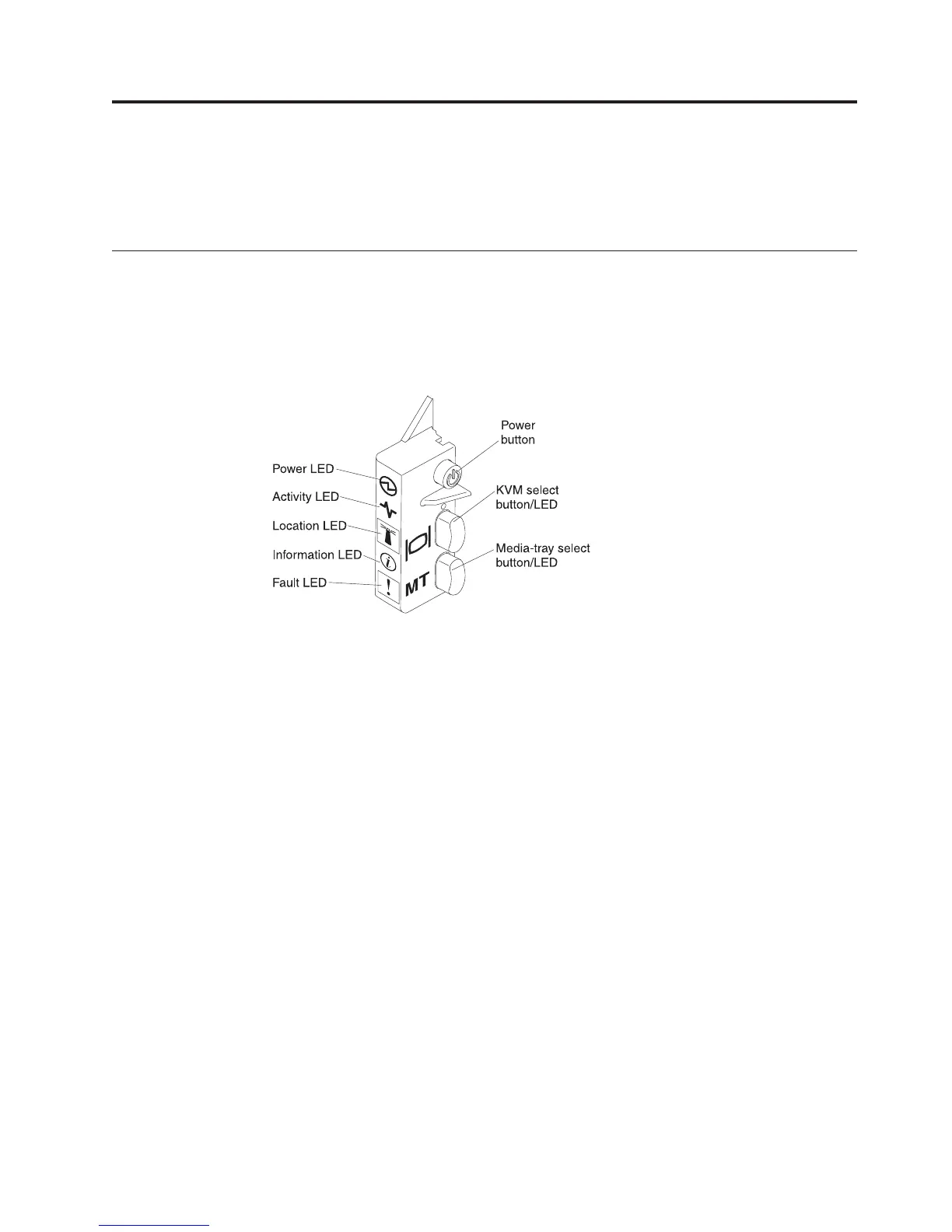

The following illustration identifies the buttons and information LEDs on the
blade-server control panel.
Power-on LED: This green LED indicates the power status of the blade server in
the following manner:
v Flashing rapidly: While the service processor in the blade server is initializing
and synchronizing with the management module, the power-on LED flashes
rapidly, and the power-control button on the blade server does not respond. This
process can take approximately two minutes after the blade server has been
installed. If the LED continues to flash rapidly, the blade server might not have
power permissions assigned to it through the Advanced Management Module,
the BladeCenter unit does not have enough power to turn on the blade server,
or the service processor (IMM) on the blade server is not communicating with
the Advanced Management Module.
v Flashing slowly: The blade server has power supplied and is ready to be turned
on.
v Lit continuously: The blade server has power and is turned on.
Activity LED: When this green LED is lit, it indicates that there is activity on the
external storage device or network.
Location LED: The system administrator can remotely turn on this blue LED to aid
in visually locating the blade server. When this LED is lit, the location LED on the
BladeCenter unit is also lit. The location LED can be turned off through the
Advanced-Management-Module Web interface or through IBM
®
Director Console.
For more information about the Advanced-Management-Module Web interface, see
http://www.ibm.com/systems/management/. For more information about IBM
®
Director, see the documentation on the IBM
®
Director CD that comes with the
© Copyright IBM Corp. 2010 15

IBM BladeCenter HS22 Specifications

General

Tcase	76.2 °C
Bus type	QPI
Stepping	B1
FSB Parity	No
Processor code	SLBZ8
Processor cache	12 MB
Processor cores	6
Processor model	E5649
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	12
Processor codename	Westmere EP
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	42.5 X 45 mm
Processor front side bus	1333 MHz
Processor boost frequency	2.93 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	SSE4.2
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
CPU multiplier (bus/core ratio)	19
Maximum number of SMP processors	2
Physical Address Extension (PAE)	40 bit
Memory types supported by processor	DDR3 800/1066/1333
Memory channels supported by processor	Triple
Memory bandwidth supported by processor (max)	32 GB/s
Maximum internal memory supported by processor	288 GB
HDD size	2.5 \
RAID levels	0, 1
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	0 GB
Maximum storage capacity	1 TB
Number of HDDs installed	0
Internal memory	12 GB
Memory clock speed	- MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	192 GB
Memory layout (slots x size)	3 x 4 GB
Graphics card	G200eV
Graphics card memory type	GDDR2
Networking features	Gigabit Ethernet
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible operating systems	Microsoft Windows RedHat, SUSE, VMware Oracle Solaris
Chassis type	Rack (1U)
Processor ARK ID	52581
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Depth	446 mm
Width	245 mm
Height	29 mm
Weight	5400 g
