IBM BladeCenter HS22 User Manual

Removing a horizontal-compact-form-factor expansion card
Use these instructions to remove a compact-form-factor expansion card from the
blade server.

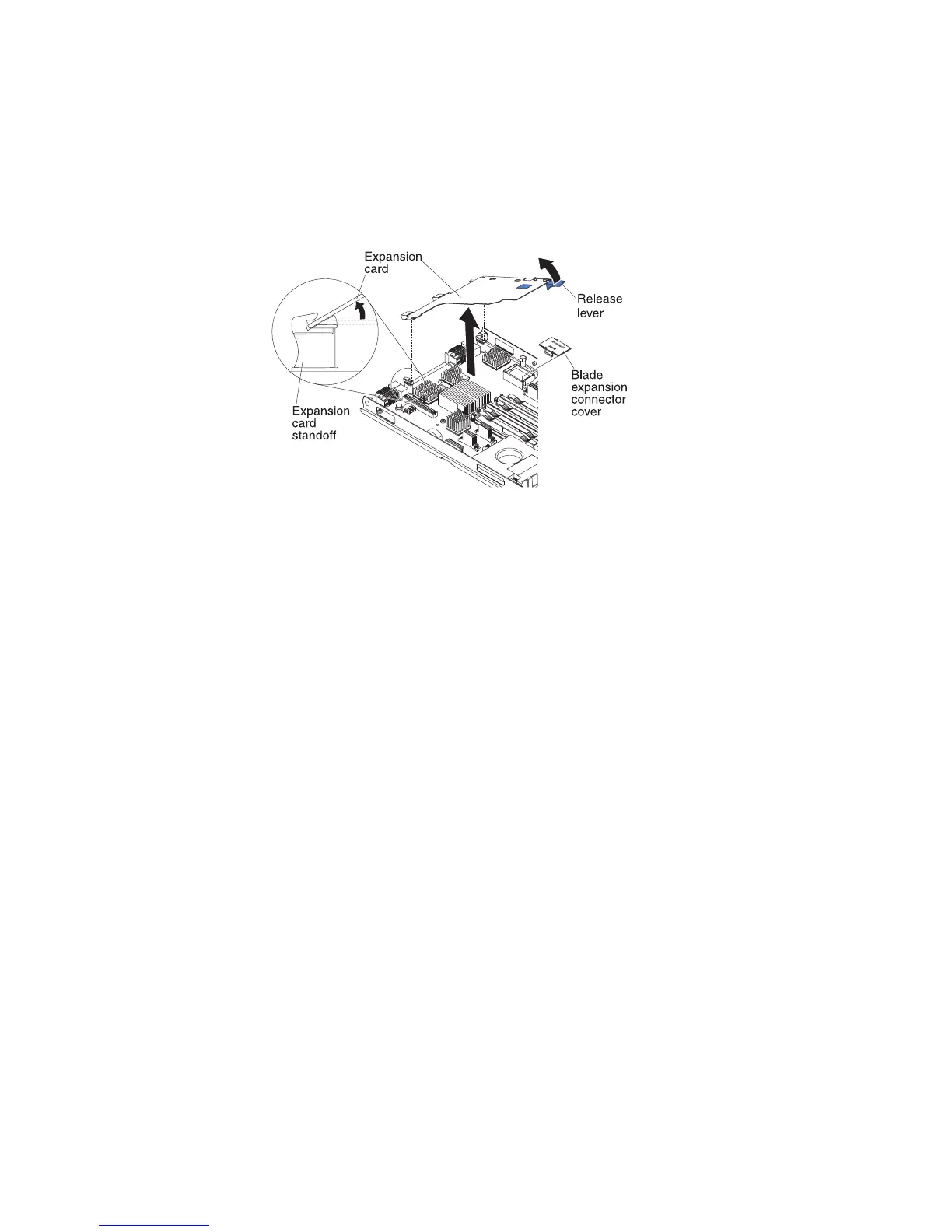

The following illustration shows how to remove a horizontal-compact-form-factor
(CFFh) expansion card.
To remove a CFFh expansion card, complete the following steps:
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 21.
2. If the blade server is installed in a BladeCenter unit, remove it (see “Removing
the blade server from the BladeCenter unit” on page 23 for instructions).
3. Carefully lay the blade server on a flat, static-protective surface.
4. Open the blade server cover (see “Removing the blade server cover” on page
24 for instructions).
5. Locate the CFFh expansion card. The CFFh is installed into the blade expansion
connector (see “Blade server connectors” on page 19).
6. Use your fingers to hold the edge of the CFFh expansion card where it
connects to the blade expansion connector; then, lift up on the card.
7. Pull the card away from the expansion-card standoff.
Chapter 3. Installing options 41

IBM BladeCenter HS22 Specifications

General

Tcase	76.2 °C
Bus type	QPI
Stepping	B1
FSB Parity	No
Processor code	SLBZ8
Processor cache	12 MB
Processor cores	6
Processor model	E5649
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	12
Processor codename	Westmere EP
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	42.5 X 45 mm
Processor front side bus	1333 MHz
Processor boost frequency	2.93 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	SSE4.2
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
CPU multiplier (bus/core ratio)	19
Maximum number of SMP processors	2
Physical Address Extension (PAE)	40 bit
Memory types supported by processor	DDR3 800/1066/1333
Memory channels supported by processor	Triple
Memory bandwidth supported by processor (max)	32 GB/s
Maximum internal memory supported by processor	288 GB
HDD size	2.5 \
RAID levels	0, 1
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	0 GB
Maximum storage capacity	1 TB
Number of HDDs installed	0
Internal memory	12 GB
Memory clock speed	- MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	192 GB
Memory layout (slots x size)	3 x 4 GB
Graphics card	G200eV
Graphics card memory type	GDDR2
Networking features	Gigabit Ethernet
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible operating systems	Microsoft Windows RedHat, SUSE, VMware Oracle Solaris
Chassis type	Rack (1U)
Processor ARK ID	52581
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Depth	446 mm
Width	245 mm
Height	29 mm
Weight	5400 g
