Removing the blade server cover
Use these instructions to open the blade server cover.

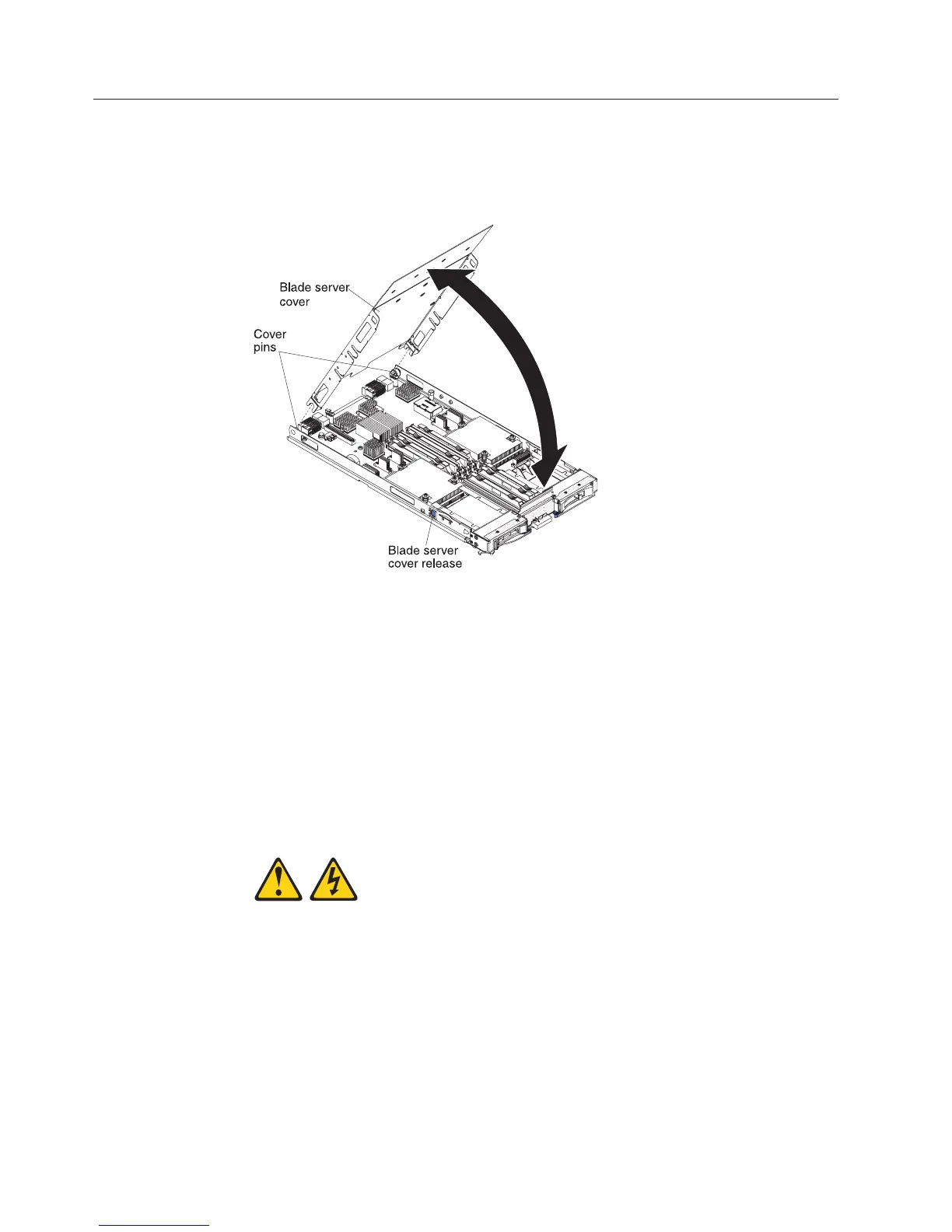

The following illustration shows how to open the cover on the blade server.
To open the blade server cover, complete the following steps.
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 21.
2. If the blade server is installed in a BladeCenter unit, remove it (see “Removing
the blade server from the BladeCenter unit” on page 23 for instructions).
3. Carefully lay the blade server on a flat, static-protective surface, with the cover
side up.
4. Press the blade server cover release on each side of the blade server or
expansion unit and lift the cover open, as shown in the illustration.
5. Lay the cover flat, or lift it from the blade server and store for future use.
Statement 21
CAUTION:
Hazardous energy is present when the blade server is connected to the power
source. Always replace the blade cover before installing the blade server.
24 BladeCenter HS22 Type 7870 and 1936: Installation and User's Guide

IBM BladeCenter HS22 Specifications

General

Tcase	76.2 °C
Bus type	QPI
Stepping	B1
FSB Parity	No
Processor code	SLBZ8
Processor cache	12 MB
Processor cores	6
Processor model	E5649
System bus rate	5.86 GT/s
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	12
Processor codename	Westmere EP
Processor frequency	2.53 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor package size	42.5 X 45 mm
Processor front side bus	1333 MHz
Processor boost frequency	2.93 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Supported instruction sets	SSE4.2
Thermal Design Power (TDP)	80 W
Compatible processor series	Intel® Xeon®
Number of processors installed	1
CPU multiplier (bus/core ratio)	19
Maximum number of SMP processors	2
Physical Address Extension (PAE)	40 bit
Memory types supported by processor	DDR3 800/1066/1333
Memory channels supported by processor	Triple
Memory bandwidth supported by processor (max)	32 GB/s
Maximum internal memory supported by processor	288 GB
HDD size	2.5 \
RAID levels	0, 1
HDD interface	Serial Attached SCSI (SAS)
Total storage capacity	0 GB
Maximum storage capacity	1 TB
Number of HDDs installed	0
Internal memory	12 GB
Memory clock speed	- MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	192 GB
Memory layout (slots x size)	3 x 4 GB
Graphics card	G200eV
Graphics card memory type	GDDR2
Networking features	Gigabit Ethernet
PS/2 ports quantity	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible operating systems	Microsoft Windows RedHat, SUSE, VMware Oracle Solaris
Chassis type	Rack (1U)
Processor ARK ID	52581
Intel® Turbo Boost Technology	1.0

Weight and Dimensions

Depth	446 mm
Width	245 mm
Height	29 mm
Weight	5400 g
