7. If you are instructed to return the Ethernet adapter, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing the two-port Ethernet adapter
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
Note: Before running a procedure, refer to “Removing a file module to perform a
maintenance action” on page 51.
To install the two-port Ethernet adapter, complete the following procedure.
1. To help you work safely with Storwize V7000 Unified file modules, read the
safety information in “Safety” on page xi, “Safety statements” on page xiii,
and “Installation guidelines” on page 54.
2. Turn off the file module and peripheral devices, then label and disconnect
both power cords and all external cables.
3. Remove the cover. See “Removing the cover” on page 83.
4. Attach the rubber stopper on the chassis, along the edge of the system board,
as shown in the following illustration.

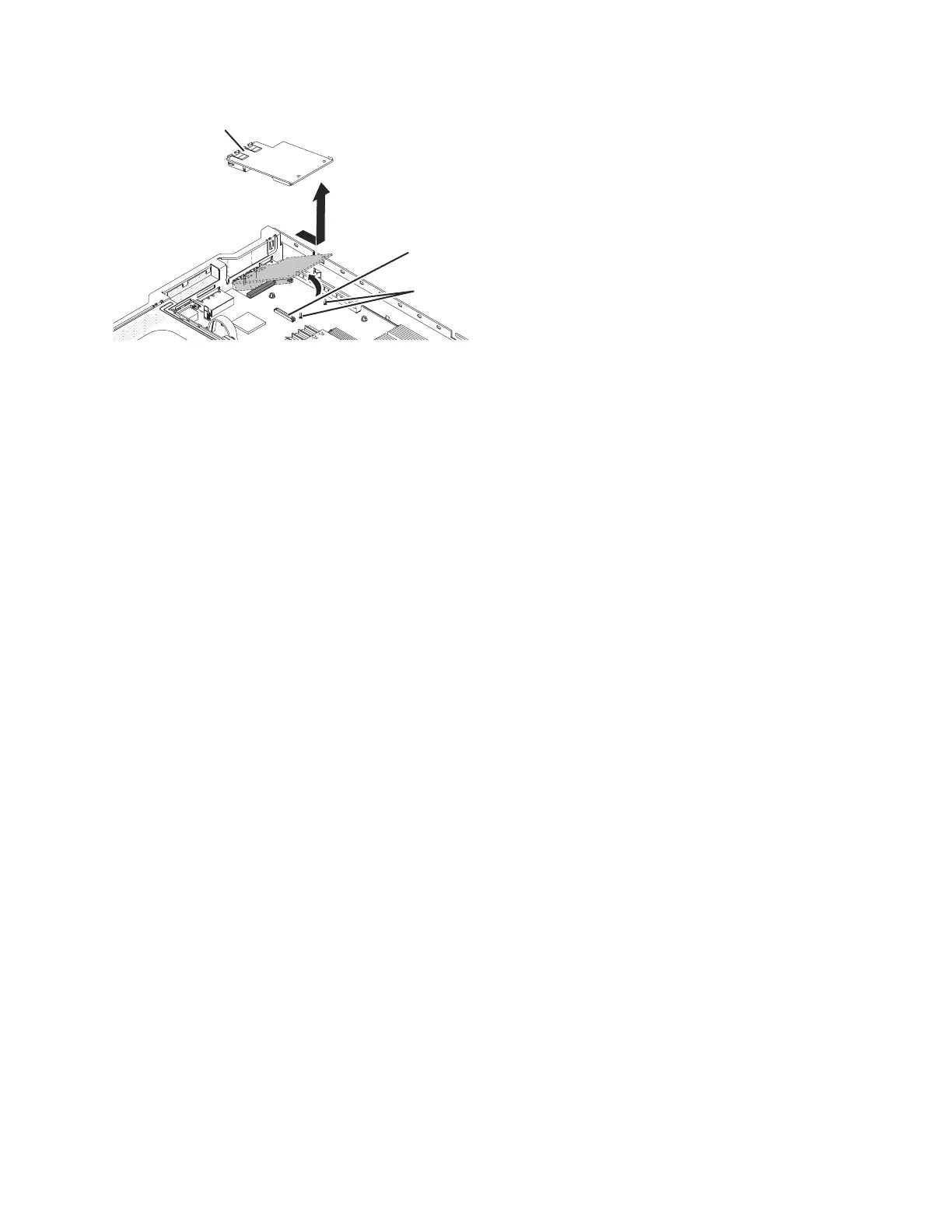

Ethernet
adapter
Standoff
Ethernet
adapter connector
sonas199
Figure 12. Removing the Ethernet adapter
Chapter 4. File module 107
