c. Press the SAS controller assembly into place; make sure that the SAS riser
card is firmly seated and that the release latch and retention latch holds the
assembly securely.
Removing the ServeRAID SAS controller from the SAS riser-card
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
Note: Before running a procedure, refer to “Removing a file module to perform a
maintenance action” on page 51.
A ServeRAID SAS controller is installed in a dedicated slot on the SAS riser card.
Note: For brevity, in this documentation the ServeRAID SAS controller is often
referred to simply as SAS controller.
Important: If an 8-disk-drive optional expansion device in a 16-disk drive is
installed in a 12–drive-capable server, the SAS controller is installed in a PCI
riser-card assembly. Install and remove the SAS controller the same way as any
other PCI adapter. Do not use the instructions in this topic. Use the instructions in
“Installing a PCI adapter in a PCI riser-card assembly” on page 103.
To remove a ServeRAID SAS controller from a SAS riser card, complete the
following procedure.
1. To help you work safely with Storwize V7000 Unified file modules, read the
safety information in “Safety” on page xi, “Safety statements” on page xiii,
and “Installation guidelines” on page 54.
2. Turn off the file module and peripheral devices, then label and disconnect
both power cords and all external cables.
3. Press down on the left and right side latches and pull the server out of the
rack enclosure until both slide rails lock.
4. Remove the cover, as described in “Removing the cover” on page 83.
5. Locate the SAS riser-card and controller assembly near the left front corner of
the server.
6. Disconnect the SAS signal cables from the connectors on the SAS controller.
7. Remove the SAS controller assembly, which includes the SAS riser card, from
the server, as described in “Removing the SAS riser-card and controller
assembly” on page 111.

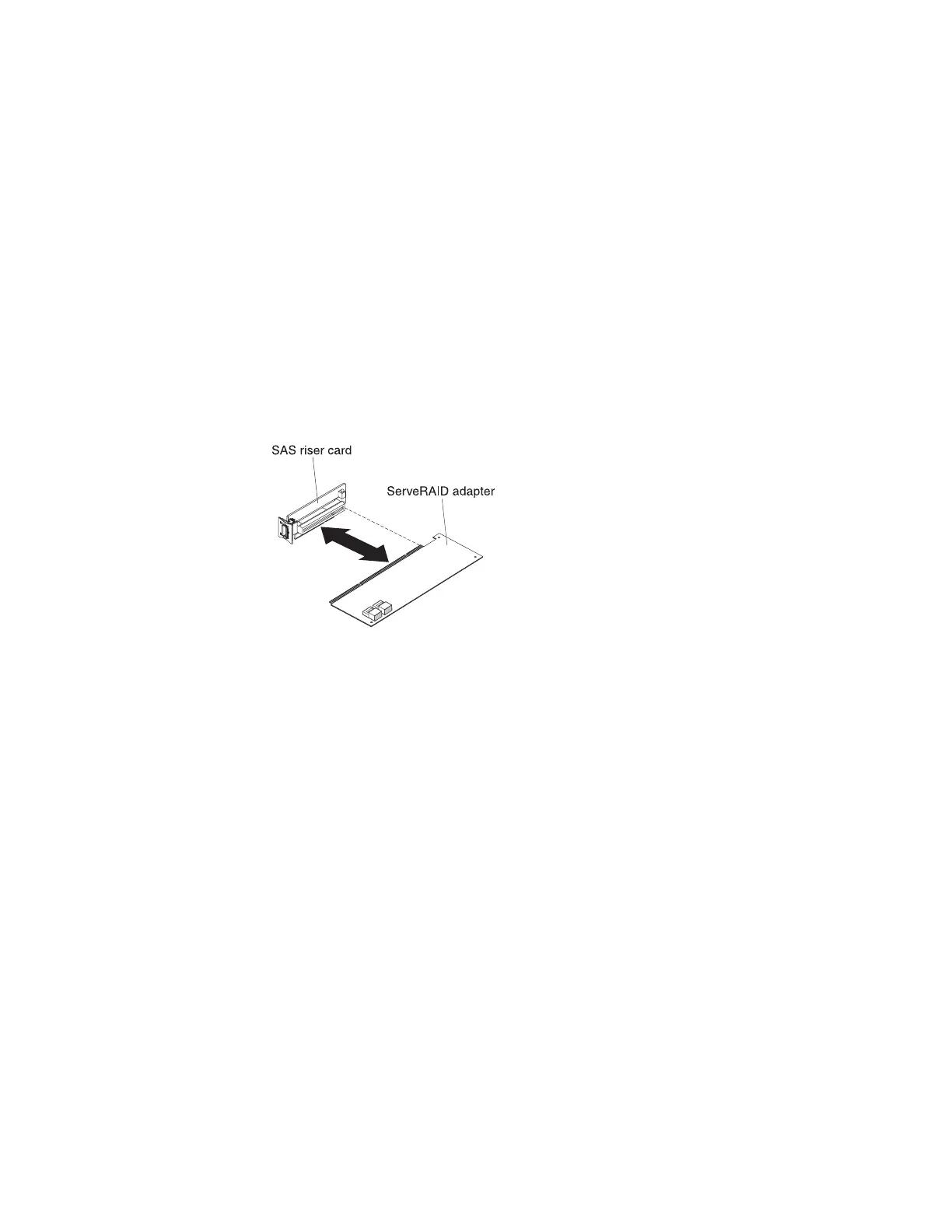

8. Pull the SAS controller horizontally out of the connector on the SAS riser card.
Chapter 4. File module 117
