3. If a PIN is congured, enter the PIN, then select Login and press Enter.
Status icons

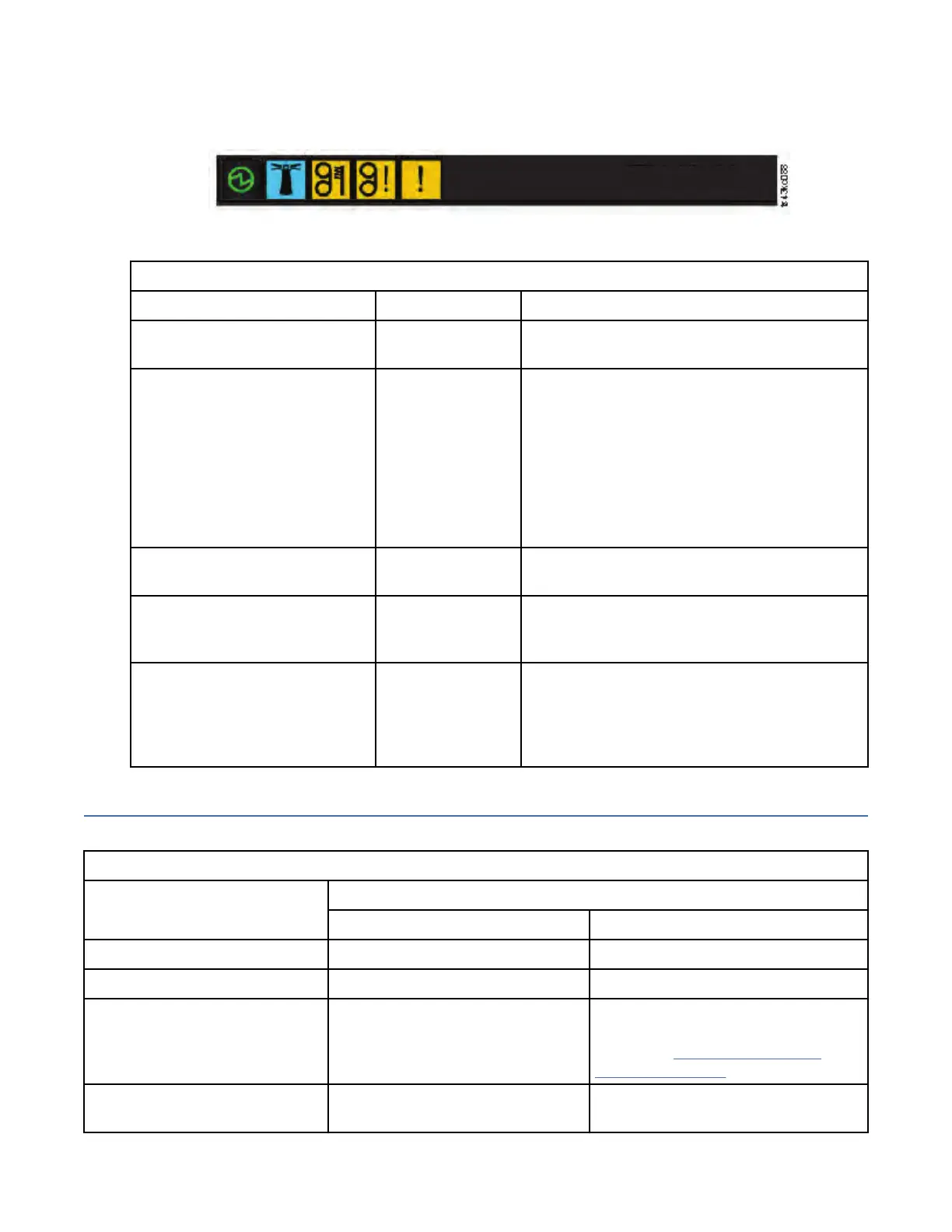

Figure 59. Front panel LEDs
Table 37. Front panel LEDs
LEDs Color Descriptions
Ready Green Steady when power is on, flashing with tape
Ready drive or library robotic activity.
Unit Identication (UID) Blue when
activated
The UID LEDs are controlled by the user
through the Library>Actions>Turn Identier
Light On or Off GUI function. The UIDs on
the Operator Panel and base module back
panel are activated and deactivated together. In
addition, UIDs on drives and expansion module
back panels can be activated separately. The
UIDs are helpful for locating components of the
library in a data center.
Clean Amber On, when a tape drive-cleaning operation is
recommended.
Attention Amber Flashing if the library detected a condition
for which user attention is necessary, but the
library can still complete most operations.
Error Amber On, if an unrecoverable tape drive or library
error occurs. A corresponding error message is
displayed on the LCD screen. User intervention
is required as the library is not capable of
completing some operations.
Locating Management functions
This table provides the menu navigation to assist with library setup and conguration.
Table 38. Locating Management functions
Task Menu Navigation
Operator Panel Management GUI
Advanced settings Not available with this interface Settings > Library > Advanced
Auto Calibration Not available with this interface Settings > Library > Auto Calibration
Auto Clean Not available with this interface Library > Logical Libraries > Actions
> Manage Logical Library (Expert
Mode) See “Methods of cleaning
drives” on page 86.
Cartridge, eject from a drive Operation > Move Cartridge from
Drive to Home Slot
Drives > Actions > Eject Cartridge
from Drive
