• Full-height tape drives must be installed in the lowest two bays of a module. Installing a full-height drive

in the top two bays of a module is not supported.

For detailed instructions, see “Adding, removing, or replacing a tape drive” on page 150.

Connecting cables

Procedures to connect Fibre Channel, SAS, USB, and Ethernet cables.

About this task

Connecting Fibre Channel cables

1. Remove the FC port caps if necessary. Attach one end of the FC cable to port 0 on the tape drive.

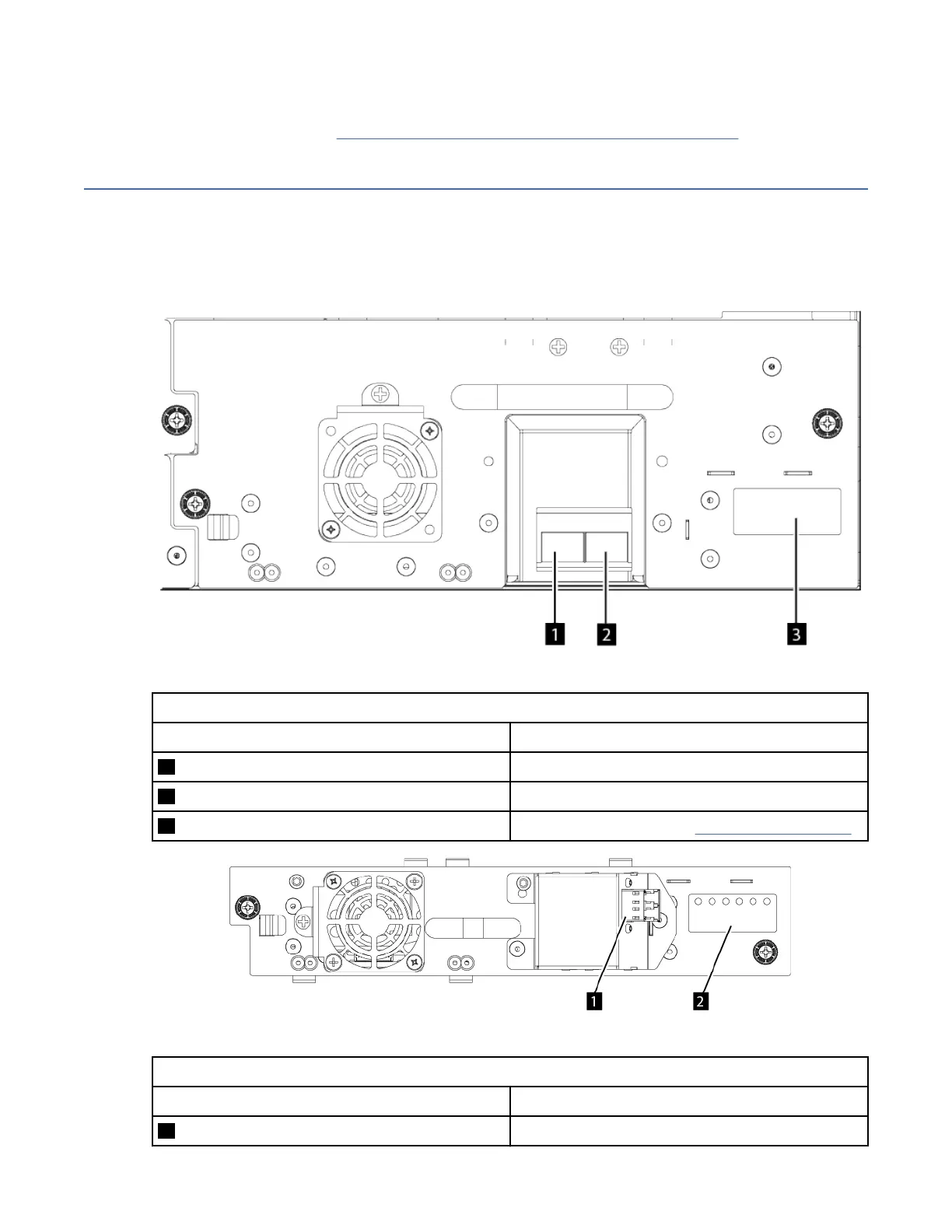

Figure 49. Full-height FC dual port

Table 29. Full-height FC dual port

Number Description

1 FC port 0

2 FC port 1

3 Drive sled indicators (see Drive sled back panels)

Figure 50. Half-height FC single port

Table 30. Half-height FC single port

Number Description

1 FC port 0

IBM Condential

64IBM TS4300 Tape Library Machine Type 3555: User's Guide
