■ Battery pack

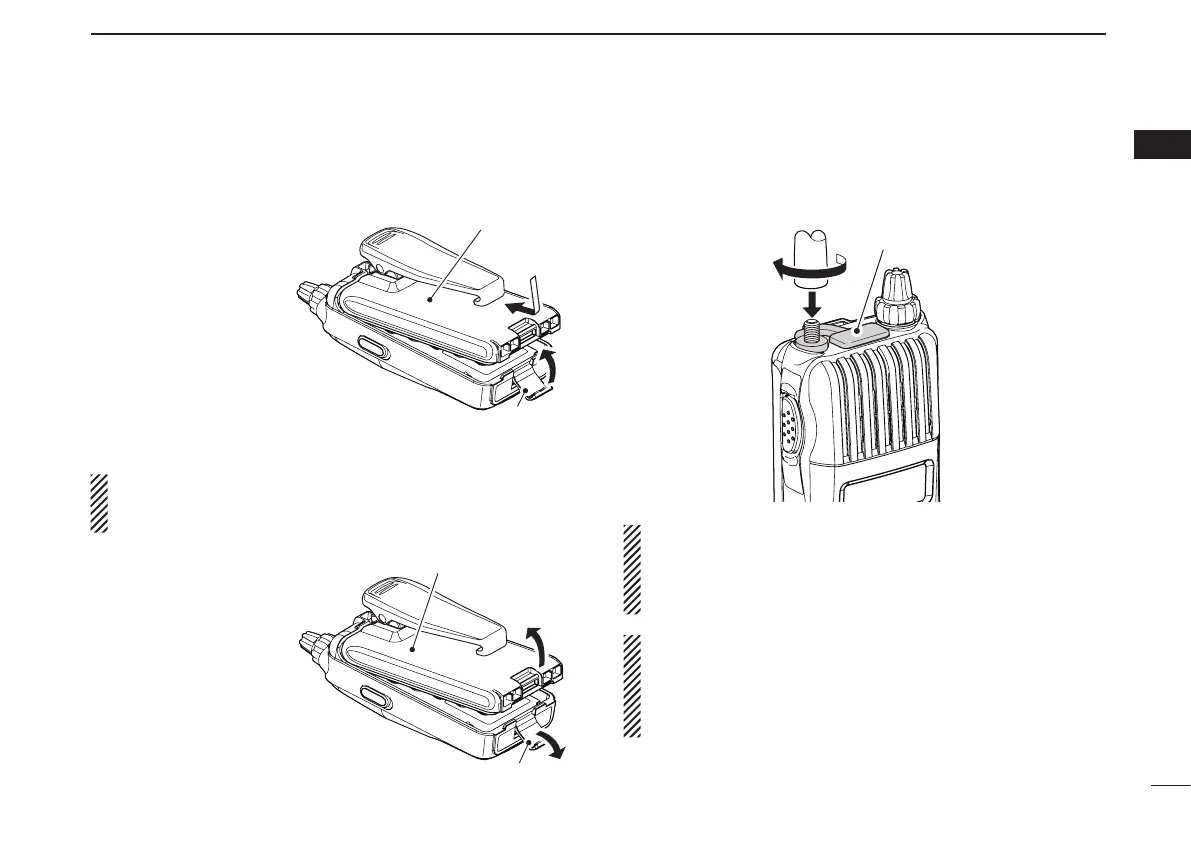

To attach the battery pack:
q Fit the battery pack
in the direction of the
arrow (q), then close.
w Hook the latch until it
makes a ‘click’ sound
(w).
•Chargethebatterypack
before use. (pp. 12–14)
To detach the battery pack:
Be careful! The latch is tightly locked, so use caution
when releasing it. DO NOT use your finger nail. Use the
edge of a coin or screwdriver tip to carefully release it.
Unhook the latch (e),
and lift up the battery
pack in the direction of
the arrow (r).
■ Antenna
Insert the antenna connector into the antenna base and
tighten the antenna screw.
Jack cover
•NEVER carry the transceiver by holding only the an-
tenna.
• When the jack is not in use, keep the jack cover in place
to protect the connector from dust and moisture.
✔ For your information
T hi rd- par ty ant enn as may inc re ase tr an sce iver
performance. An optional AD-92SMA
a n t e n n a
c o n n e c t o r a d a p t e r is available to connect an antenna
that has a BNC connector.
w
q
Latch
Battery pack/Battery case
e
r
Latch
Battery pack/Battery case

Icom IC-T70A Specifications

General

Operating frequency	144 – 148, 440 – 450 MHz
Display type	LCD
Backlight display	Yes
Antenna connector type	FA-S270C
Number of antenna connectors	1
Battery type	BP-265
Product color	Black
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	30 mm
Width	58 mm
Height	111 mm
Weight	380 g
