Configuration
2020-02-26 131
Java-Tool
➔ Select Extender & Devices > EXT Units in the task area.

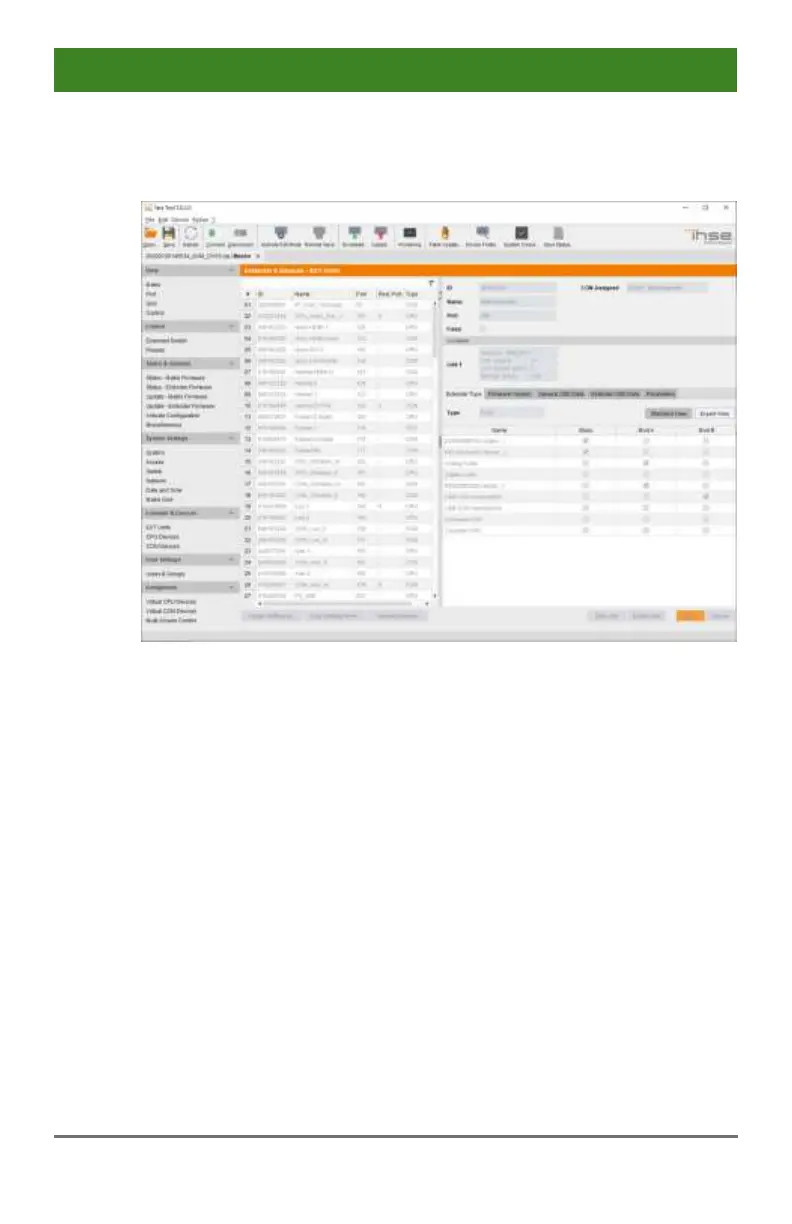

Menu Extender & Devices - EXT Units
1. Insert the SFP modules into the matrix.
One extender will be created for each SFP module in the EXT Units
list. The appropriate names always start with "UNI".
2. In order to configure a SDI input select one of the extenders in the
EXT Units list that corresponds to the respective SFP and is intended
to be used as input.
3. Select the item UNI CPU in the Type selection box of the Extender
Type tab and confirm your settings by pressing the Apply button.
4. Restart the I/O board upon request in the popup window by pressing
the Yes button.
5. In order to configure a SDI output select one of the extenders in the
EXT Units list that corresponds to the respective SFP and is intended
to be used as output.
6. Select the item UNI CON in the Type selection box of the Extender
Type tab and confirm your settings by pressing the Apply button.
