Note
The standard is U2 series. If you require R1, U1, or A3 series, contact Inovance for
customization.
The mounting baseplate is optional, and used only when required.
1.6 Physical Appearance and Mounting Dimensions of Servo Drive

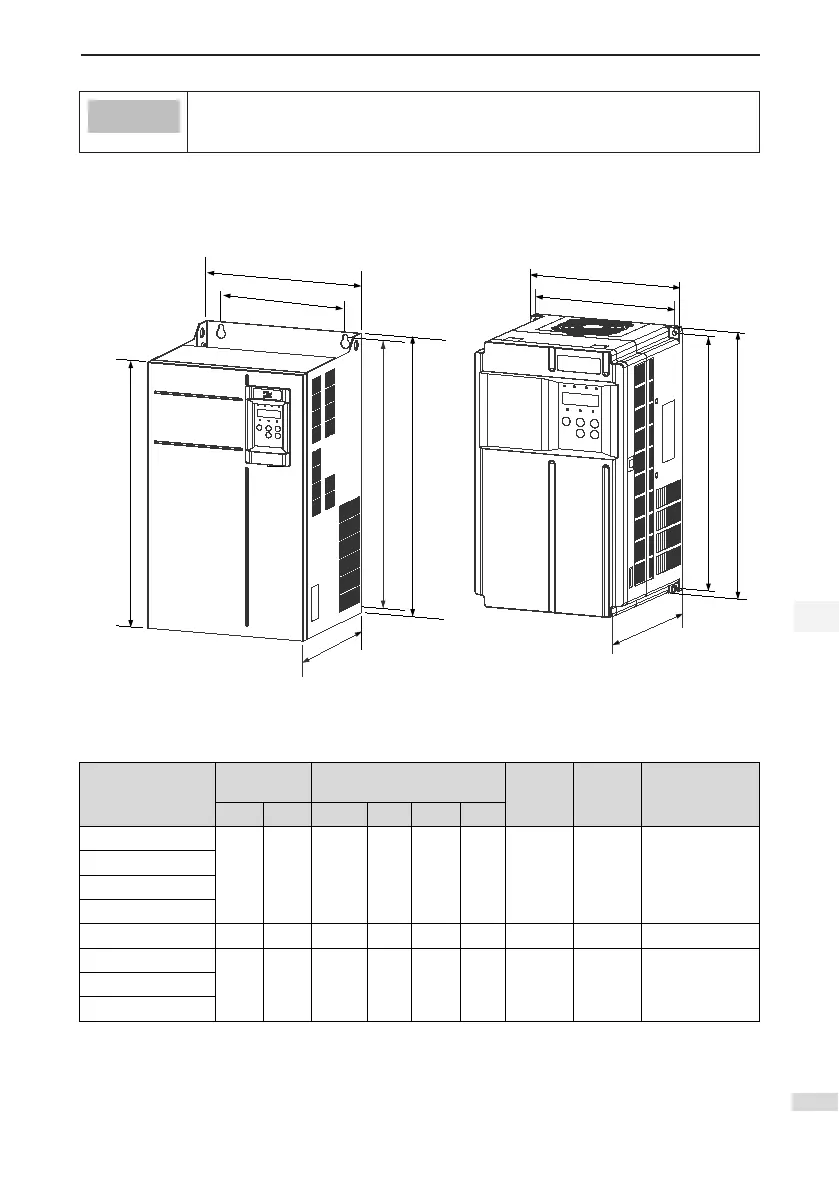

Figure 1-3 Physical appearance and mounting dimensions of servo drive
W
A
B
H
D
W
A
B
H1
D
H
a. Plastic structure
b. Sheet metal structure
Drive Model
Mounting
Hole (mm)
Physical Dimensions (mm)
Hole
Diameter
(mm)
Weight
(kg)
Structure
A B H H1 W D
IS650PT025IUX-B
195 335 350 / 210 192 Ø6 9.1 Plastic
IS650PT032IUX-B
IS650PT037IUX
IS650PT045IUX
IS650PT060IUX 230 380 400 / 250 220 Ø7 17 Plastic
IS650PT075IUX
245 523 523 540 300 275 Ø10 35 Sheet metalIS650PT091IUX
IS650PT112IUX
