2 Wiring
2
- 19 -
Encoder Frequency-Division Output Signal

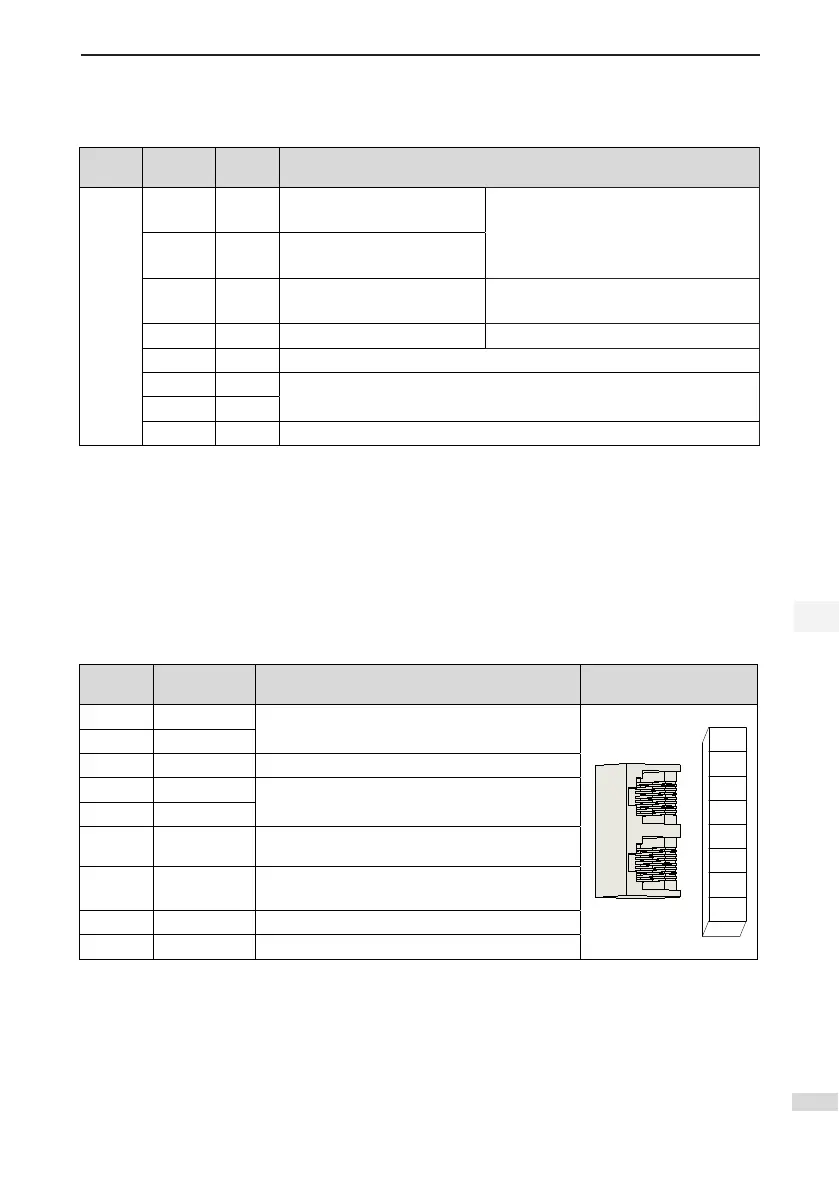

Table 2-3 Encoder frequency-division output signal specications
Signal
Default
Function
Pin No. Function Description
General
PAO+
PAO-
21
22
Phase A output signal
Phases A+B quadrature pulse output signal
PBO+
PBO-
25
23
Phase B output signal
PZO+
PZO-
13
24
Phase Z output signal Home pulse output signal
PZ-OUT 44 Phase Z output signal Home pulse OC output signal
GND 29 Home pulse OC output signal ground
+5V 15
5 V internal power supply
Maximum output current: 200 mA
GND 16
PE Housing
The encoder frequency-division output circuit outputs OC signals via the differential drive. Generally, it
provides feedback signals to the host controller in the closed-loop position control system. A differential or
optocoupler circuit shall be used in the host controller to receive feedback signals. The maximum output
current is 20 mA.
2.3.3 Communication Signal Terminal Connectors CN3/CN4
The CN3/CN4 terminals of the servo drive are used for communication connection between the servo drive
and the PC, PLC, and other servo drives. The following table describes the pin denitions of the CN3/CN4
terminals.
Table 2-4 Pin denition of communication signal terminal connectors
Pin No. Pin Description Pin Layout
1 CANH
CAN communication port
1
2
3
4
5
6
8
7
2 CANL
3 CGND CAN communication ground
4 RS485+
RS485 communication port
5 RS485-
6 RS232-TXD
RS232 transmitting end, connected to the receiving
end of the host controller
7 RS232-RXD
RS232 transmitting end, connected to the sending
end of the host controller
8 GND Ground
Housing PE Shield
