Inovance ISMG1-17D15CD-A3 FA Series User Manual

2 Wiring
2
- 21 -
Table 2-7 Mounting options
Model Description
ISMG1-B01 Mounting bracket for ISMG1 natural ventilation motor
ISMG2-B01 Mounting bracket for ISMG2 natural ventilation motor
ISMG1-B02 Mounting bracket for ISMG1 forced air ventilation motor
ISMG2-B02 Mounting bracket for ISMG2 forced air ventilation motor
MD500-AZJ-T5 Through-hole mounting bracket for SIZE-G servo drive
MD500-AZJ-T6 Through-hole mounting bracket for SIZE-H servo drive
MD500-AZJ-T7 Through-hole mounting bracket for SIZE-I servo drive
2.4.2 Cable Connectors
Cables of Serial Incremental Encoder

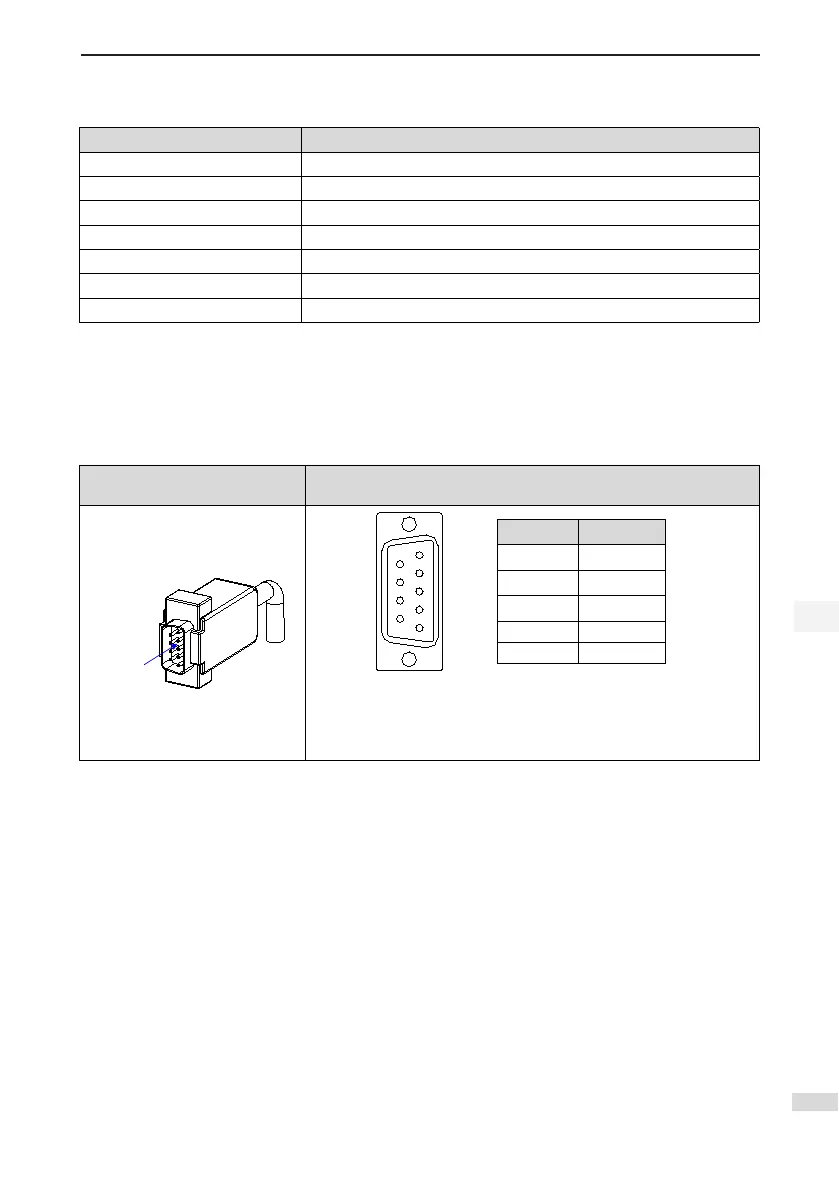

Table 2-8 Connectors of 20-bit encoder cables on servo drive side
Connector Appearance Pin Layout
Viewed from
this side
5
4
3
2
1
9
8
7
6
Pin No. Signal
1 PS+
2 PS-
7 +5V
8 GND
Housing PE
Recommendation:
Plastic housing of plug on cable side: DB9P (SZTDK), black housing
Core: DB9P soldering plug (SZTDK), blue glue
