Function and Features
Set Priority as CC, CC-Loop as High and CV-Loop as High to represent CC
characteristics entirely. In this way, you can quickly create current and inhibit
current overshoot so as to realize seamless and no-overshoot current
switch.

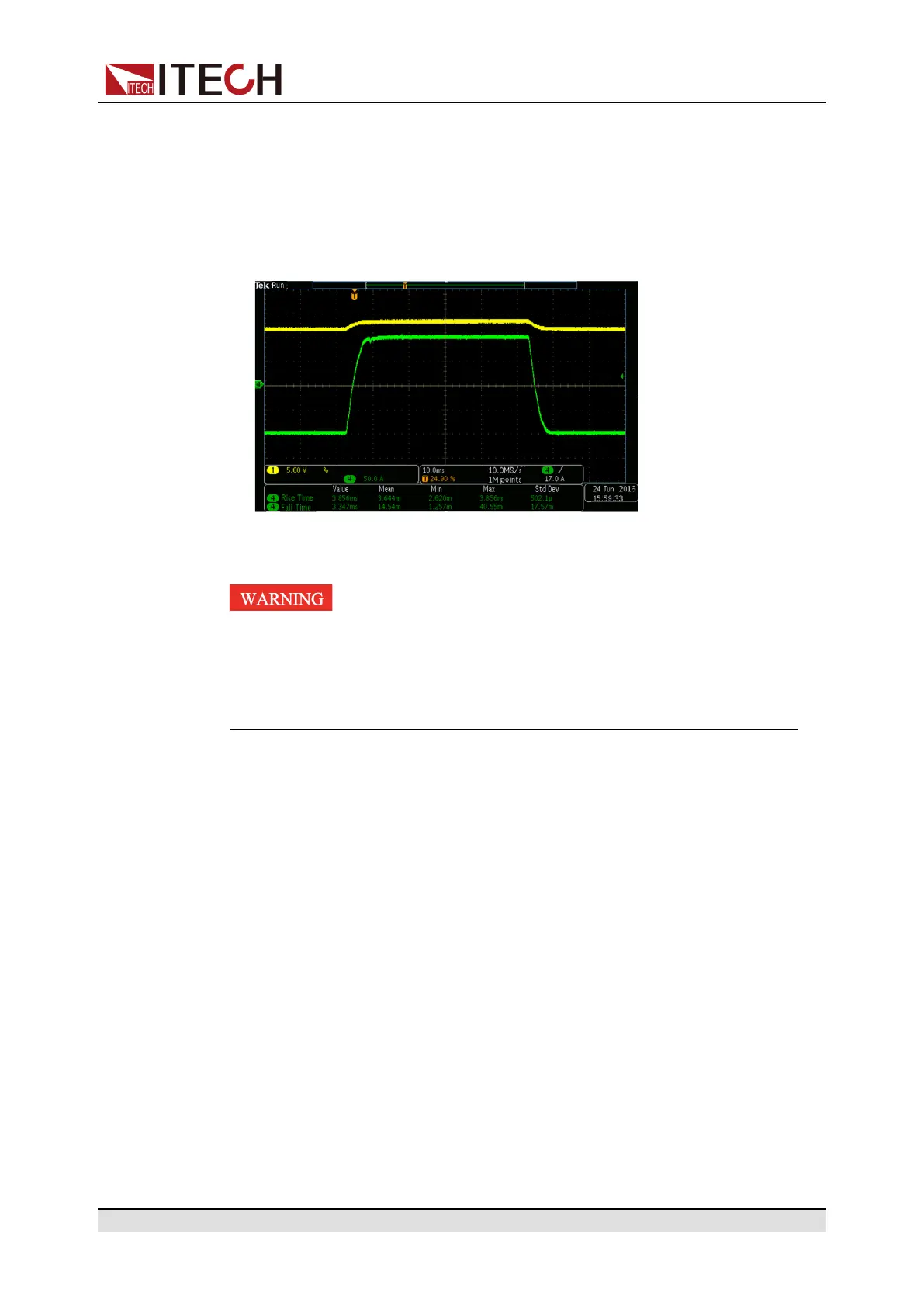

Waveform characteristics are as shown below. Yellow means output voltage
and green means output current.
When CV mode is selected from CC/CV Priority, the load current
value set in List wave file fails and discharge current is the I-set
value set in the power supply Setup menu. Pay attention to
current value to avoid over-current. For detailed checking and
setting methods, refer to 3.9.8 Load Setup Option (Load).
To set loop and CC/CV mode, follow the method below.
1. Press the composite key [Shift]+[P-set](Menu) to enter the Configuring
Menu.
2. Select CONFIG in the menu and press [Enter] for confirmation.
3. Select Loop-Mode with Right key and press [Enter] for confirmation.
4. Select CV-Loop or CC-Loop to set the loop response speed.
5. Select Priority and set the current priority work mode, which defaults to CV
mode.
3.18 LIST Operation
LIST mode comprises 10 files (File1-File10) in total, and each has 10 waves.
Each wave has 10 steps. You need to edit the voltage, current, load current,
