Function and Features

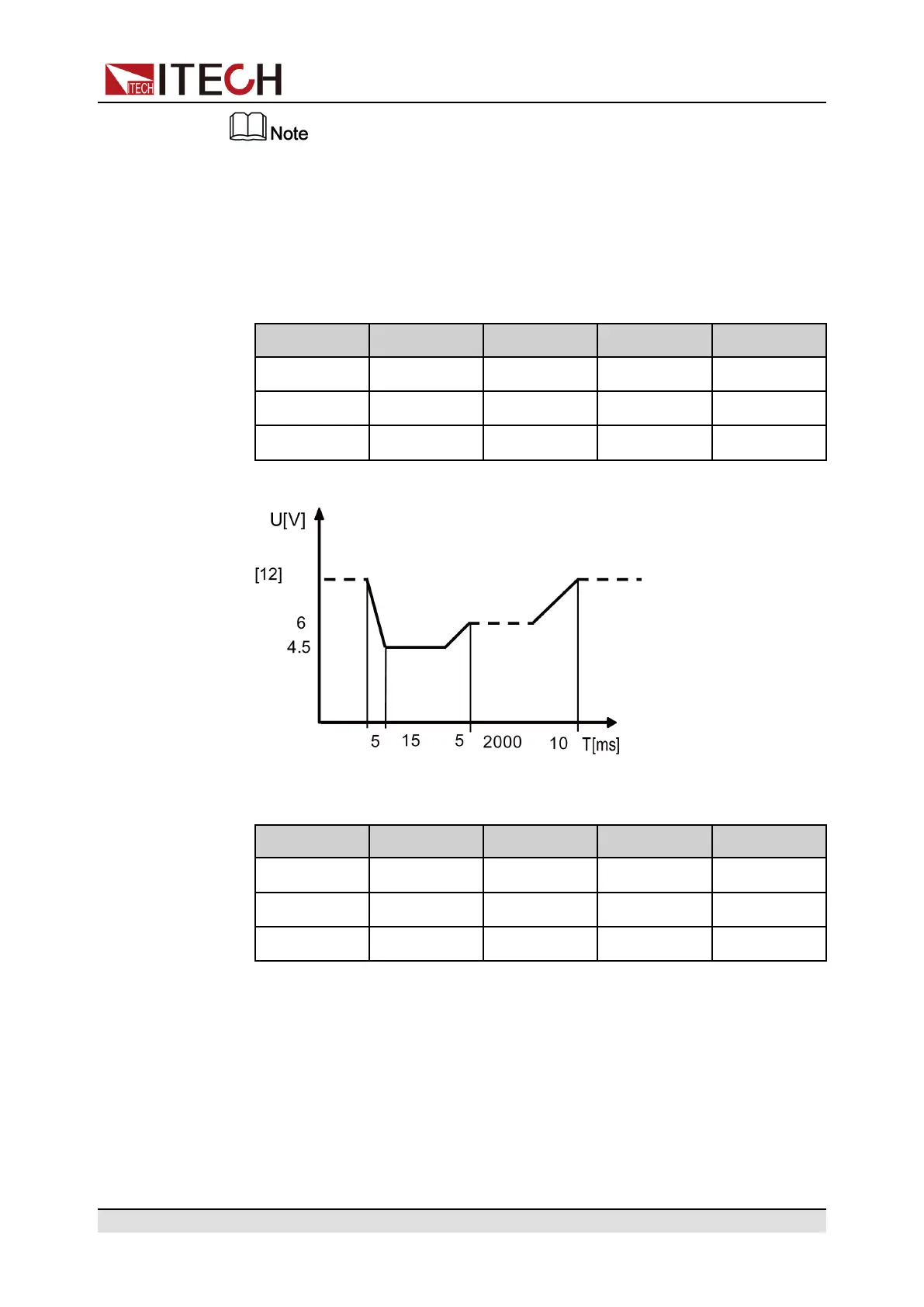

When recalling the DIN40839 waveform, to ensure the validity of the
DIN40839 waveform， the user needs to enable the internal load function at
first and then set the current of internal load to the maximum value. Please
refer to 3.9.8 Load Function for the detailed operation.
• DIN40839 for 12V system:
Steps Voltage (V) Current(A) Width(mS) Slope(mS)
1 4.5 60 15 5
2 6 60 2000 5
3 12 60 10
• DIN40839 for 24V system:
Steps Voltage (V) Current(A) Width(mS) Slope(mS)
1 8V 60 50 10
2 12 60 2000 5
3 24V 60 10
