− 133 −

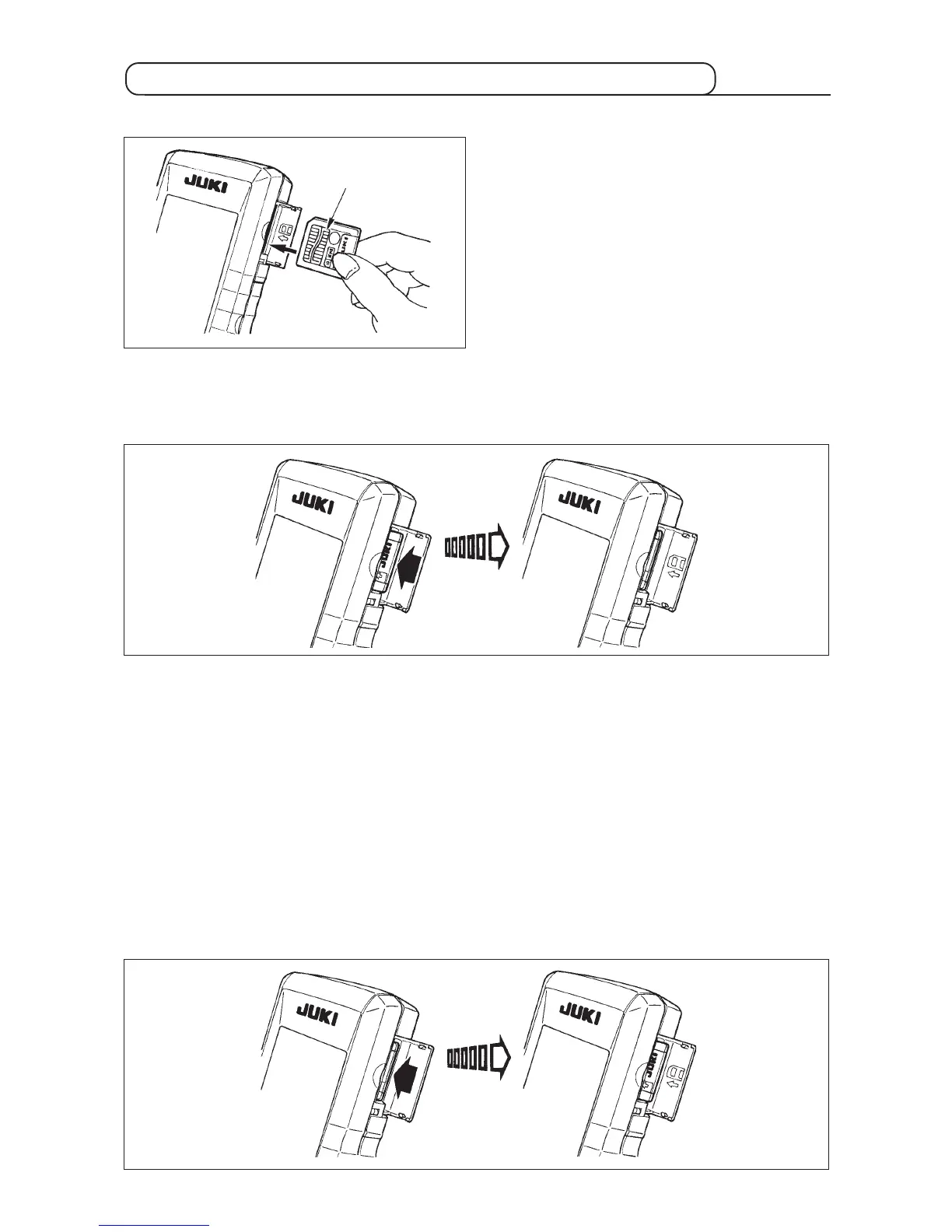

16-2 Performing communication by using the smart media
1) When the upper side cover located on the side of
the operation panel is opened, there is the inserting
opening for smart media card.
Put the contact part of the card to the front side
and insert it into the opening.
2) The smart media card stops once in the protruding state by approximately 10 mm while inserting the card.
Further, apply force to insert the card and ease up the force when it is reached to the end. Setting is
completed when the card has returned by approximately 1 mm.
3) After completion of setting of the card, close the smart media cover. By closing the cover, it is possible to
perform communication. If the smart media card and the cover come in contact with each other and the
cover is not closed, check the following matters.
• Check that the inserting is stopped in the state that the card protrudes by approximately 10 mm.
• Check that the contact part of the card is put downward and inserted.
•Check that the smart media card other than 3.3V voltage type is used.
[ Setting procedure ]
[ Removing procedure ]
1) Open the smart media cover, push the card until it goes no further, and ease up force when it goes to the
end. The card returns by approximately 10 mm in the reverse order of the time of setting.
2) Then draw out the card to complete removing.
Contact part
