− 176 −
24-6 Greasing parts
Periodically perform grease-up every 6 months as a standard .
For the grease, use the exclusive grease (Part No. : 40006323) supplied as accessories.
In addition, for the places to be greased, refer to the Engineer's Manual for DP-2100.
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
1
2
3
5
4
1. When they are not in parallel,
remaining of thread end will be
caused.
2. When the knife pressure is low,
thread trimming failure will be
caused. When it is excessively high,
it is related to the damage of the
blade point of counter knife.

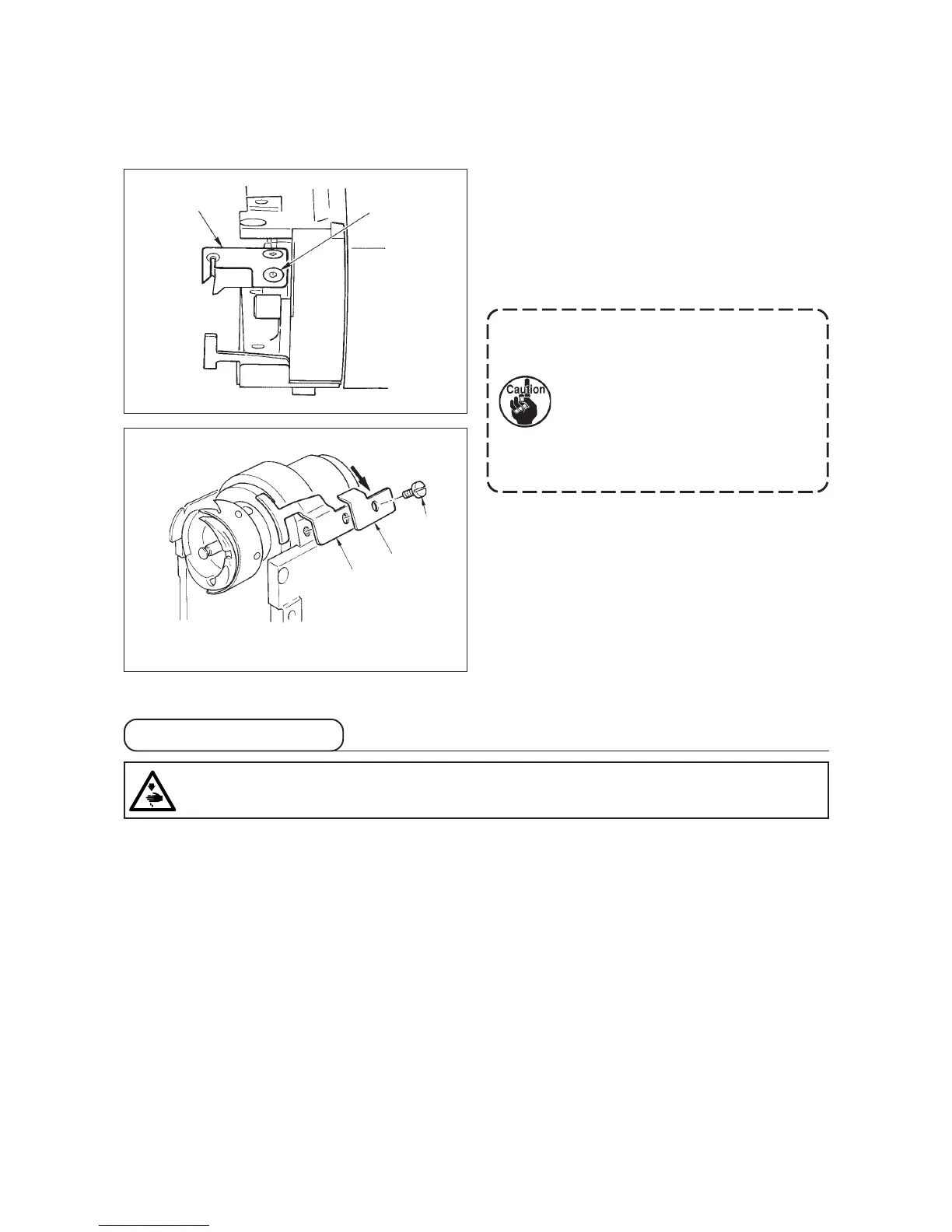

(4) Adjusting the position of the moving knife and the counter knife
Install moving knife 1 by making it come in contact with the moving knife base.
Install counter knife 4 together with knife pressure adjustment plate 5.
1) Loosen counter knife setscrew 3, adjust so that
moving knife eyeend blade section 1 and counter
knife blade section 4come in contact with each
other in parallel, slightly press knife pressure
adjustment plate 5 in the direction A, and tighten
with the setscrew.
A
To Next Page
