− 10 −
Cord clamp A
Adjust the height so that the top
surface of throat plate auxiliary plate
aligns with that of the throat plate. If
the height is not proper, material flops
and the feed amount is not settled.

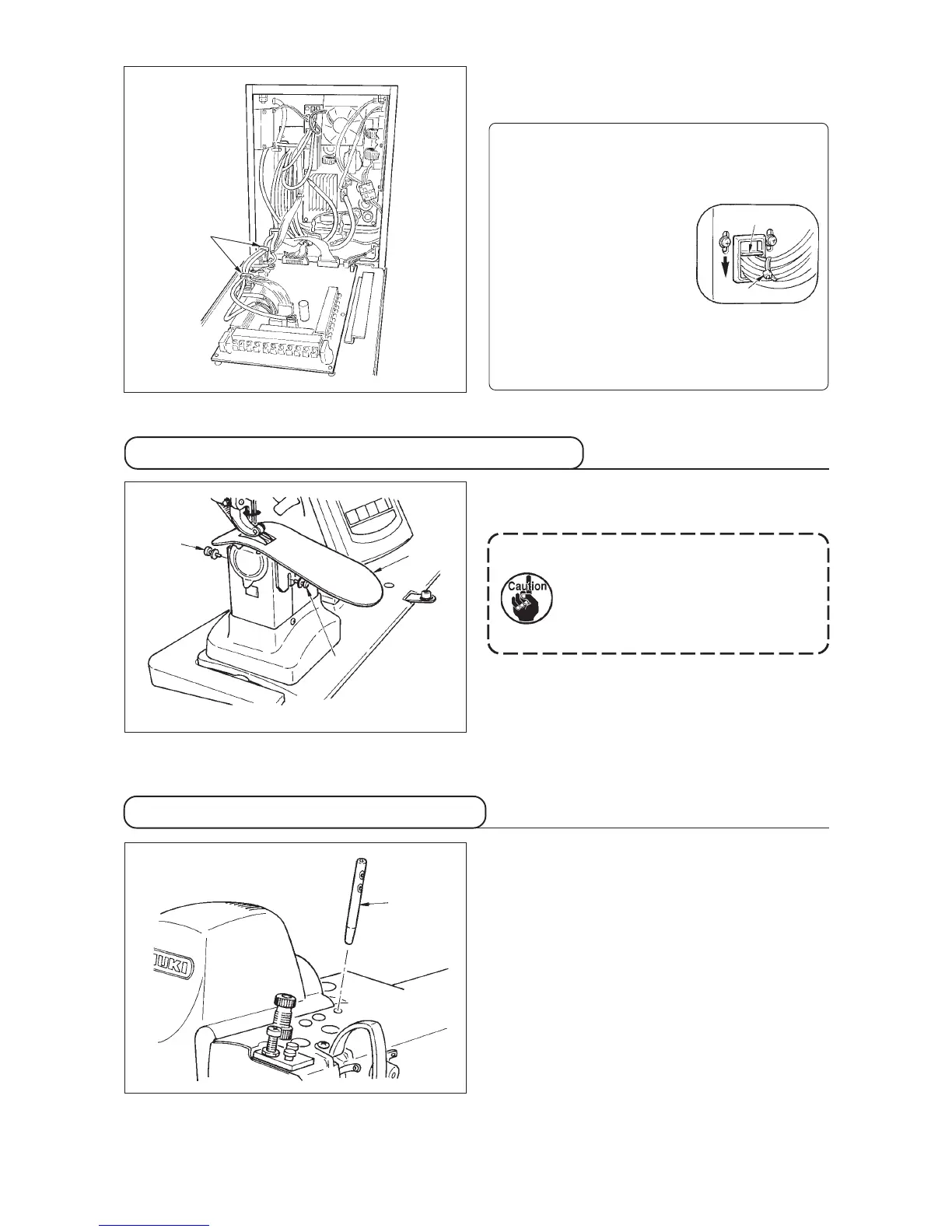

3-10 Installing the throat plate auxiliary plate
Loosen two screws 2, insert throat plate auxiliary plate
1 and fix it.
Securely insert thread guide rod 1 so that two side
holes of it faces the front in the direction of the operator.
3-11 Installing the thread guide rod
1
2
2
1
4) Fix the cords connected to MAIN p.c.b. with cord
clamp A.
H wandling the cords
1) When fixing the cords, connect them with the sewing
machine tilted, and bundle with clip band 1.
2) When the machine head is
returned to its home position,
fix the cords with cord fixing
plate 2 in the state that
there is the slack in the
cords.
Caution : When tilting the sewing machine,
make sure that the head support
bar is attached to the table.
1
2
