4.6 Checking the hydraulic oil level
Check oil level
Requirements
– Lower the load handler.
– Prepare the truck for maintenance and repairs, see page 168.
Procedure
• Lift off the front panel, see page 173
• Check the oil level in the hydraulic reservoir.
Z
There are markings on the hydraulic reservoir. The oil level must be checked
when the forks and wheel arm lift are lowered.
• If necessary add hydraulic oil of the correct grade, see page 167, (see also table).
Z
For the first filling approximately 0.6 litres extra must be added.
The oil level is now checked.
Z
If a leak is discovered coming from the castor wheel hydraulics (castor wheel
cylinder, control cylinder and from connections), the truck must be decommissioned
and repaired by specialist personnel.
Mast Capacity
Capacity
New filling
DT 1055 3,2 l 3,8 l
DT 1155 3.2 l 3.8 l
DT 1205 3.2 l 3.8 l
ZT 1205 2.8 l 3.4 l
ZT 1380 2.8 l 3.4 l
ZT 1655 3.2 l 3.8 l

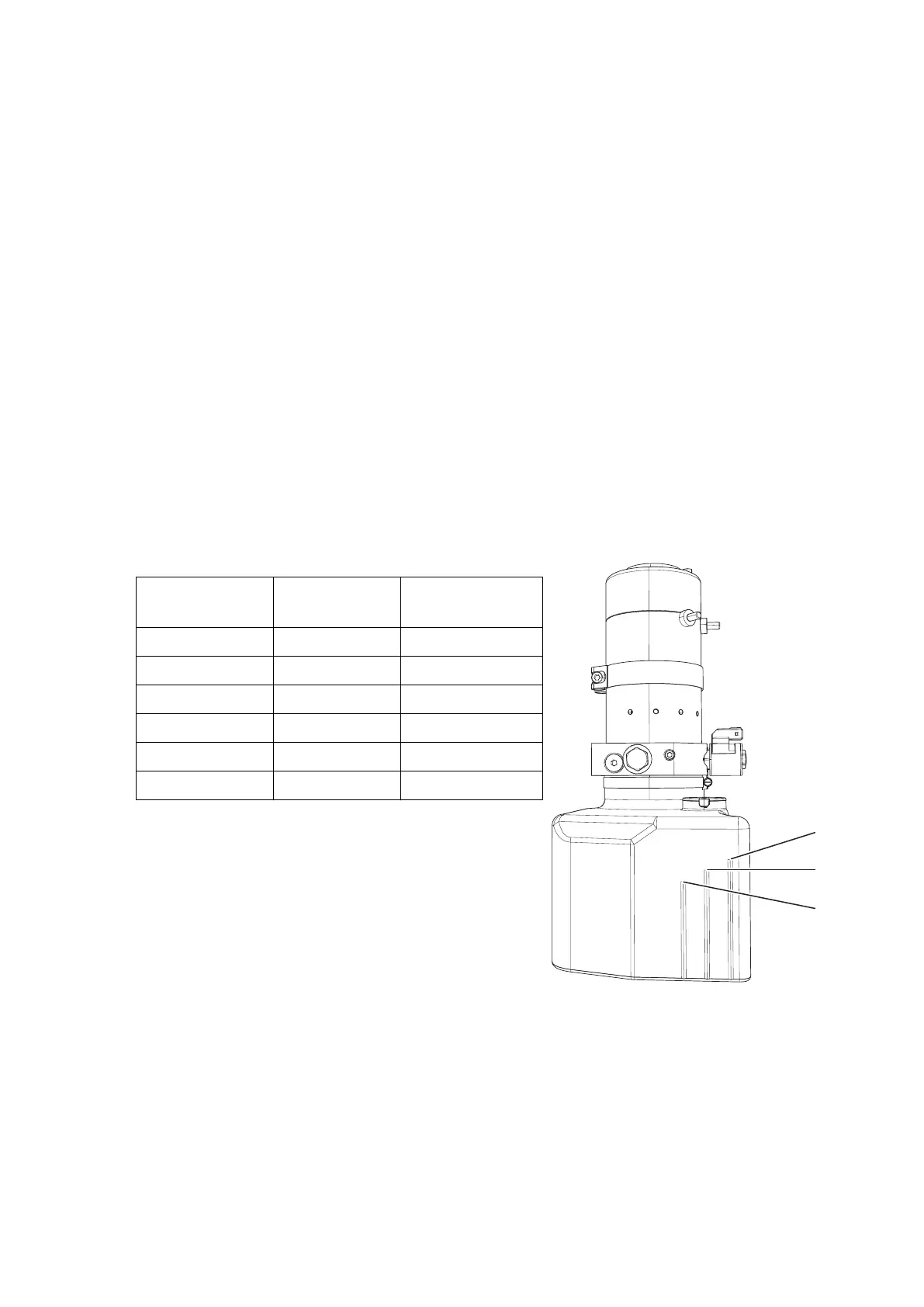

A = First filling
B = Max. volume
C = Min. volume
175
04.19 en-GB
