4.9 Checking electrical fuses
Checking fuses
Requirements
– Truck prepared for maintenance and repairs, see page 168.
– Front panel removed, see page 173.
Procedure
• Check the fuse ratings against the table and replace if necessary.
The fuses have been checked.

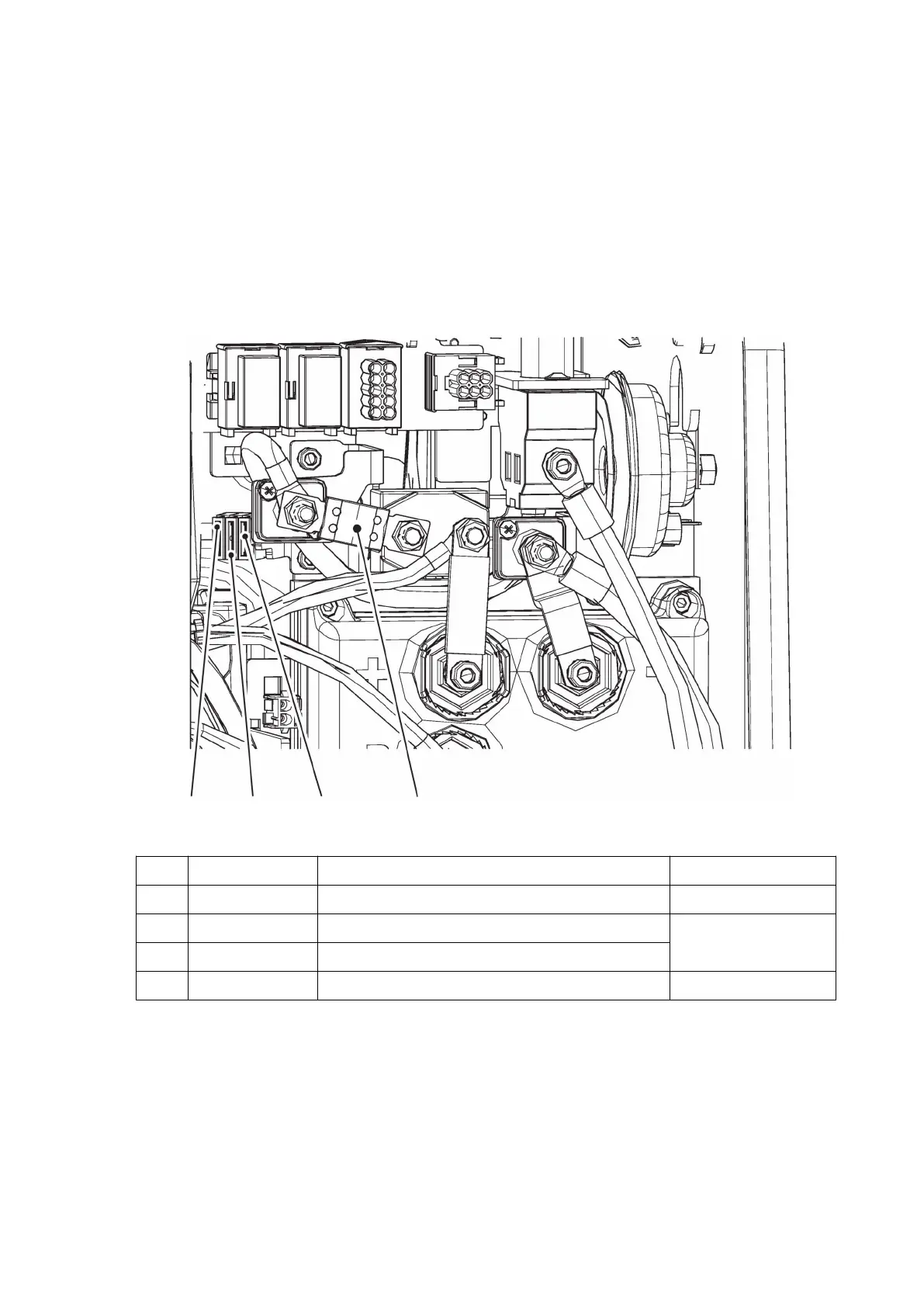

Item Designation To protect EJD 220
112 6F1 Discharge indicator control fuse 2 A
113 1F9 Electronic system control fuse
4 A
8
114 F13 Solenoid/magnetic brake control fuse
115 F 1 Travel/lift fuse 200 A
8)
Some values have been reduced from 10 A to 4 A in series trucks built in 2016.
179
04.19 en-GB
