5.5 Capacity Plate for Stacking, Transport and Double-Deck
Operations
CAUTION!
Risk to operational stability
In order not to jeopardize the operational stability, pay attention to the weight when
transporting two pallets so that the truck does not tip over.
u
In order not to jeopardize the operational stability, the heavier pallet should always
be transported underneath.

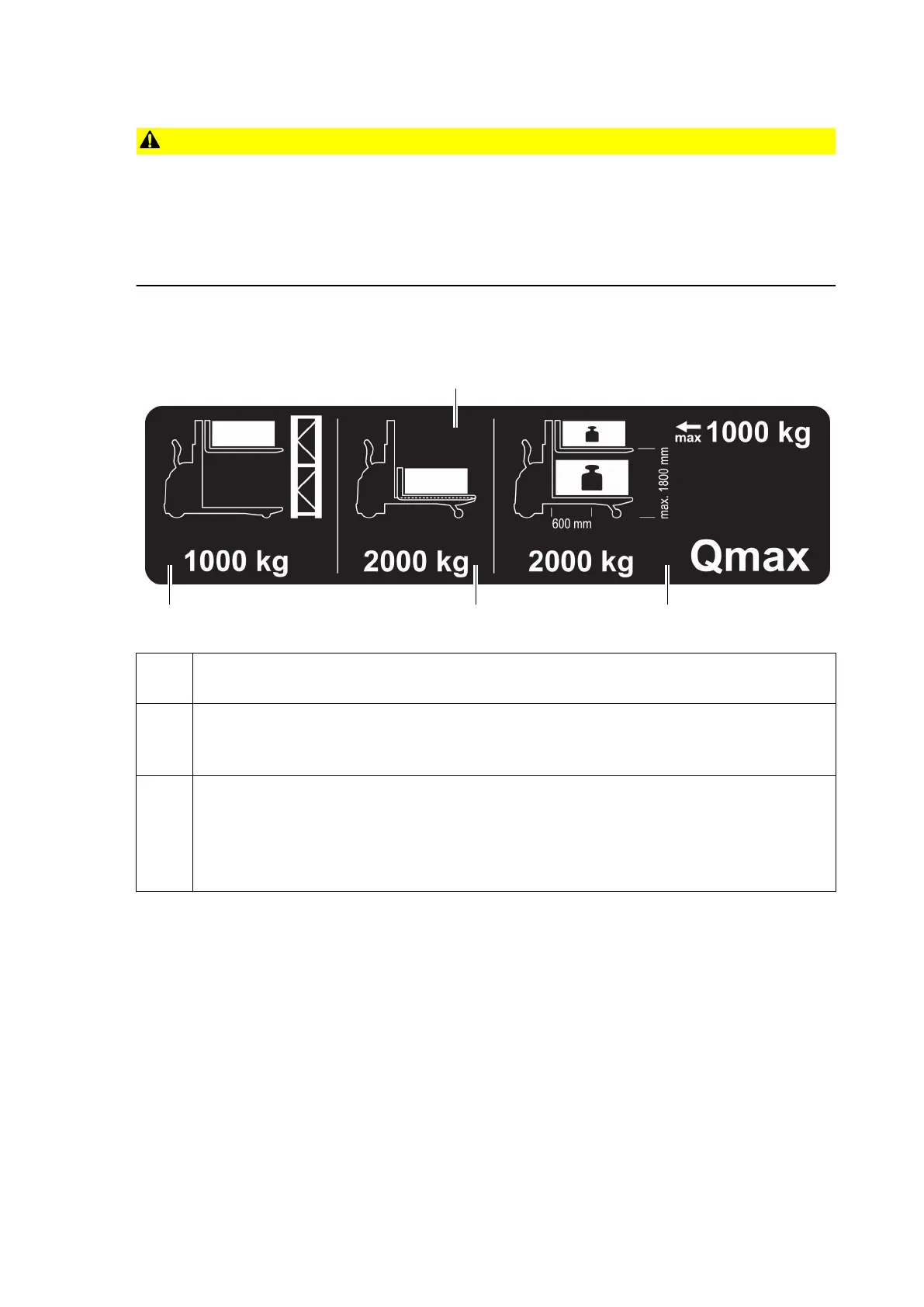

The capacity plate for stacking, transport and double-deck operations (23) specifies
the truck capacity Q (in kg) during stacking, transport and double-deck operations:
A= Stacking operations (storing and retrieving loads):
Maximum capacity for high-level lifting (mast lift) is 1000 kg.
B= Transport operations:
Maximum capacity when transporting loads horizontally 2000 kg with the
support arms raised and without high-level lift (mast lift).
C= Double-deck operations:
Maximum capacity for high-level lifting (mast lift) is 1000 kg.
Maximum capacity for concurrent high-level lifting (mast lift) and low-level
lifting (support arm lift) is 2000 kg.
The maximum lift height for double-deck operations is 1800 mm.
Z
During high-level lifting (mast lift), observe the capacity depending on the lift height,
see page 32.
Z
Apart from double-deck operations, do not transport loads when they are raised
(>500 mm).
36
04.19 en-GB
