7.2 ERC 214/216/214z/216z
Load handler emergency lowering
Requirements
– Load handler is not in the rack.
Tools and Material Required
– Key (SW8)
– Torque wrench setting range 1-4 Nm
Procedure
• Park the truck securely, see page 76.
• Open the front panel, see page 180.

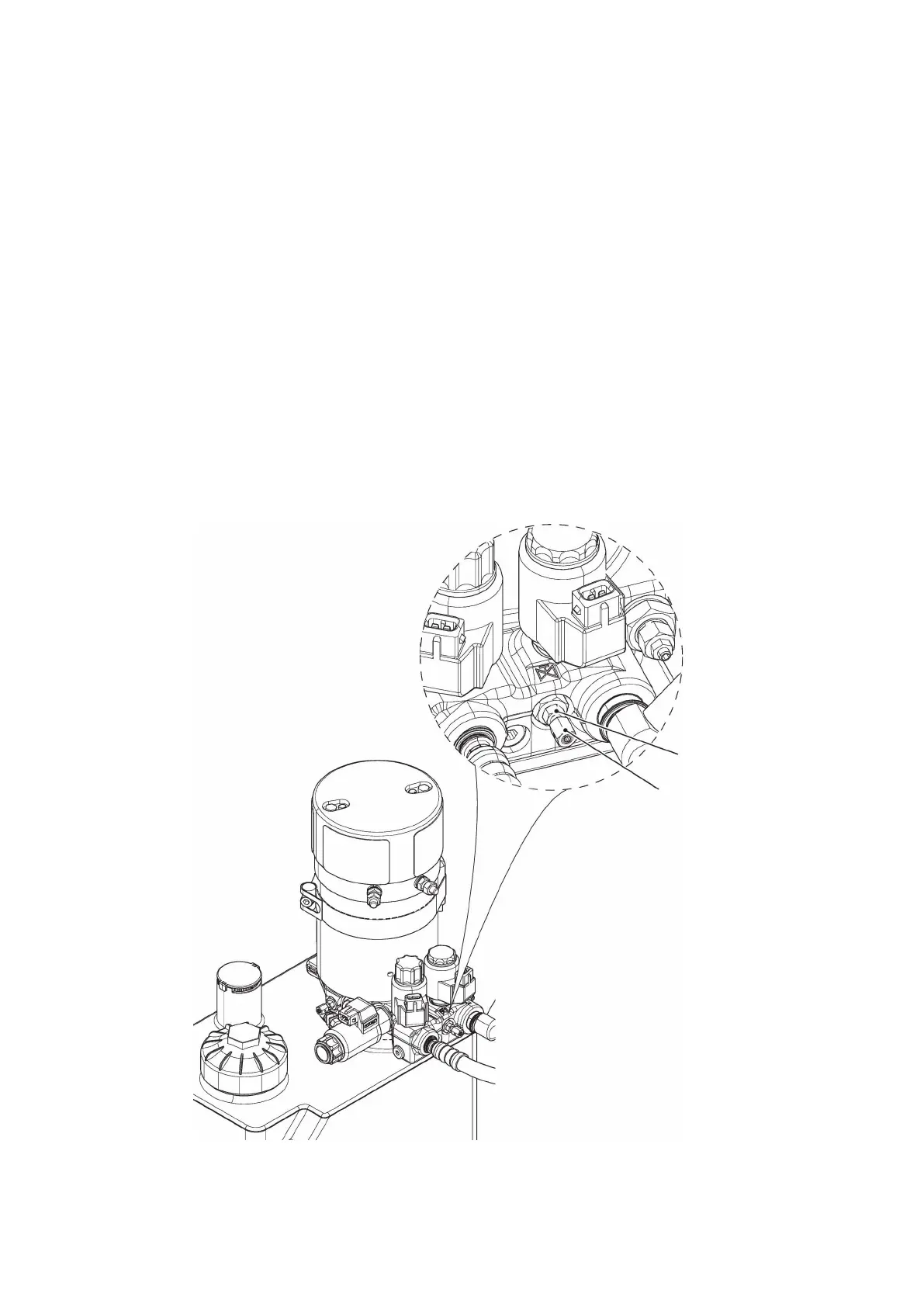

• Loosen the lock nut (70) on the valve block.
• Remove the valve screw (71) in stages (anti-clockwise).
The load handler is lowered.
Z
After the emergency lowering insert the valve screw (71) as far as the stop (1.5 Nm
+0.5 Nm) and secure with the lock nut (70).
70
71
112
04.19 en-GB
