Jungheinrich ERC 214z User Manual

4.7 Checking electrical fuses
Check fuses
Requirements
– Truck prepared for maintenance and repairs, see page 179.
– Front cover removed, see page 180.
Procedure
• Check the fuse ratings against the table and replace if necessary.
The fuses are now checked.
110
111
109
114
113
112

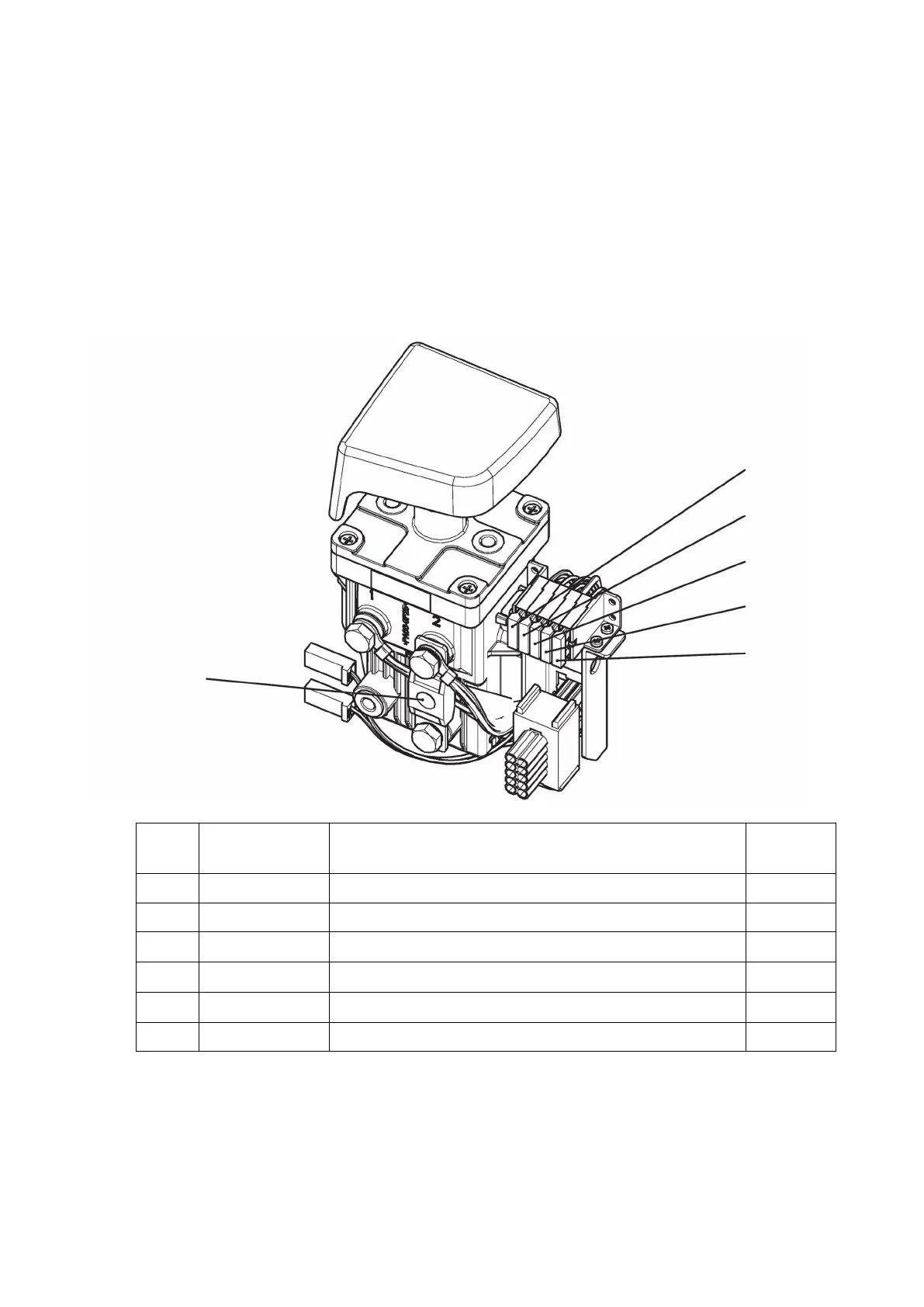

Item Component To protect Rating
(A)
109 F1 Overall control circuit fuse
4
10
110 6F1 Battery discharge indicator control fuse 2
111 9F22 Electric/mechanical components
4
1
112 3F6
Not used (t)
30
113 F17 Radio data option
4
1
114 F15 Main fuse 300
10)
Some values were reduced from 10 A to 4 A in series truck built in 2014.
189
04.19 en-GB
