Jungheinrich ERC 214z User Manual

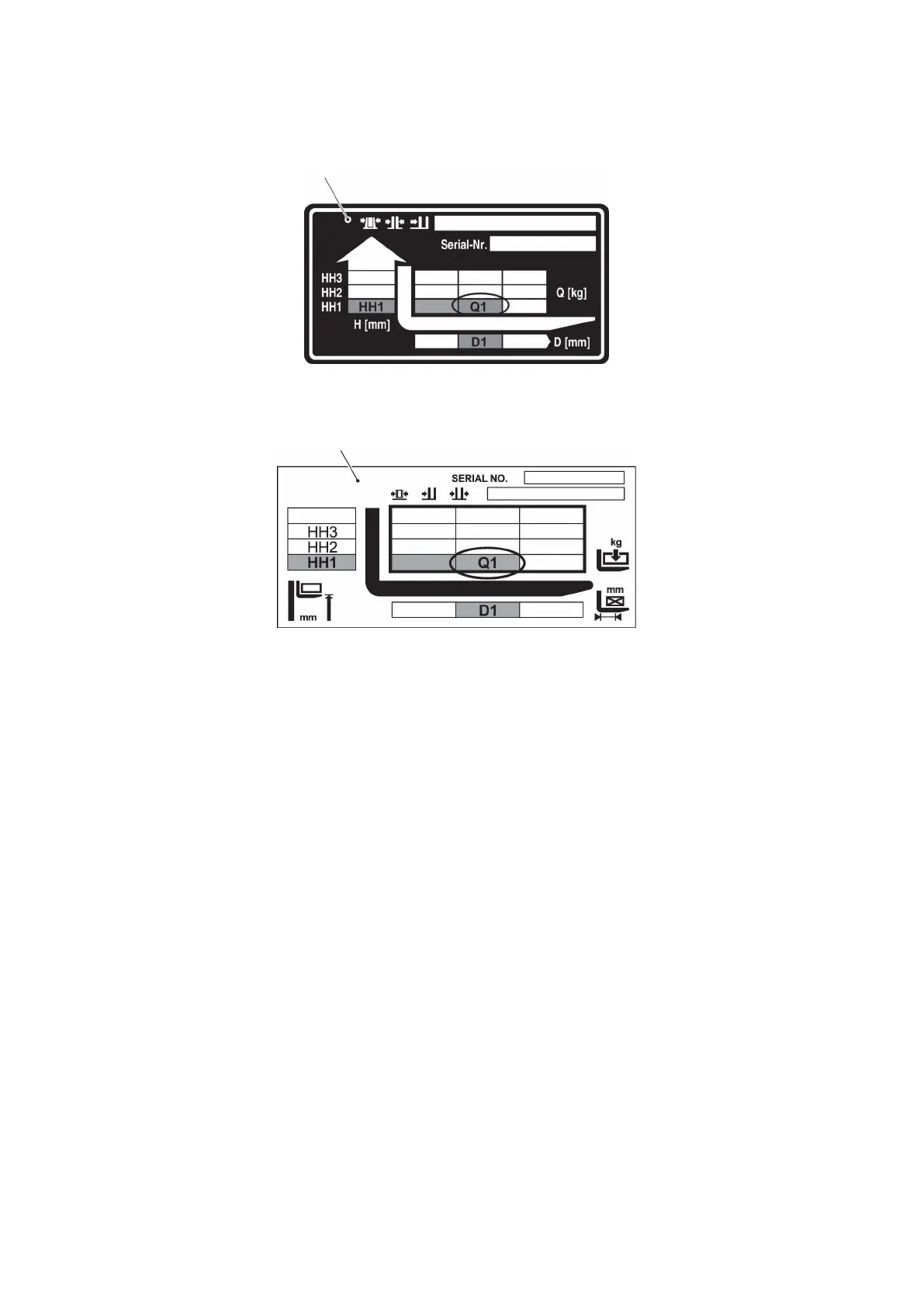

5.3 Truck capacity plate
Previous capacity plate
22
Current capacity plate
22
The capacity plate (22) indicates the maximum capacity Q (in kg) for a given load
centre distance D (in mm) and corresponding lift height H (in mm) for the truck when
raising a load.
Example of how to calculate the maximum capacity:
The maximum capacity is Q1 at a load centre G within the load centre distance D1
and a lift height up to HH1.
31
04.19 en-GB
