Connecting the EX4650 to Power
IN THIS SECTION
Connecting Earth Ground to an EX4650 Switch | 87
Connecting AC Power to an EX4650 Switch | 88
Connecting DC Power to an EX4650 Switch | 90
Connecting Earth Ground to an EX4650 Switch
To connect earth ground to a switch:
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the switch
is mounted.
2. Place the grounding lug attached to the grounding cable over the protective earthing terminal. See
Figure 35 on page 87.

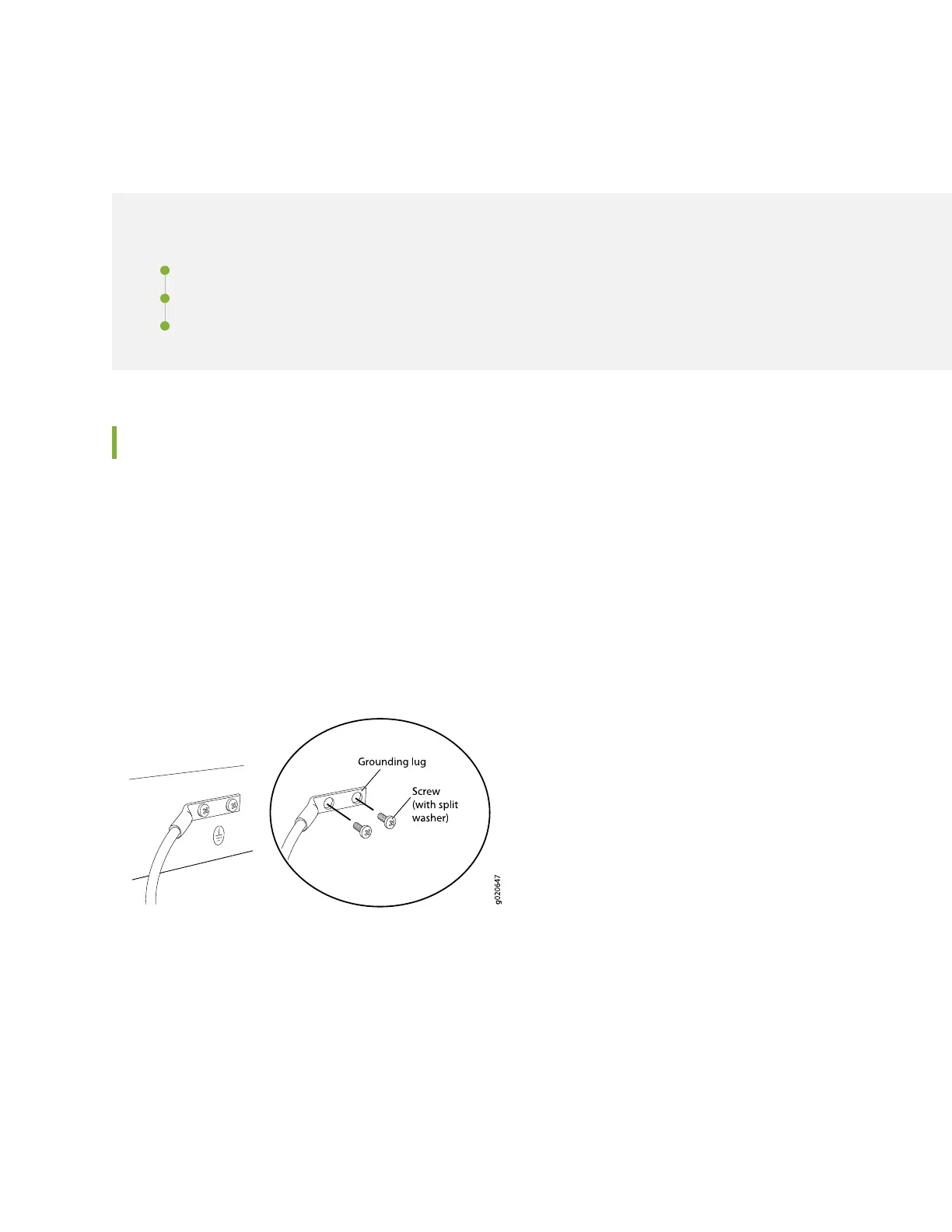

Figure 35: Connecting a Grounding Cable to an EX4650 Switch
3. Secure the grounding lug to the protective earthing terminal with the washers and screws.
4. Dress the grounding cable and ensure that it does not touch or block access to other switch components.
87
