NOTE: If you ordered a router transport kit, see “Unpack the Router
Transport Kit” on page 28 for instructions on how to unpack and install
the router transport kit.
14. Save the shipping crate cover, pallet, and packing materials in case you need to move
or ship the router at a later time.
Remove Components
The router might have field replacement units (FRUs) installed. Remove these FRUs
from the MX2020 router before installing the router into a rack or cabinet (see
Figure 8 on page 17, Figure 9 on page 18, and Figure 10 on page 20).

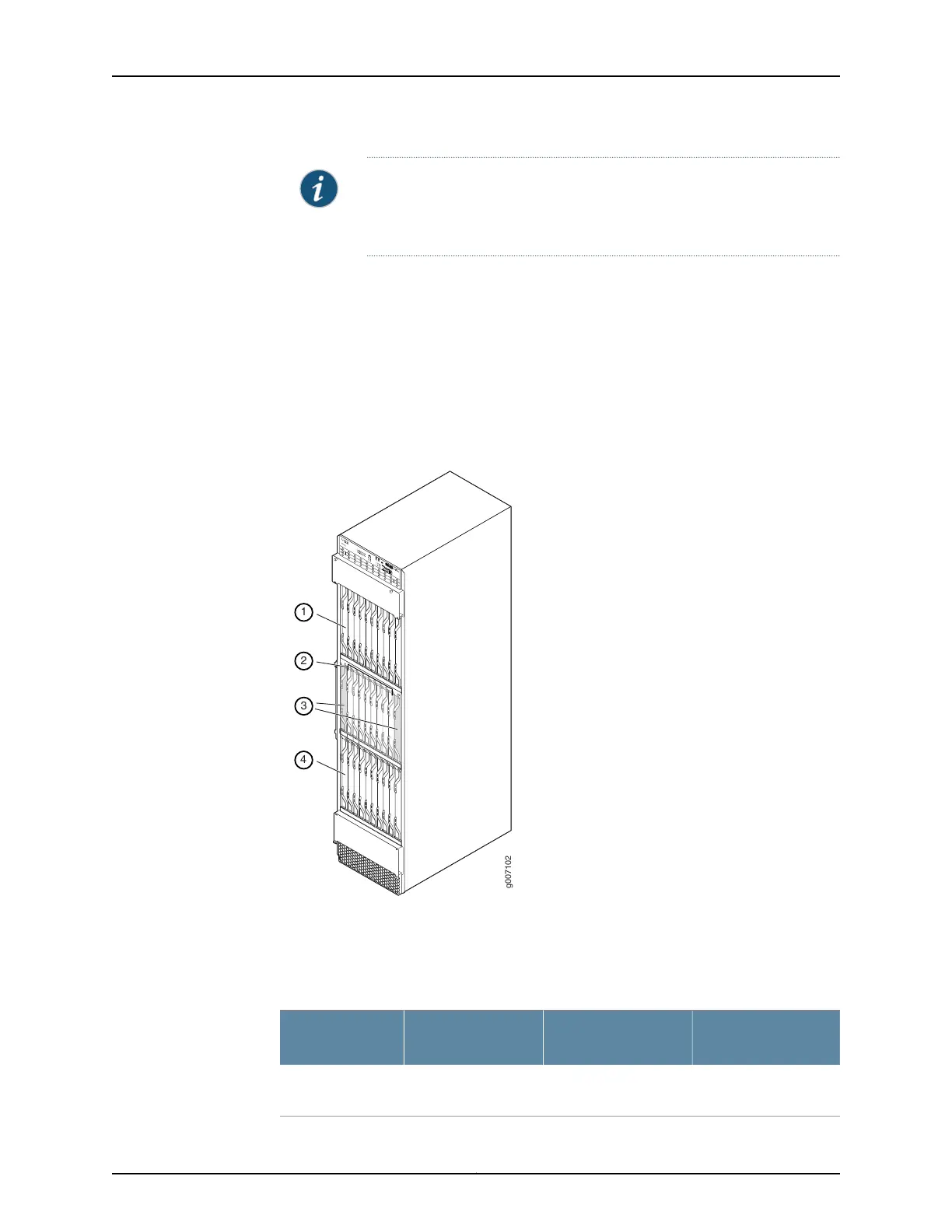

Figure 8: Components to Remove from the Front of the MX2020 Router
g007102
RE0
RE1
MASTER
ONLINE
OFFLINE
PSM
1
2
3
4
5
6
7
8
0
10
11
12
13
14
15
16
17
9
MX2200
LC
CB-RE
LC
SFB
10
0
0
11
0
1
12
1
2
13
2
3
14
3
4
15
4
5
16
5
6
17
6
7
18
7
8
19
1
9
LC
CB-RE
LC
SFB
1
4
3
2
Remove field replacement units (FRUs) from the front of the MX2020 router before you
install the router. See Table 2 on page 17 for information about MX2020 router
components.
Table 2: Components to Remove from the Front of the MX2020 Router
Number of FRUsSlots
Component
DescriptionComponent No.
1010 through 19 (top)MPCs with ADCs and
MICs (top)
1
17Copyright © 2015, Juniper Networks, Inc.
Remove Components
