Step 6: Connect External Devices and Line Card Cables

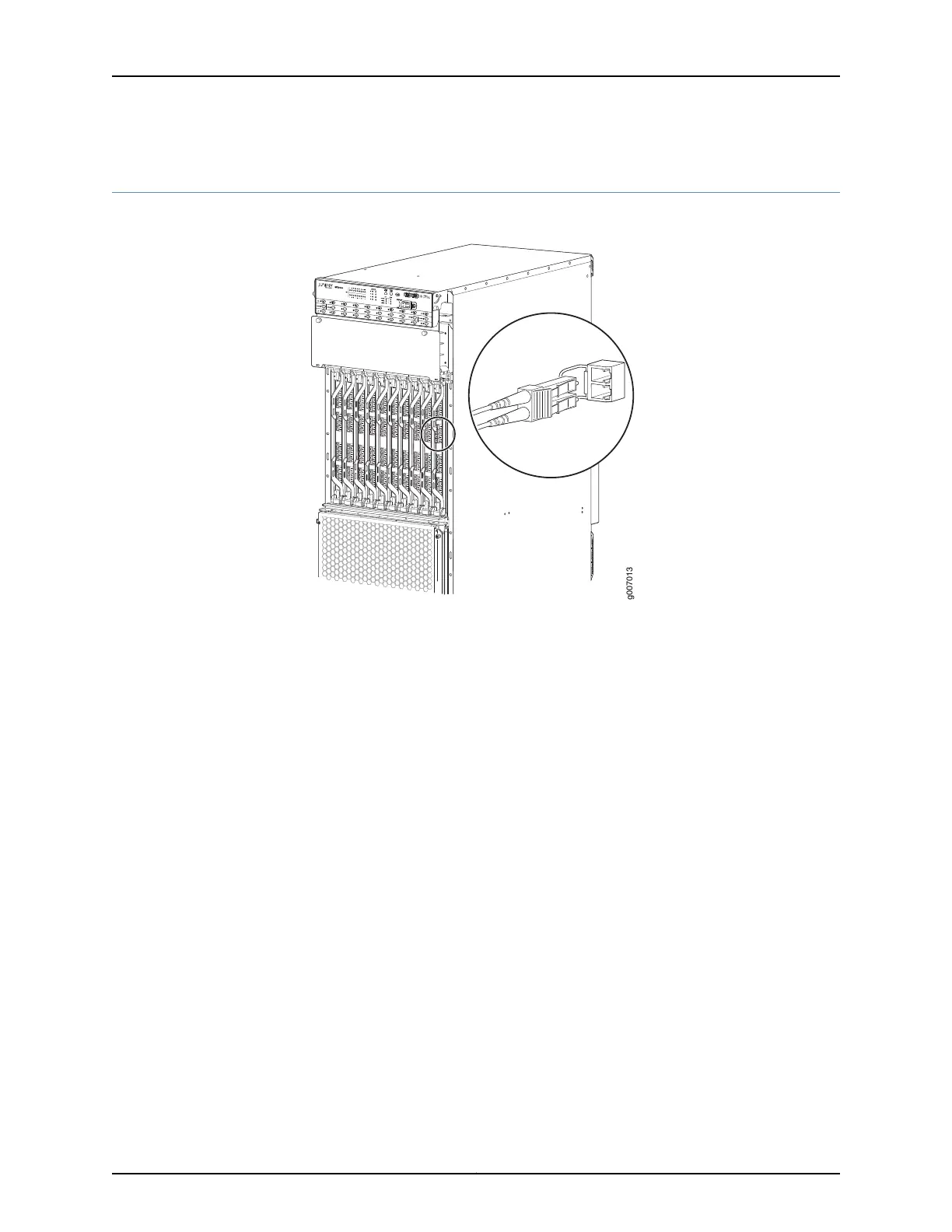

Figure 31: Connecting External Devices and MPC Cables
19
0
g007013
10
11
12
13
14
15
16
17
18
•
Connect to a Network for Out-of-Band Management on page 45
•
Connect a Management Console on page 45
•
Connect the Line Card Cables on page 45
Connect to a Network for Out-of-Band Management
1. Turn off the power to the management device.
2. Plug one end of an RJ-45 Ethernet cable into the ETHERNET port on the CB-RE.
3. Plug the other end of the cable into the network device.
Connect a Management Console
1. Turn off the power to the management device.
2. Plug one end of an RJ-45 Ethernet cable into the CONSOLE or AUX port on the CB-RE.
3. Plug the female DB-9 adapter end of the cable into the device's serial port.
Connect the Line Card Cables
1. Have ready a length of the type of cable used by the MPCs or MICs. For cable
specifications, see the MX Series Interface Module Reference.
2. If the cable connector port is covered by a rubber safety plug, remove the plug.
