Electrical connection
Operating Instructions for Powador .-. TL_EN Page
EN
Authorised electrician
Electrical connection
DANGER
Lethal voltages are still present in the terminals and cables of the inverter even after the
inverter has been switched o and disconnected.
Severe injuries or death will occur when touching the cables and terminals in the inverter.
Only appropriately qualied and authorised electricians may open and install the inverter.
The inverter must be mounted in a xed position before being connected electrically.
› Observe all safety regulations and current technical connection specications of the responsible
power supply company.
› Disconnect the AC and DC sides.
› Secure both sides against being inadvertently switched back on.
› Ensure that the AC and DC sides are completely isolated and voltage free.
› Connect the inverter only after the aforementioned steps have been taken.
. Opening the unit
Open connection area
ඣ You have completed assembly.
. Unlock the two door locks with the control cabinet key.
. Open the doors.
. Remove the cover of the connection area.
» Make the electrical connections.
. Lay the electrical lines
The pre-punched perforations on the side-mounted housing base enable all electrical lines to be inserted properly
in the interior of the inverter.

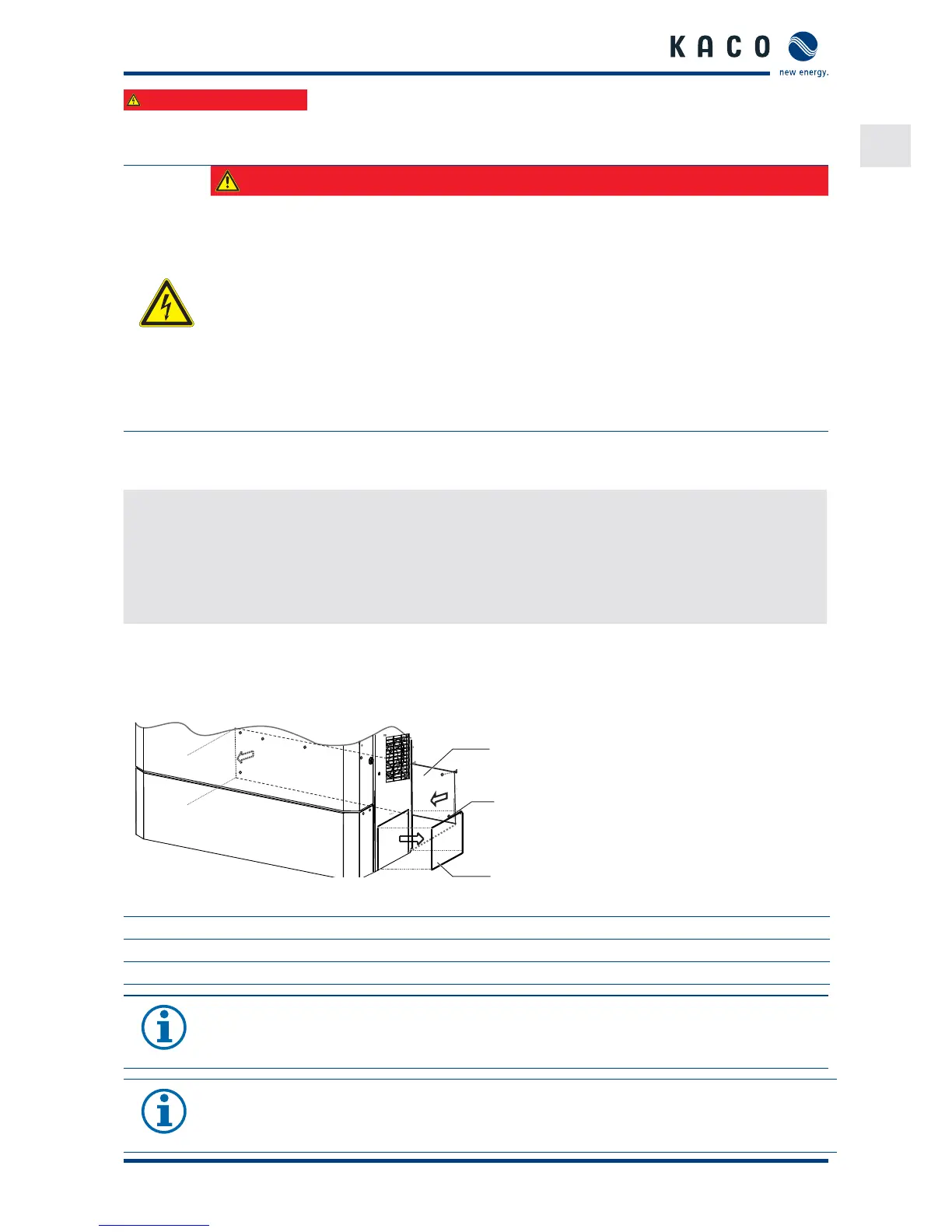

Figure : Perforation on the housing base /rear plinth panel
Key
1 Plinth panel (optional) 3 Pre-punched perforation (for cable duct [72 x 110 mm])
2 Fixing screw (8x) (optional)
NOTE
If the device is going to be installed outdoors, we recommend that an additional plinth panel is tted
in the socket area at the back end of the housing. (accessory item from KACO new energy)
NOTE
Damaged seal labels will render the warranty invalid immediately.
In the event of third-party responsibility, contact your installer and our customer service immediately.
