3.5.5 Dimensions liquid cooler built-in version with stainless steel tube
340
13,5
934
300
Ø12
224
347,5
74
960
36,5
1010
Housing P
Weight 96 kg
Dimensions All dimensions in mm
Optional Functional nut (=> Connections to the coolant)

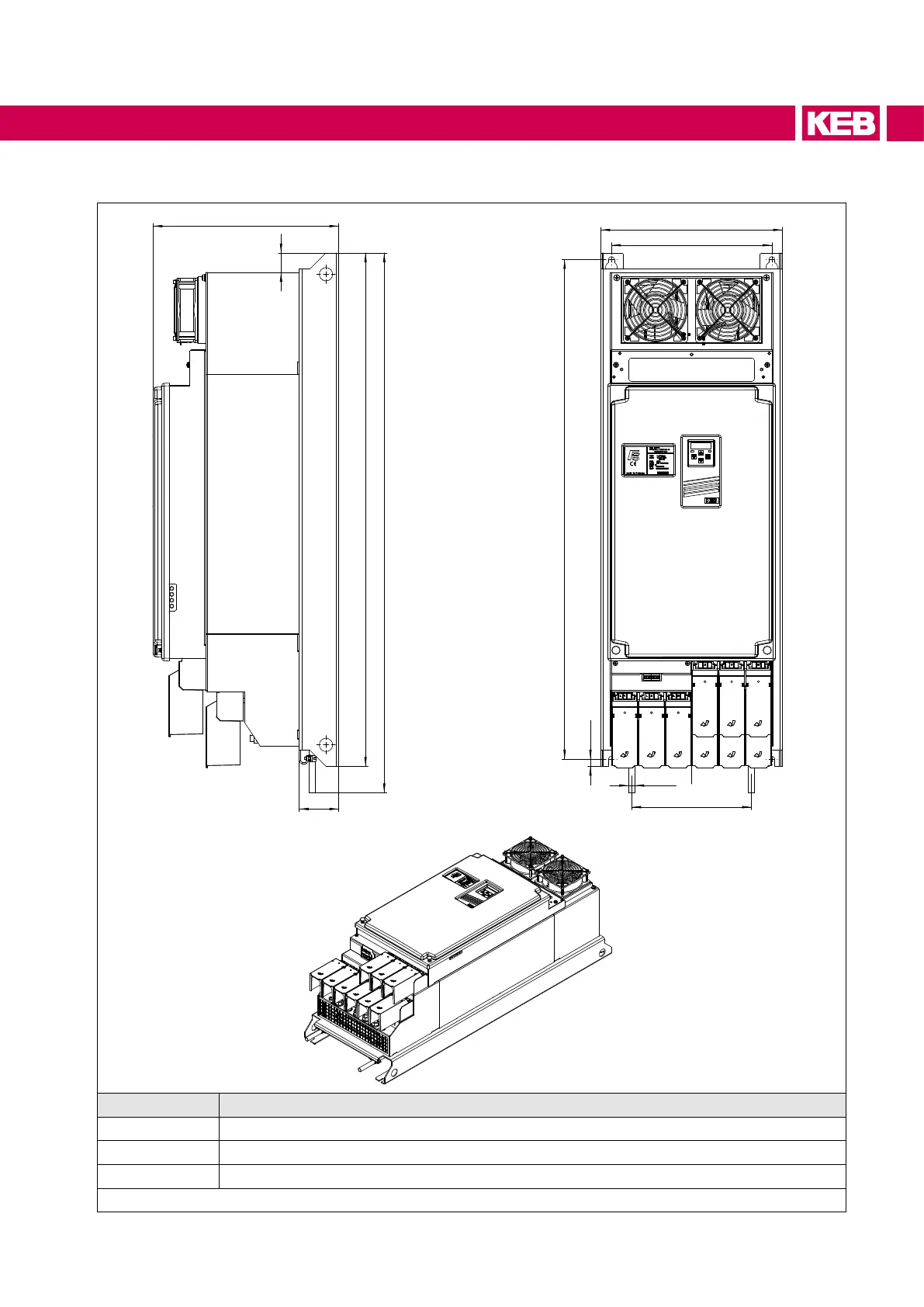

Figure 6: Dimensions liquid cooler built-in version with stainless steel tube
45
DIMENSIONS AND WEIGHTS
