10.4 Power dissipation of the 690V class at rated operation

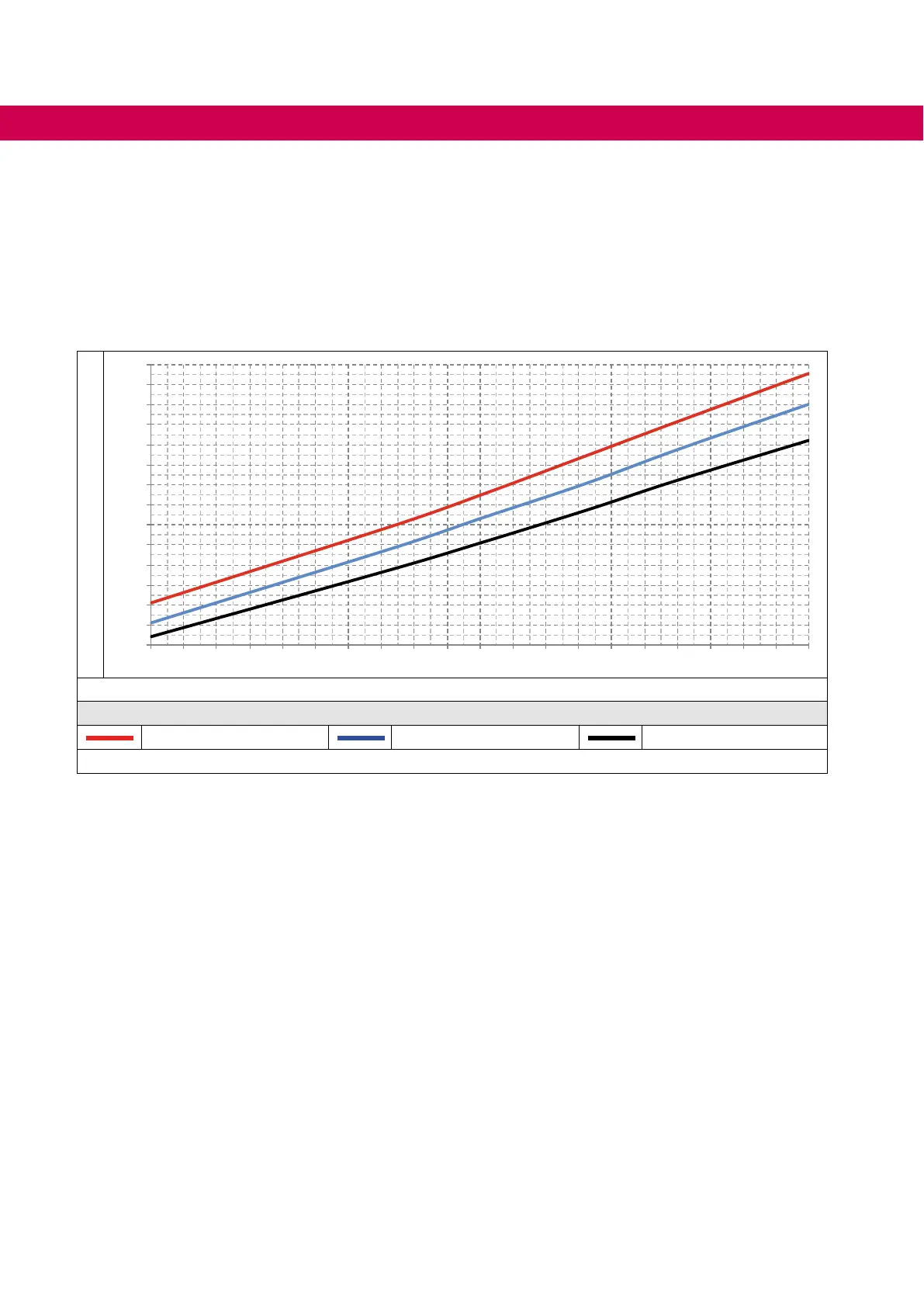

The following diagram shows the total power dissipation as a function of the output cur-
rent per module at
• 50 Hz output frequency
• 25 °C ambient temperature
10.4.1 Power dissipation at 2 kHz switching frequency
Total power dissipation (Pv) in kW
1 ,50
1 ,75
2 ,00
2 ,25
2 ,50
2 ,75
3 ,00
3 ,25
3 ,50
3 ,75
4 ,00
4 ,25
4 ,50
4 ,75
5 ,00
1 50 160 170 180 190 200 210 220 230 2 40 250 260 270 280 290 300 310 320 3 30 340 350
Output current (Iout) in A
Legend
690 V + 10 % 690 V 690 V - 10 %
Figure 42: Power dissipation at 2 kHz switching frequency 690V class
98
