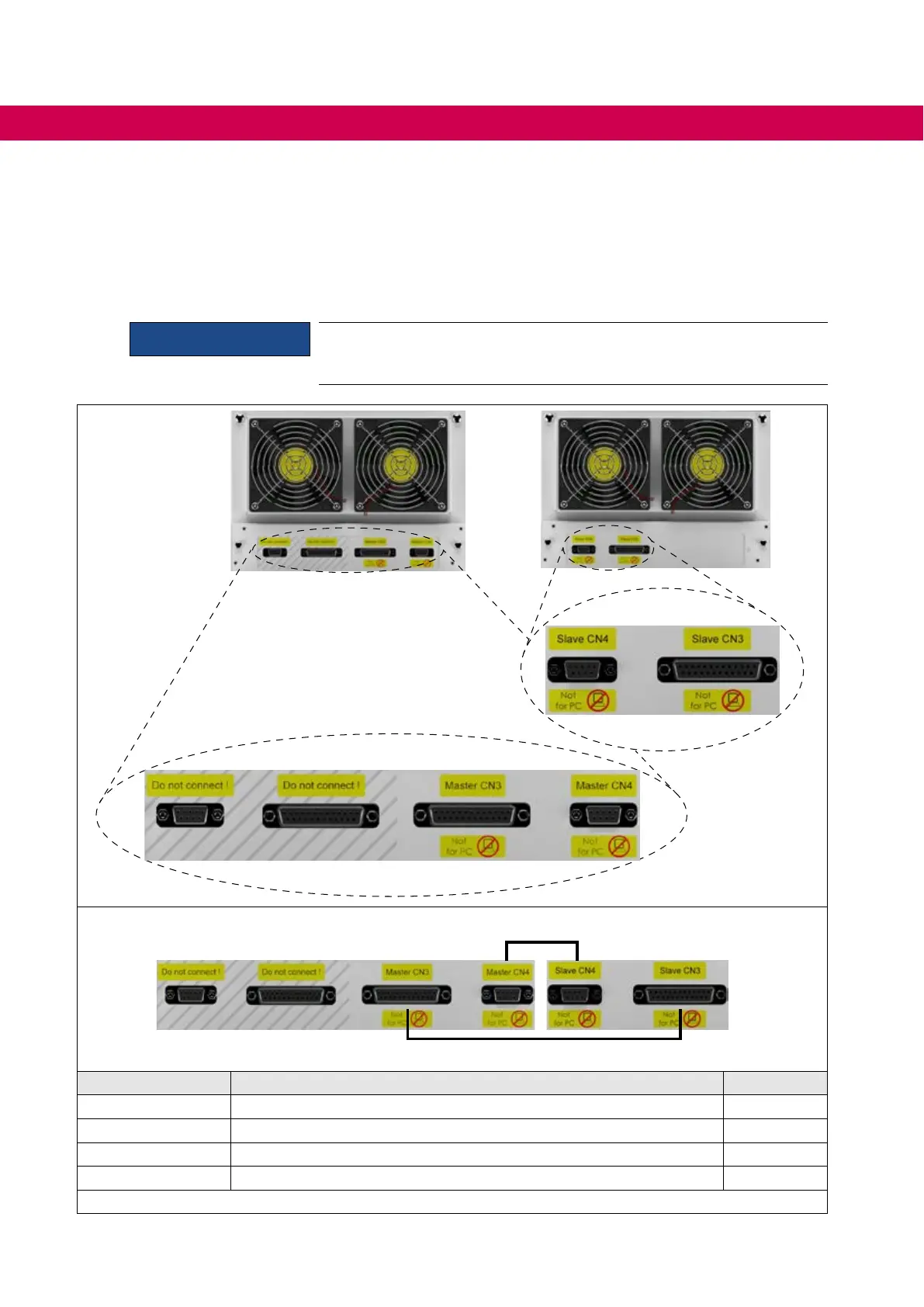

6.9 Connection of the master / slave wiring
6.9.1 Connection master / slave
• Make sure that the SUB-D connection is connected correctly.
• Tighten SUB-D connectors.
ATTENTION
Do not ground SUB-D cable between master and slave !
Master
Slave
P0F5T09-0047
P0F5T09-0046
Material number Type Length in m
P0F5T09-0046 SUB-D plug 9-pole (contained in scope of supply) 0.75
P0F5T09-0047 SUB-D plug 25-pole (contained in scope of supply) 0.75
P0F5T09-0031 SUB-D plug 9-pole (optional) 1.0
P0F5T09-0048 SUB-D plug 25-pole (optional) 1.0
Figure 24: Connection master / slave
