P0F5T09-0046
P0F5T09-0047
Master Slave

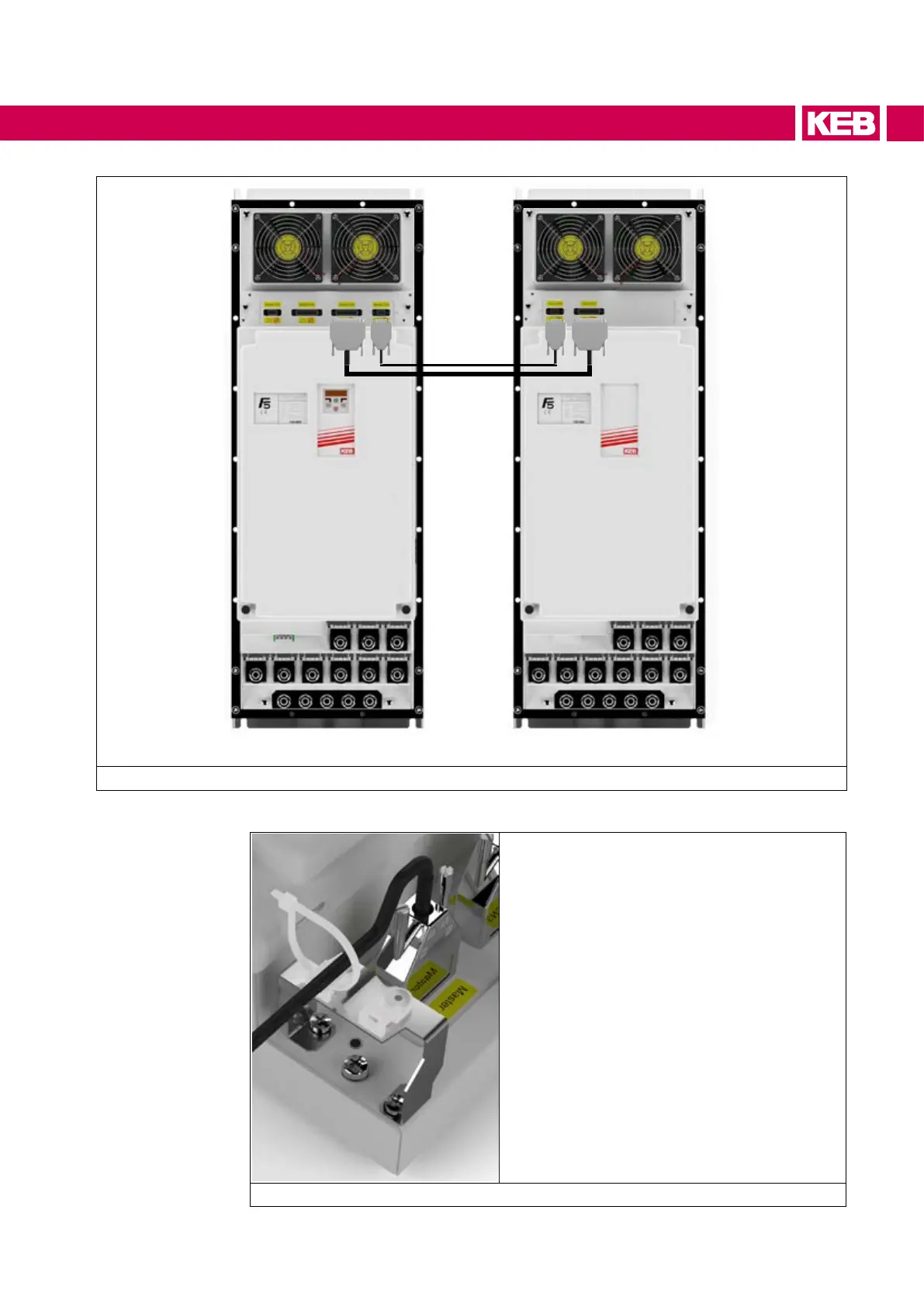

Figure 25: Master / slave connections
The connection cables can be attached to the
supplied cable clamps using cable ties.
Figure 26: Cable clamps master / slave connections
79
ELECTRICAL INSTALLATION
