6.9.2 Connection master / slave / slave
ATTENTION
Do not ground SUB-D cable between master and slave !
MasterSlave 2 Slave 1
P0F5T09-0047
P0F5T09-0046
P0F5T09-0046
P0F5T09-0047
Material number Type Length in m
P0F5T09-0046 SUB-D plug 9-pole (contained in scope of supply) 0.75
P0F5T09-0047 SUB-D plug 25-pole (contained in scope of supply) 0.75
P0F5T09-0031 SUB-D plug 9-pole (optional) 1.0
P0F5T09-0048 SUB-D plug 25-pole (optional) 1.0

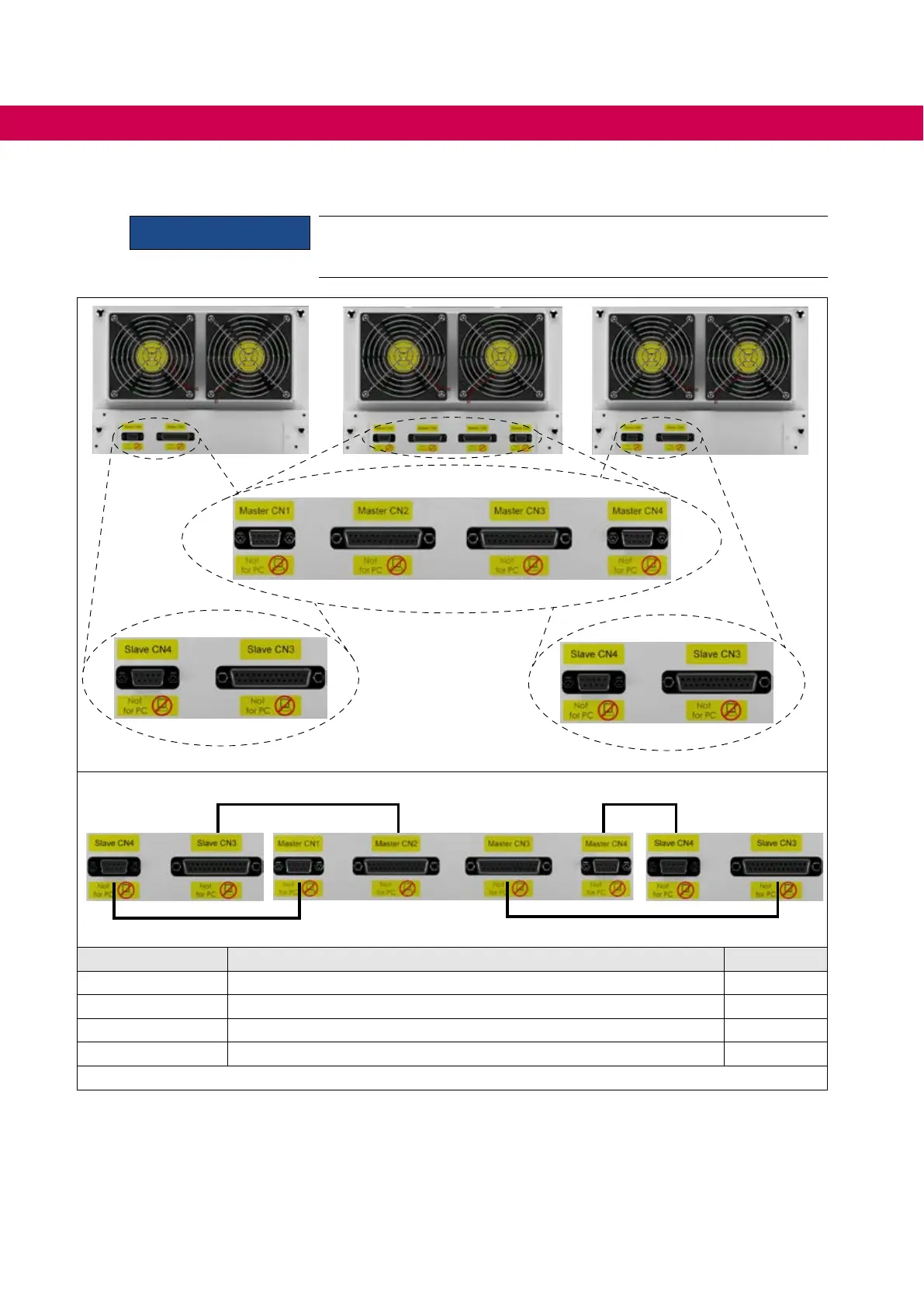

Figure 27: Connection master / slave / slave
80
ELECTRICAL INSTALLATION
